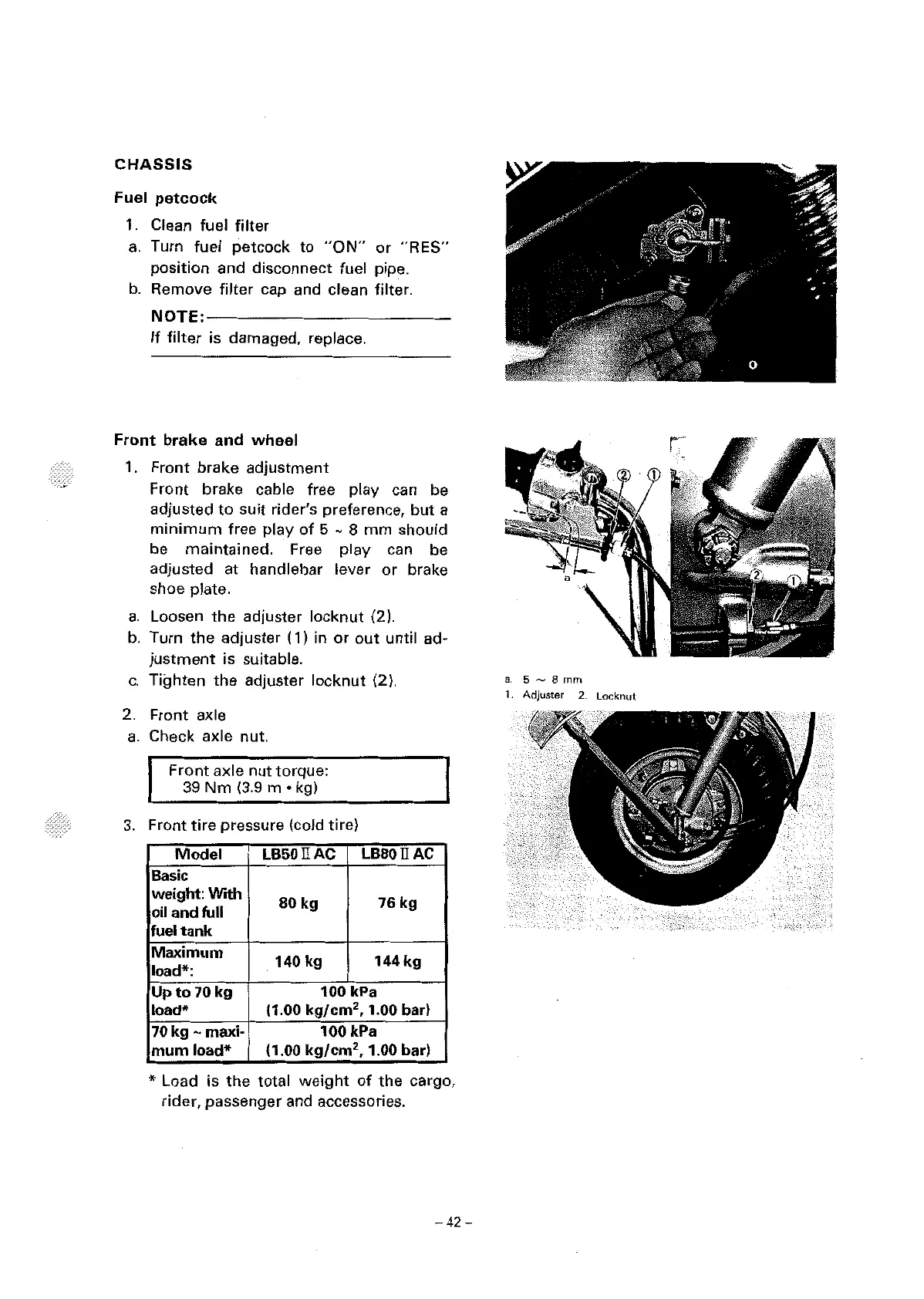

CHASSIS
Fuel petcock
1. Clean fuel filter
a. Turn fuel petcock to "ON" or "RES"
position and disconnect fuel pipe.
b. Remove filter cap and clean filter.
NOTE:-----------
lf filter is damaged, replace.
Front brake and wheel
1. Front brake adjustment
Front brake cable free play can be
adjusted to suit rider's preference, but a
minimum free play of 5 - 8 mm should
be maintained. Free play can be
adjusted at handlebar lever or brake
shoe
plate.
a. Loosen the adjuster locknut (2).
b. Turn the adjuster ( 1) in or out until ad-
justment is suitable.
c. Tighten the adjuster locknut (2).
2. Front axle
a. Check axle nut.
Front axle nut torque:
39 Nm (3.9 m • kg)
3. Front tire pressure (cold tire)
Model LB50IIAC
LBSOII AC
Basic
weight: With
SO kg 76 kg
oil and full
fuel tank
Maximum
140 kg 144 kg
load*:
Upto 70kg 100 kPa
load*
(1.00 kg/cm
2
, 1.00 bar)
70kg- maxi-
100 kPa
mum load*
(1.00 kg/cm
2
, 1.00 bar)
* Load is the total weight of the cargo,
rider, passenger and accessories.
-42-
a. 5 ,.., 8 mm
1. Adjuster 2. Locknut
