Yamaha LB50IIAC - Yamaha Model Features

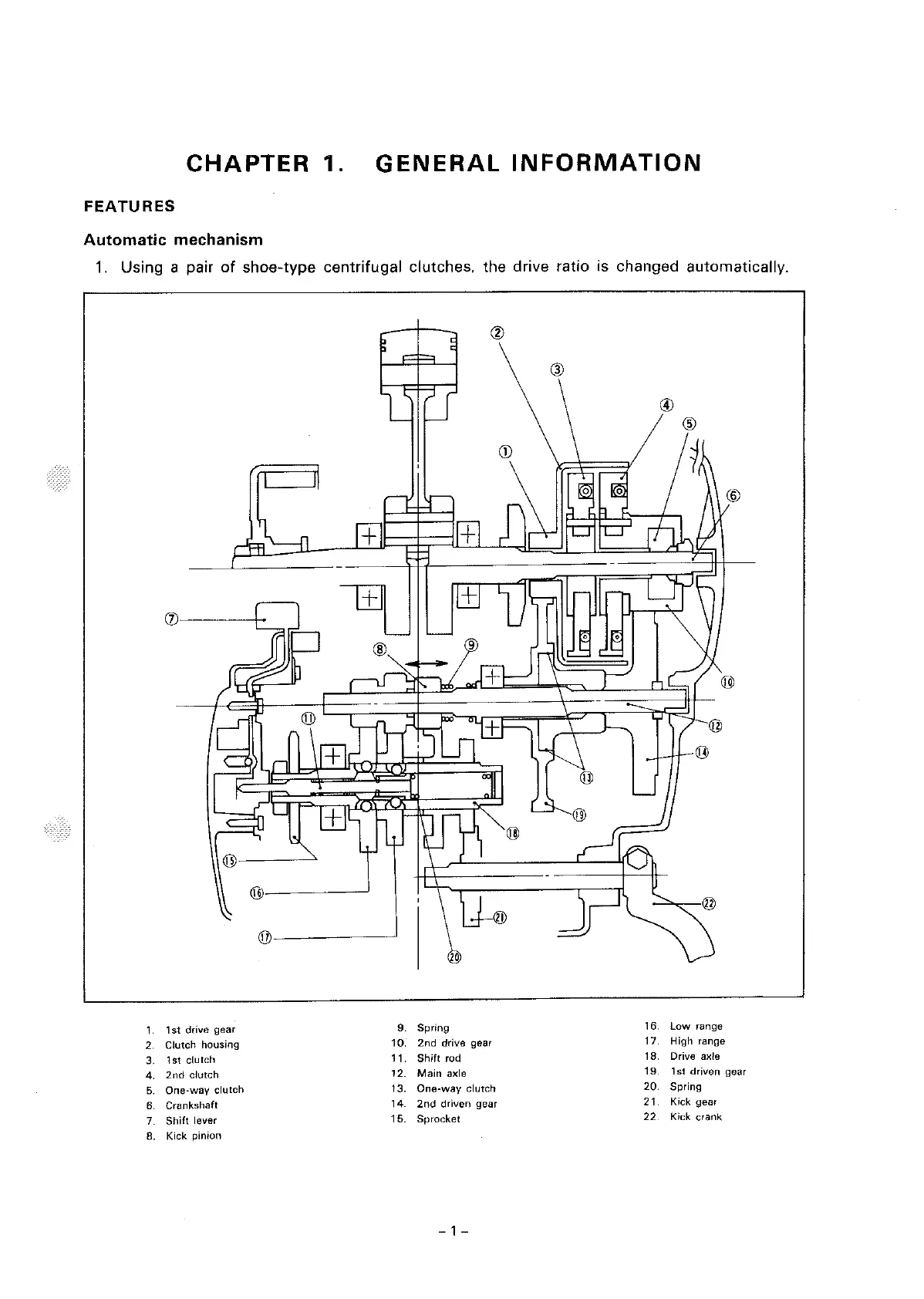

CHAPTER 1.
GENERAL INFORMATION
FEATURES
Automatic mechanism
1. Using a pair of shoe-type centrifugal clutches. the drive ratio is changed automatically.
®
@-------'
®
©-----~
1
1st drive gear
9. Spring
16.
low range
2.
Clutch housing
10:
2nd drive gear
17. High range
3.
1st clutch
11. Shift rod
18. Drive axle
4.
2nd clutch
12. Main axle
19. 1st driven gear
5.
One-way clutch
13. One-way clutch
20
Spring
6
Crankshaft
14
2nd driven gear
21. Kick gear
7.
Shift lever
15. Sprocket
22 Kick crank
8.
Kick pinion
- 1 -
