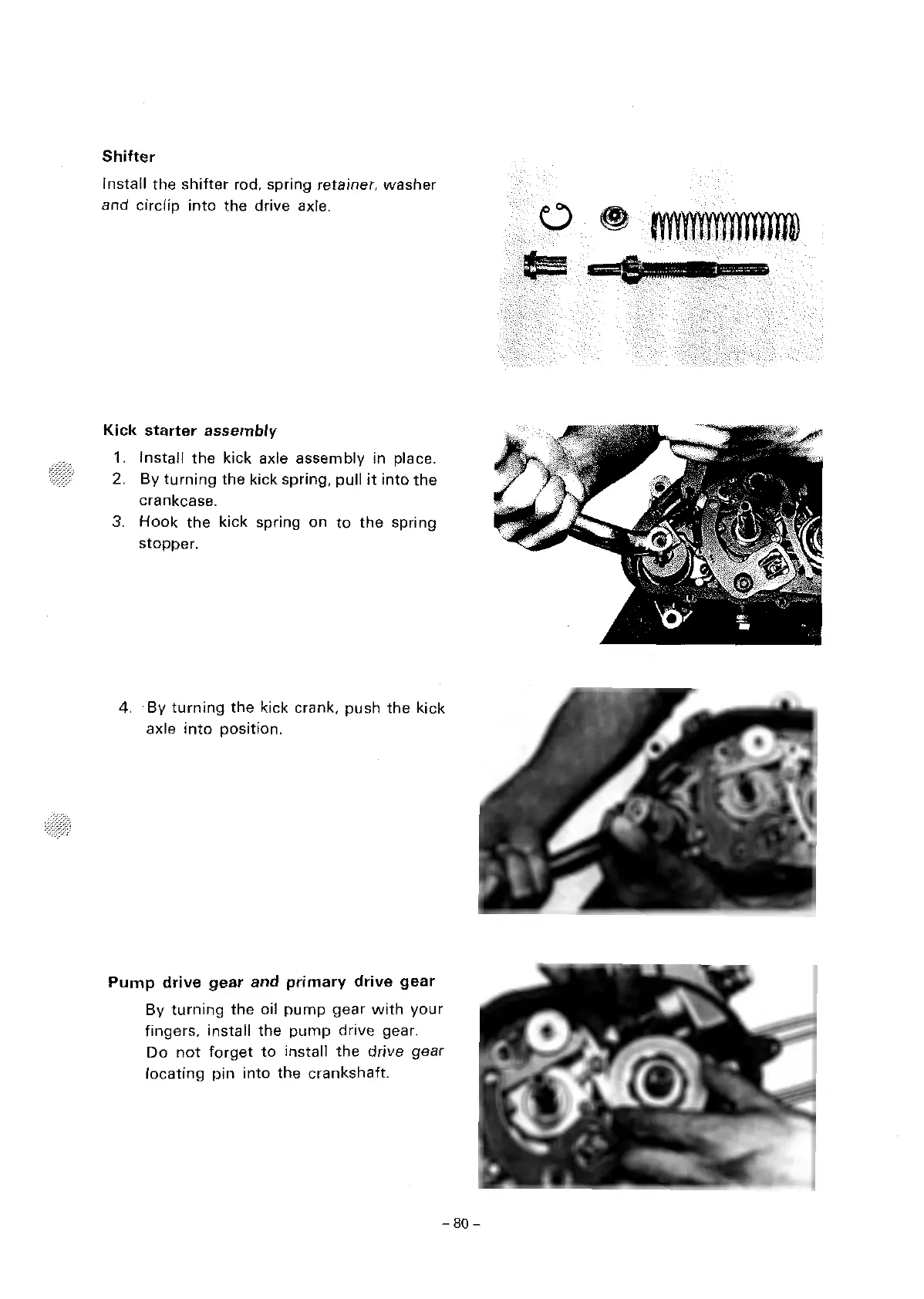

Shifter
Install the shifter rod. spring retainer. washer
and circlip into the drive axle.
Kick
starter assembly
1. Install the kick axle assembly in place.
2.
By turning the kick spring, pull it into the
crankcase.
3.
Hook the kick spring on to the spring
stopper.
4. ·
By turning the kick crank, push the kick
axle
into position.
Pump drive gear and primary drive gear
By turning the oil pump gear with your
fingers. install the pump drive gear.
Do not forget to install the drive gear
locating pin into the crankshaft.
-80-
