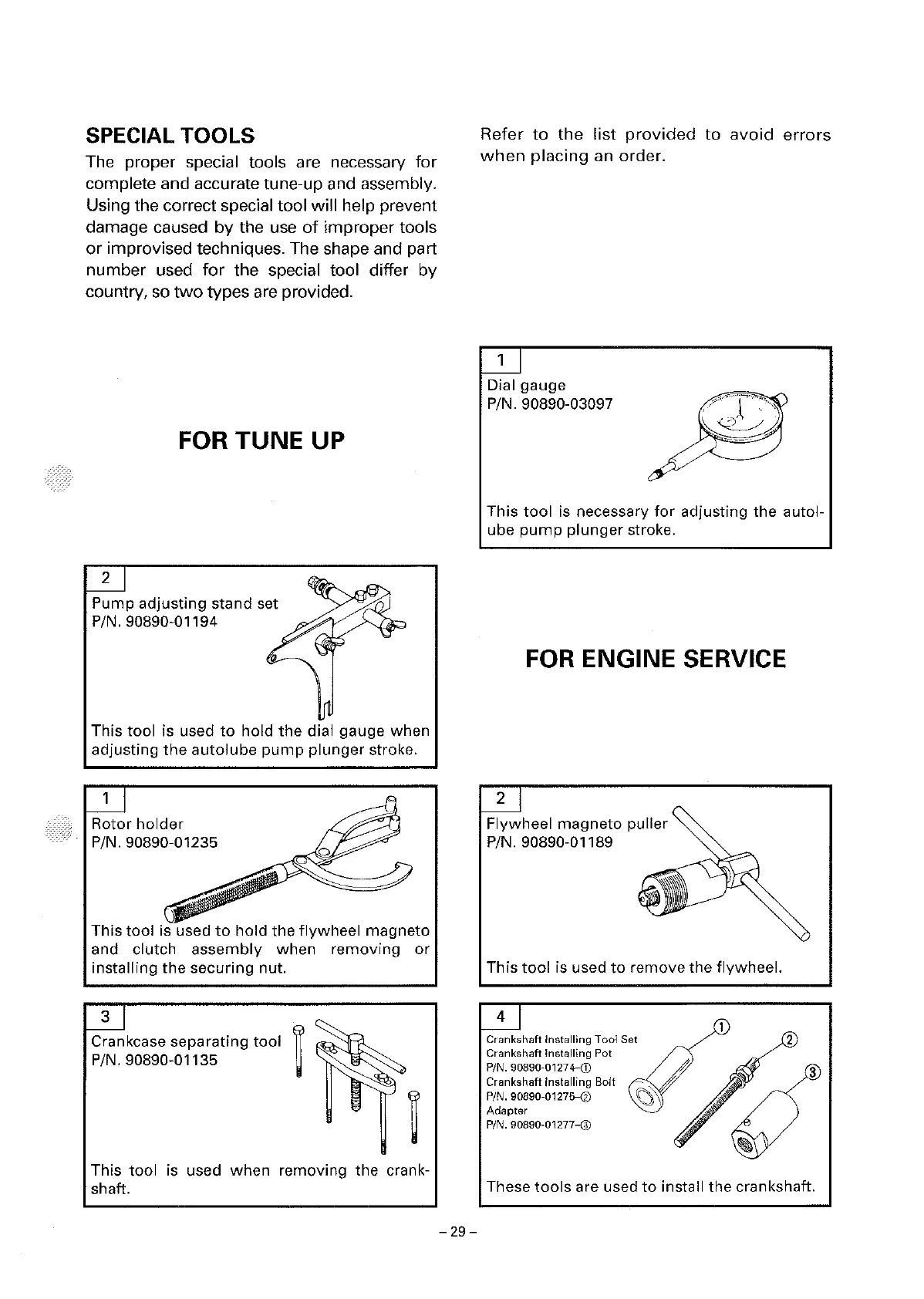

SPECIAL
TOOLS
The proper special tools are necessary
for
complete and accurate tune-up and assembly.
Using the correct special tool will help prevent
damage caused
by
the use
of
improper tools
or
improvised techniques. The shape and part
number used
for
the special tool differ by
country, so
two
types are provided.
FORTUNE
UP
Pump
adjusting
stand
set
P/N. 90890-01194
This
tool
is
used
to
hold
the
dial gauge when
adjusting
the
autolube
pump
plunger
stroke.
Rotor
holder
P/N. 90890-01235
This
tool
is used
to
hold
the
flywheel
magneto
and clutch
assembly
when
removing
or
installing
the
securing
nut.
Crankcase
separating
tool
f
P/N. 90890-01135
~
This
tool
is used
when
removing
the
crank-
shaft.
-29-
Refer to the list
provided
to avoid errors
when
placing
an
order.
Dial
gauge
P/N. 90890-03097
This
tool
is necessary
for
adjusting
the
autol-
ube
pump
plunger
stroke.
FOR
ENGINE SERVICE
Flywheel
magneto
puller
P/N. 90890-01189
This
tool
is used
to
remove
the
flywheel.
4
Crankshaft Installing Tool Set
Crankshaft Installing Pot
P/N. 90890-01274--G)
Crankshaft
Installing
Bolt
P/N. 90890-01275-(g) n.."0
''J
\
Adapter
P/N.
90890-01277-@
2
These
tools
are used
to
install
the
crankshaft.
