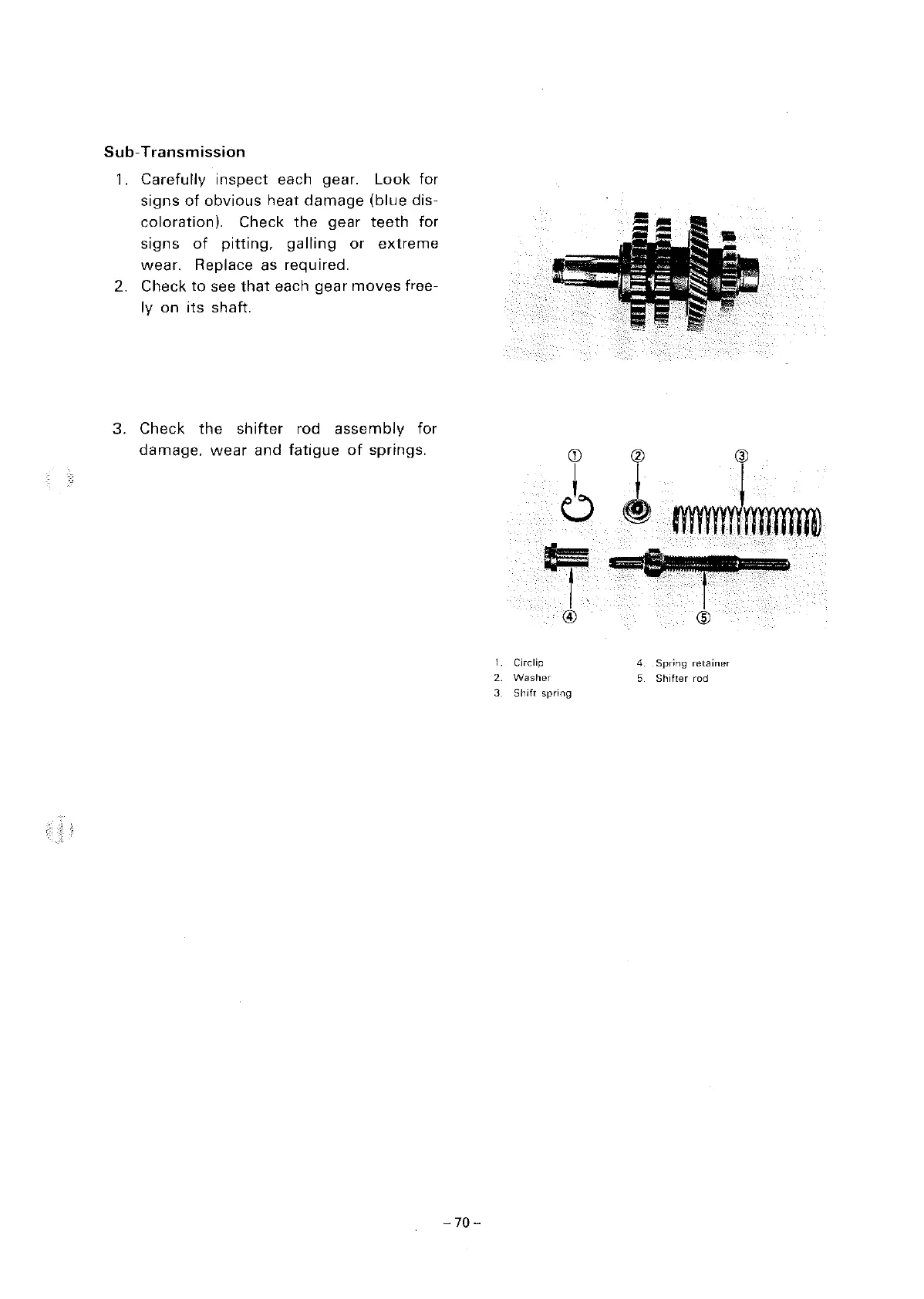

Sub-Transmission
1. Carefully inspect each gear. Look for
signs of obvious heat damage (blue dis-
coloration). Check
the gear teeth for
signs of pitting, galling or extreme
wear. Replace as required.
2. Check to see that each gear moves free-
ly on
its shaft.
3. Check the shifter rod assembly for
damage, wear and fatigue of springs.
-70-
G)
6
'
©
1. Circlip
2. Washer
3 Shift spring
® @
~·
I ,mn
r
®
4. Spring retainer
5 Shifter rod
