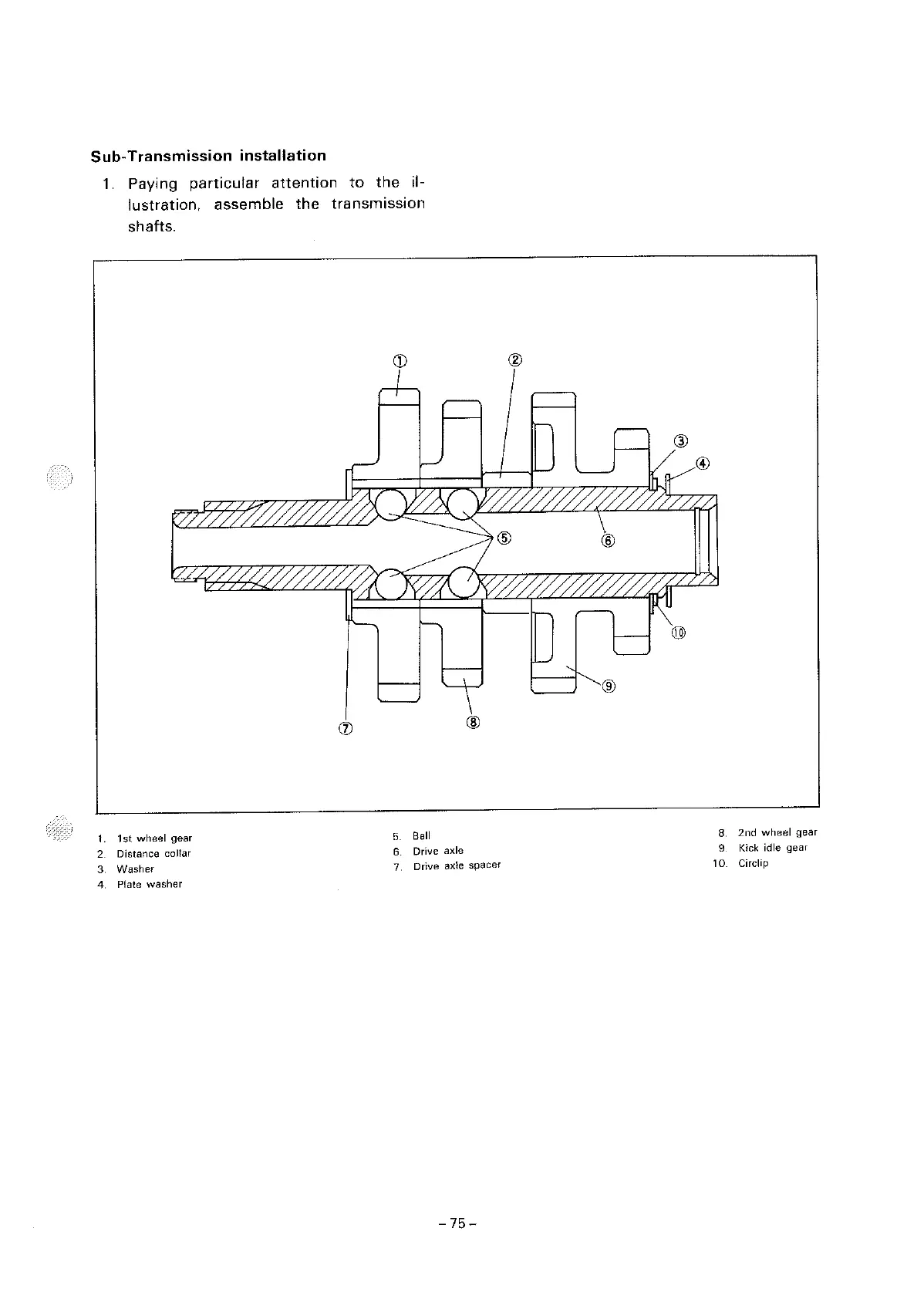

Sub-Transmission installation
1. Paying particular attention to the il-
lustration, assemble
the transmission
shafts.
(j)
1.
1st wheel gear
5.
Ball
@
2
Distance collar
6.
Drive axle
3
Washer
7
Drive axle spacer
4.
Plate washer
-75-
@
®
8.
2nd wheel gear
9
Kick idle gear
10
Circlip
