Yamaha LB50IIAC - Page 32

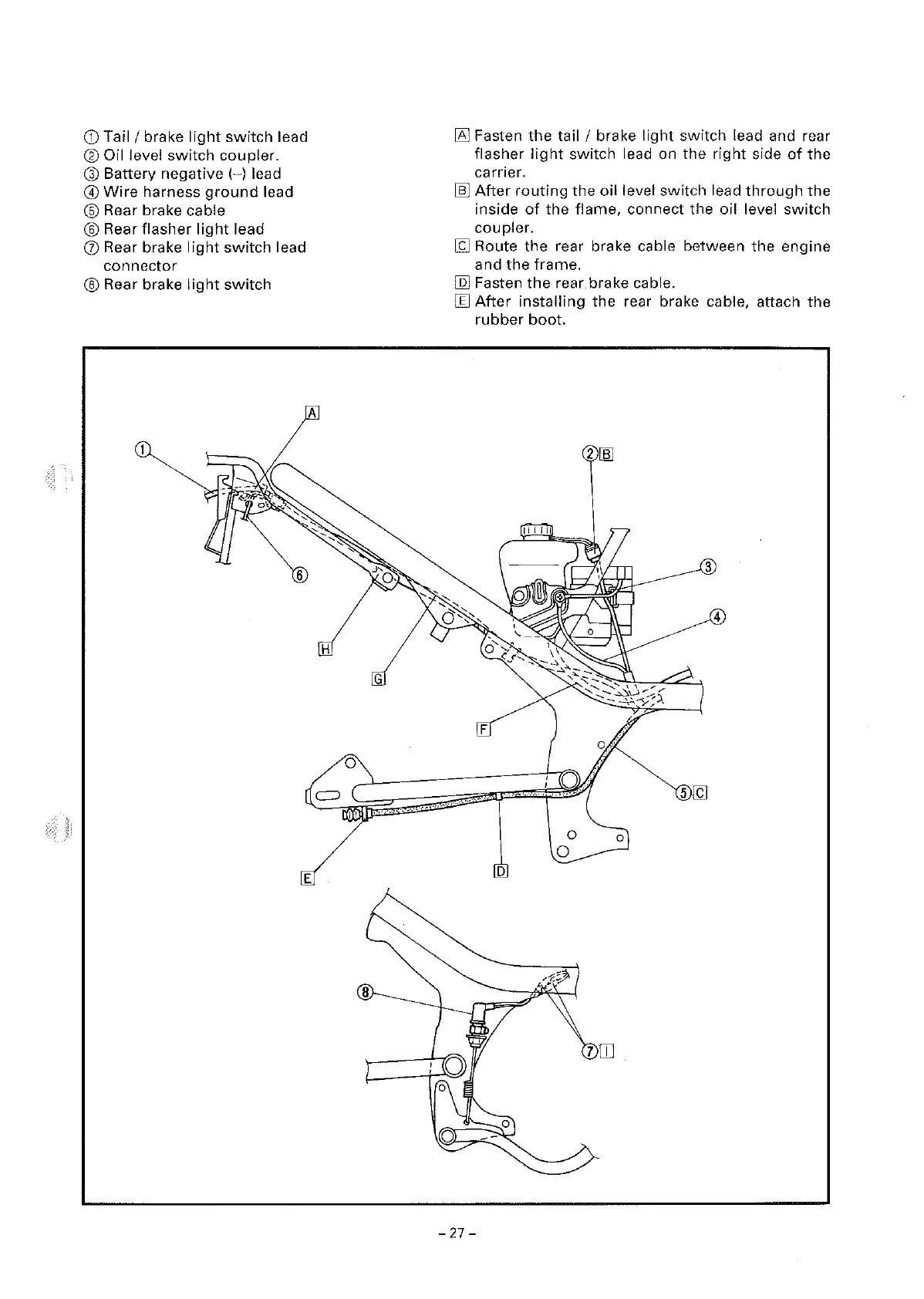

CD Tail I brake light switch lead
Cg) Oil level switch coupler.
@ Battery negative H lead
@ Wire harness ground lead
® Rear brake cable
® Rear flasher light lead
(!) Rear brake
light switch lead
connector
® Rear brake light switch
A
E
l6l Fasten the tail I brake light switch lead and rear
flasher
light switch lead on the right side of the
carrier.
[El] After routing the oil level switch lead through the
inside of the flame, connect the oil level switch
coupler.
IT;] Route the rear brake cable between the engine
and
the frame.
[]] Fasten the rear. brake cable.
III After installing the rear brake cable, attach the
rubber boot.
D
-27-
