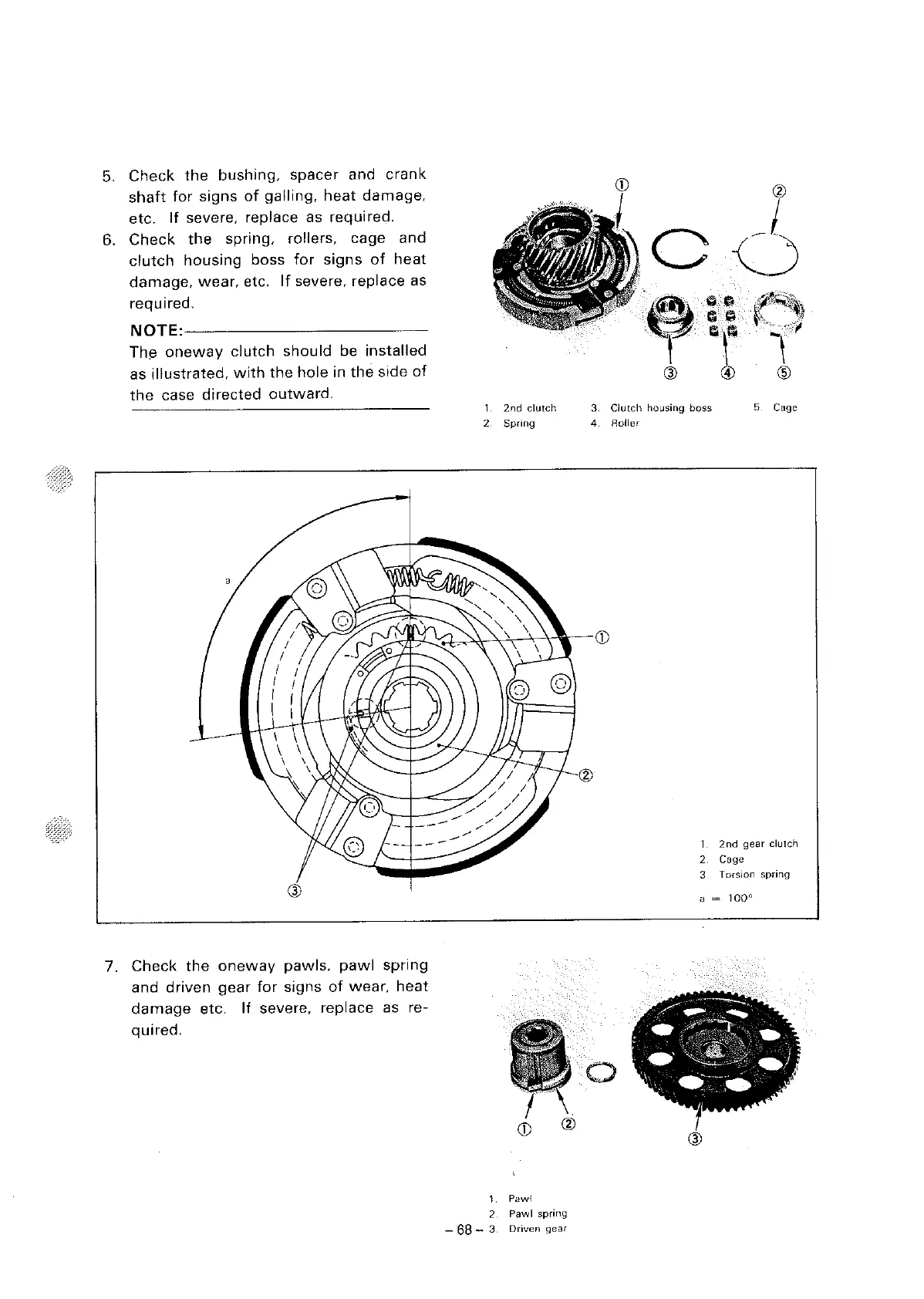

5. Check the bushing, spacer and crank
shaft for signs of galling, heat damage,
etc.
If severe, replace as required.
6. Check
the spring, rollers, cage and
clutch housing boss for signs of heat
damage, wear, etc. If severe, replace as
required.
NOTE:------------
The oneway clutch should be installed
as illustrated,
with the hole in the side of
the case directed outward.
@
7. Check the oneway pawls, pawl spring
and driven gear
for signs of wear, heat
damage etc. If severe, replace as re-
quired.
1 2nd clutch
2 Spring
(j)
Pawl
2 Pawl spring
- 68 - 3 Driven gear
(j) ®
'· c -. i
. (__)
·~·
e
. . I~
@
3. Clutch housing boss
5 Cage
4. Roller
1 2nd gear clutch
2 Cage
3 Torsion spring
a = 100°
0
@
