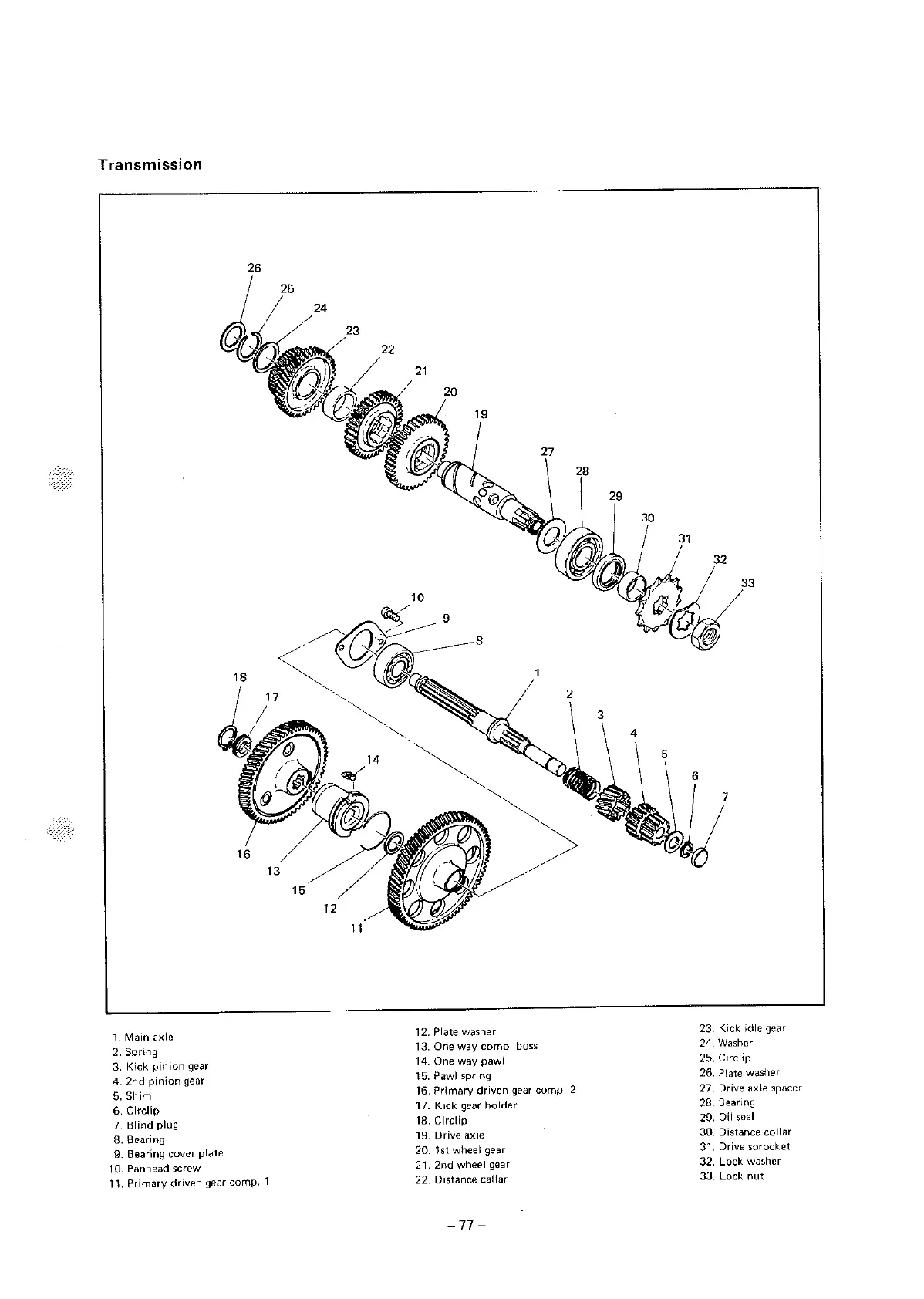

Transmission
26
33
2
3
4
~'
5
~
6
Jj
>
16
13
12
11
1. Main axle
12.
Plate washer
23. Kick idle gear
2.
Spring
13.
One way comp.
boss
24. Washer
3.
Kick
pinion gear
14.
One way pawl
25.
Circlip
4.
2nd pinion gear
15.
Pawl spring
26. Plate washer
5.
Shim
16.
Primary driven gear comp. 2
27.
Drive axle spacer
6.
Circlip
17.
Kick gear holder
28. Bearing
7.
Blind plug
18.
Circlip
29.
Oil seal
8.
Bearing
19.
Drive axle
30. Distance collar
9.
Bearing cover plate
20.
1st wheel gear
31.
Drive sprocket
10.
Panhead screw
21.
2nd wheel gear
32.
Lock washer
11.
Primary driven gear comp.
22.
Distance callar
33. Lock nut
-77-
