MG82CX/MG102C

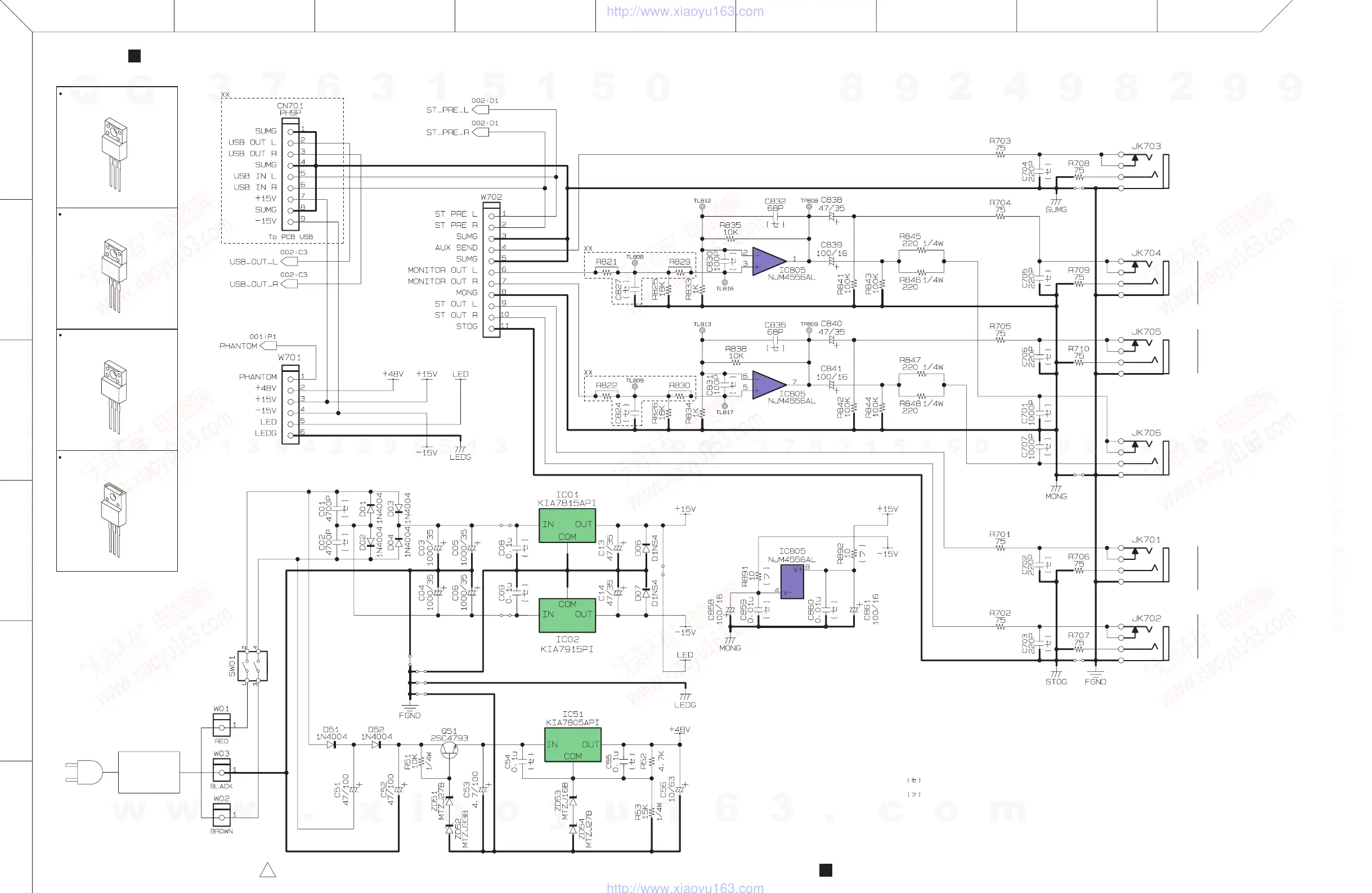

MAIN10 (JACK) CIRCUIT DIAGRAM (MG102C) 003
MAIN10 (JACK) CIRCUIT DIAGRAM (MG102C) 00314
28CC1-2001004880-3 1
AC POWER
ADAPTOR
PA-10
REGULATOR +15V
REGULATOR –15V
OP AMP
OP AMP
REGULATOR +5V
to MAIN10 (MAIN)
-W801
[+4dBu]
AUX SEND
L
R
<Page 17: G-8>
to MAIN10 (MAIN)
-W802
<Page 17: D-3>
: Not installed
（未実装）
（セラミックコンデンサー）
XX
: Ceramic Capacitor
[+4dBu]
MONITOR OUT
L
R
[+4dBu]
STEREO OUT
PHONES
[3mW @ 40ohms]
（不燃化カーボン抵抗）
: Frame Proof C. Resistor
KIA7815API-U/P (X4930A00)
REGULATOR +15V
MAIN10: IC01
1: INPUT
2: GND
3: OUTPUT
1
2
3
KIA7915PI-U/P (X4931A00)
REGULATOR –15V
MAIN10: IC02
1: COMMON
2: INPUT
3: OUTPUT
1
2
3
1
2
3
1: BASE
2:
COLLECTOR
3: EMITTER
2SC4793
(
VQ547300
)
TRANSISTOR
MAIN
10
: Q51
KIA7805API/P(X4928A00)
REGULATOR +5V
MAIN10: IC51
1: INPUT
2: GND
3: OUTPUT
1
2
3
