Yamaha PC4002 - Instructions for Connection of Speaker Cables

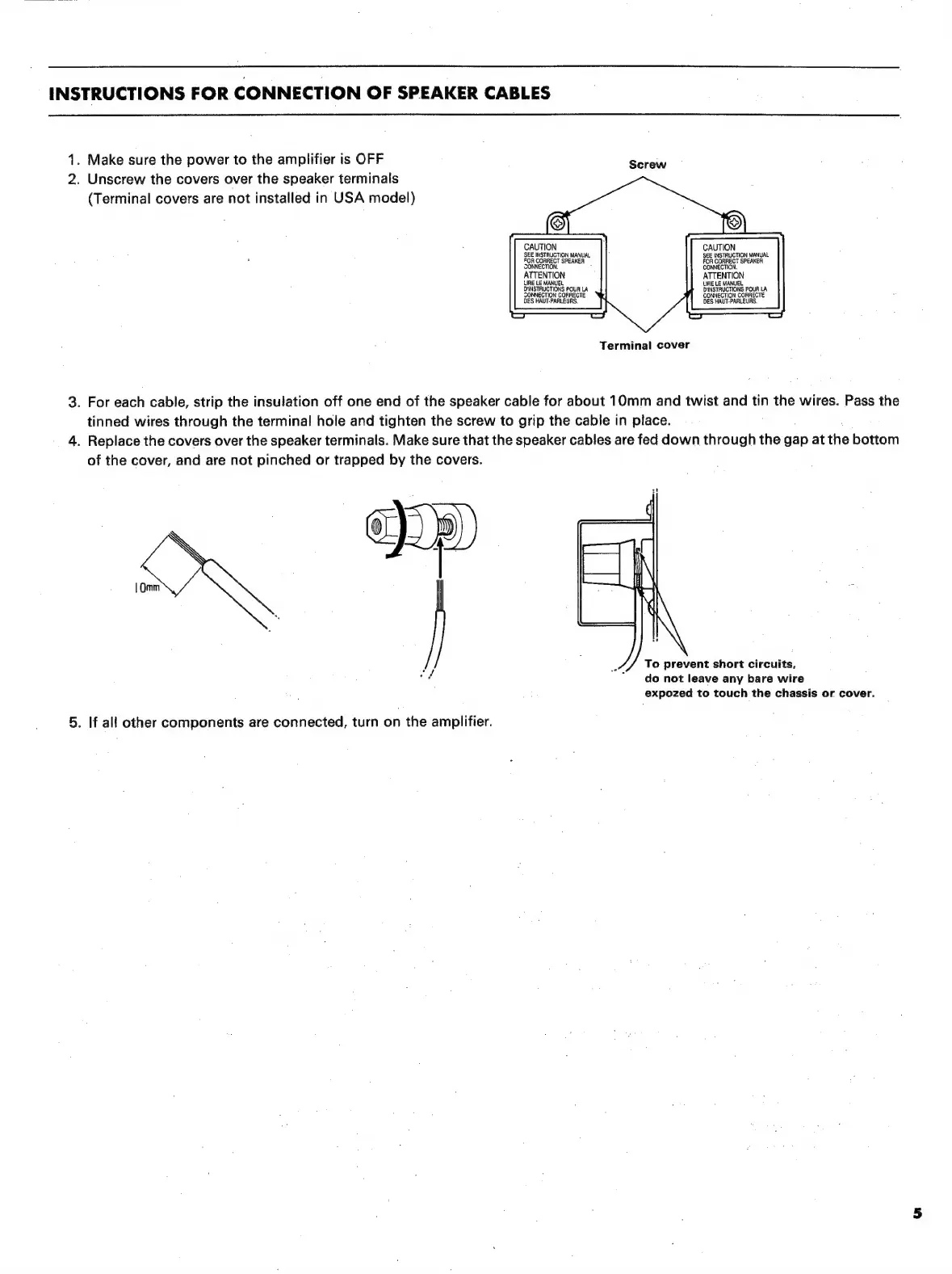

INSTRUCTIONS FOR CONNECTION OF SPEAKER CABLES
1. Make sure the power to the amplifier is OFF ССРС
2. Unscrew the covers over the speaker terminals
(Terminal covers are not installed in USA model)
CAUTION CAUTION
SEE INSTRUCTION un SEE INS N MANUAL
Son COR enone SPEAKER FOR Cod SPEAKER.
e CONNEC
ATTENTION ATTENTION
BINSTRUCTIONS POUR LA INSTRUCTIONS POUR LA
CONNECTION CORRECTE CONNECTION CORRECTE
OES HAUT-PARLEURS, DES HAUT-PARLEURS.
Terminal cover
3. For each cable, strip the insulation off one end of the speaker cable for about 10mm and twist and tin the wires. Pass the
tinned wires through the terminal hole and tighten the screw to grip the cable in place.
4. Replace the covers over the speaker terminals. Make sure that the speaker cables are fed down through the gap at the bottom
of the cover, and are not pinched or trapped by the covers.
cr
To prevent short circuits,
do not leave any bare wire
expozed to touch the chassis or cover.
5. |f al! other components are connected, turn on the amplifier.
