Periodic maintenance and adjustment
113
6. Slide the crankcase breather hose clamp
(crankcase side) up, and then disconnect
the crankcase breather hose from the en-
gine.
7. Lift up the air filter case, slide the crank-
case breather hose clamp (air filter case
side) down, disconnect the crankcase
breather hose from the air filter case, and
then remove the air filter case.
8. Disconnect the negative battery lead.
9. Replace the blown fuse with one of the
proper amperage.

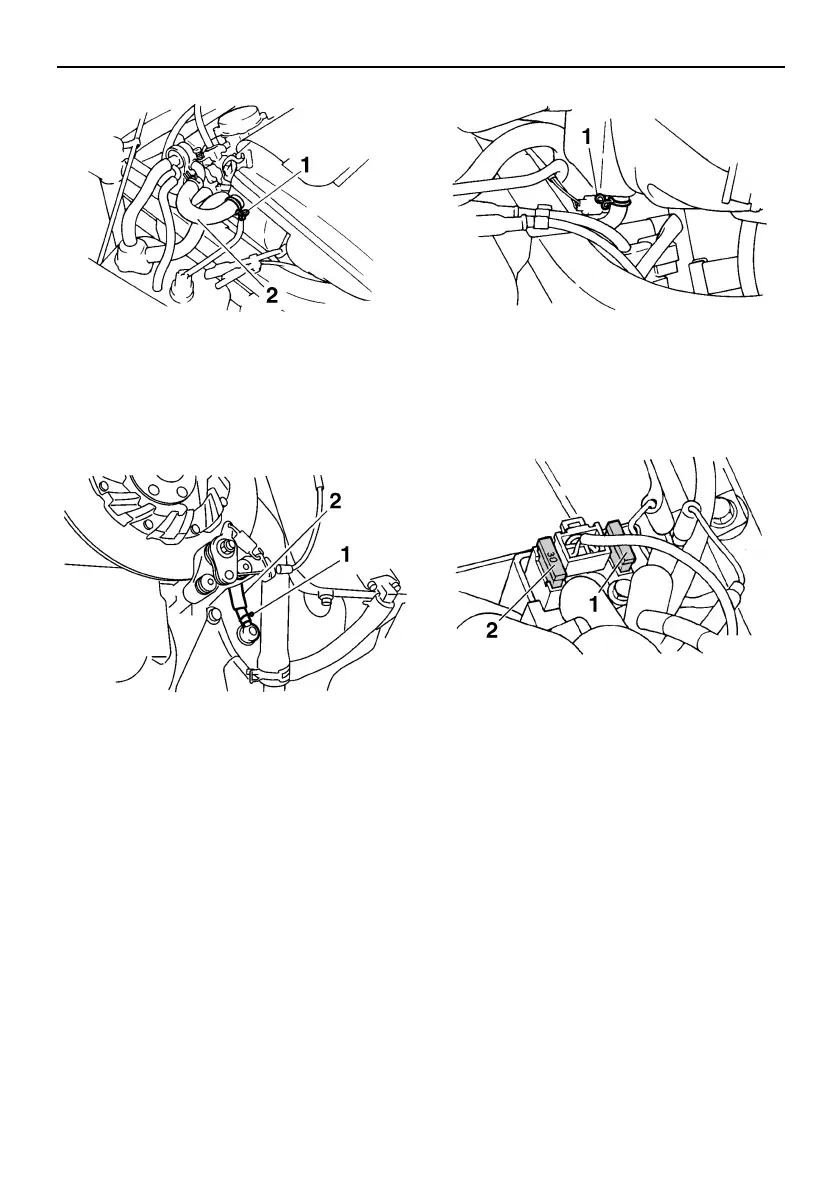

1. Oil tank breather hose clamp
2. Oil tank breather hose
1. Crankcase breather hose clamp (crankcase
side)
2. Crankcase breather hose
1. Crankcase breather hose clamp (air filter
case side)
1. Main fuse
2. Spare main fuse
U8HV11E0.book Page 113 Monday, April 23, 2012 9:34 AM
