Periodic maintenance and adjustment
114
10. Connect the negative battery lead.
11. Install the air filter case by reversing the
removal steps 3–7. NOTICE: Be sure to
connect the breather hoses securely
when installing the air filter case.
[ECS00641]
When installing the air filter case, connect the
crankcase breather hose to the air filter case
first, and then connect it to the engine.
12. Install the right side cover and close the
shroud.
If the fuse immediately blows again, ask a
Yamaha dealer to inspect the snowmobile.

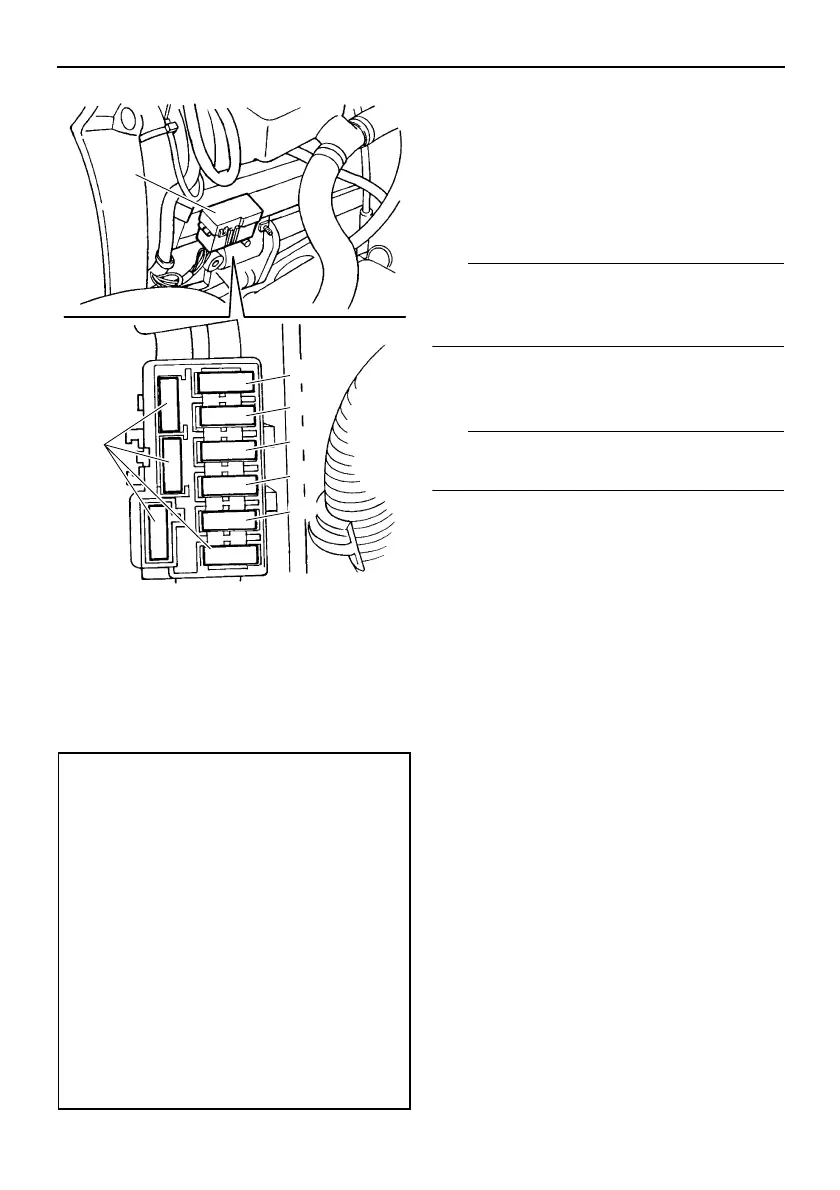

1. Fuse box
2. “HEAD” (headlight) fuse
3. “SIG” (signaling system) fuse
4. “DC TERM” (auxiliary DC jack) fuse
5. “C/W” (carburetor warmer) fuse
6. “IGN” (ignition) fuse
7. Spare fuse
Specified fuses:
Main fuse:
30.0 A
Spare main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Auxiliary DC jack fuse:
3.0 A
Carburetor warmer fuse:
20.0 A
Ignition fuse:
15.0 A
Spare fuses:
20.0 A, 15.0 A, 10.0 A, 3.0 A
