Control functions
43
TIP
Use the special wrench in the owner’s tool kit
to make this adjustment.
2. Loosen the locknut.
3. To increase weight transfer, turn the ad-
juster in direction (a), and to decrease
weight transfer, turn it in direction (b).
WARNING! Never adjust the control
rod beyond the range of the scale on
the special wrench, otherwise the con-
trol rod could be damaged, which
could lead to an accident or injury.
[EWS00181]
4. Tighten the locknut while holding the ad-
juster in place.
TIP
Make sure that the special wrench is securely
fitted on the locknut.
RST90 / RST90PGT
WARNING
EWS00770
The left and right adjusting nuts must be
set to the same position. Uneven settings
can cause poor handling and loss of sta-
bility.
1. Loosen the locknut while holding the ad-
justing nut.

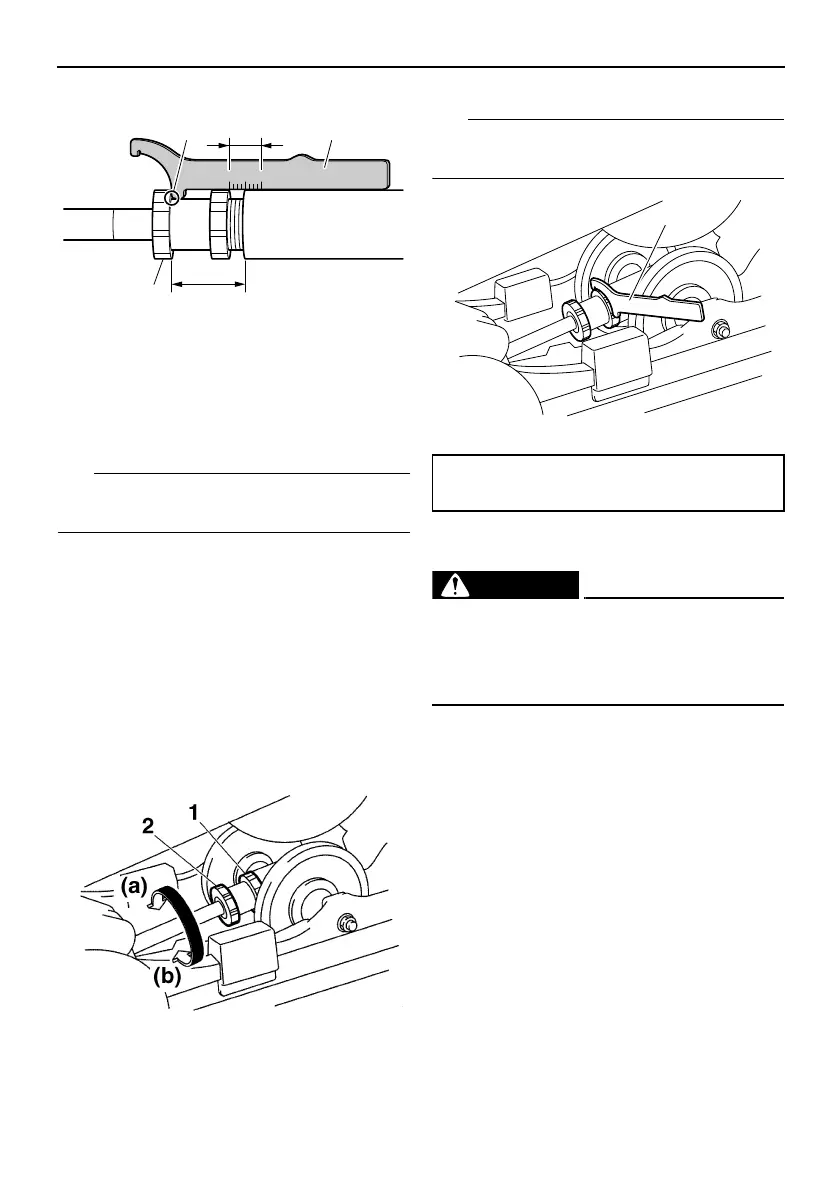

1. Special wrench corner
2. Control rod adjuster
3. Scale range
4. Special wrench
5. Control rod length
1. Locknut
2. Control rod adjuster
Min Max
34
5
1
2
1. Special wrench
Locknut tightening torque:
35 Nm (3.5 m·kgf, 25 ft·lbf)
1
