Control functions
44
2. To increase weight transfer, turn the ad-
justing nut in direction (a), and to de-
crease weight transfer, turn it in direction
(b). WARNING! Never adjust the con-
trol rods beyond the maximum set-
ting, indicated by red paint; otherwise,
they could be damaged, which could
lead to an accident or injury.
[EWS00173]
3. Tighten the locknut while holding the ad-
justing nut in place. NOTICE: Always
tighten the locknut against the adjust-
ing nut, and then tighten the locknut to
the specified torque.
[ECS00860]

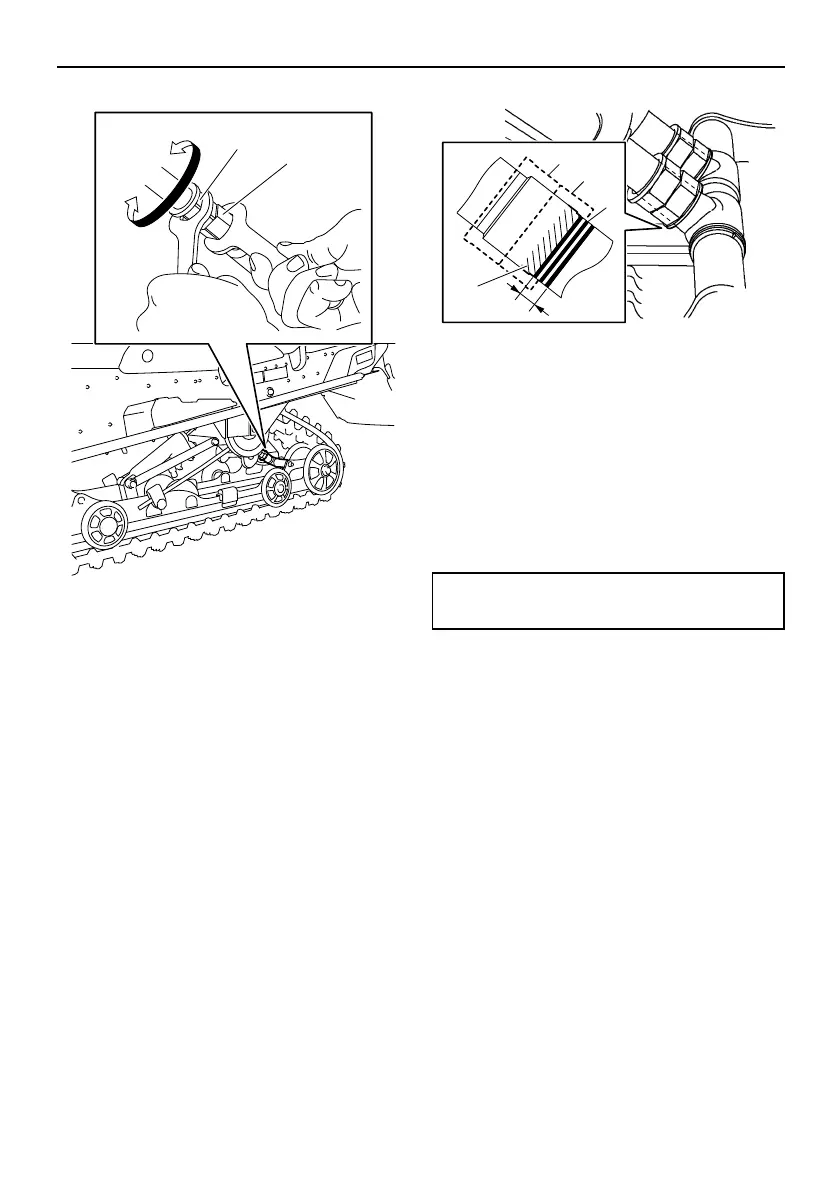

1. Locknut
2. Control rod adjusting nut
1
2
(a)
(b)
1. Locknut
2. Control rod adjusting nut
3. Standard position
4. Adjustable range
5. Red paint area
Locknut tightening torque:
25 Nm (2.5 m·kgf, 18 ft·lbf)
1
5
2
3
4
