Periodic maintenance and adjustment
63

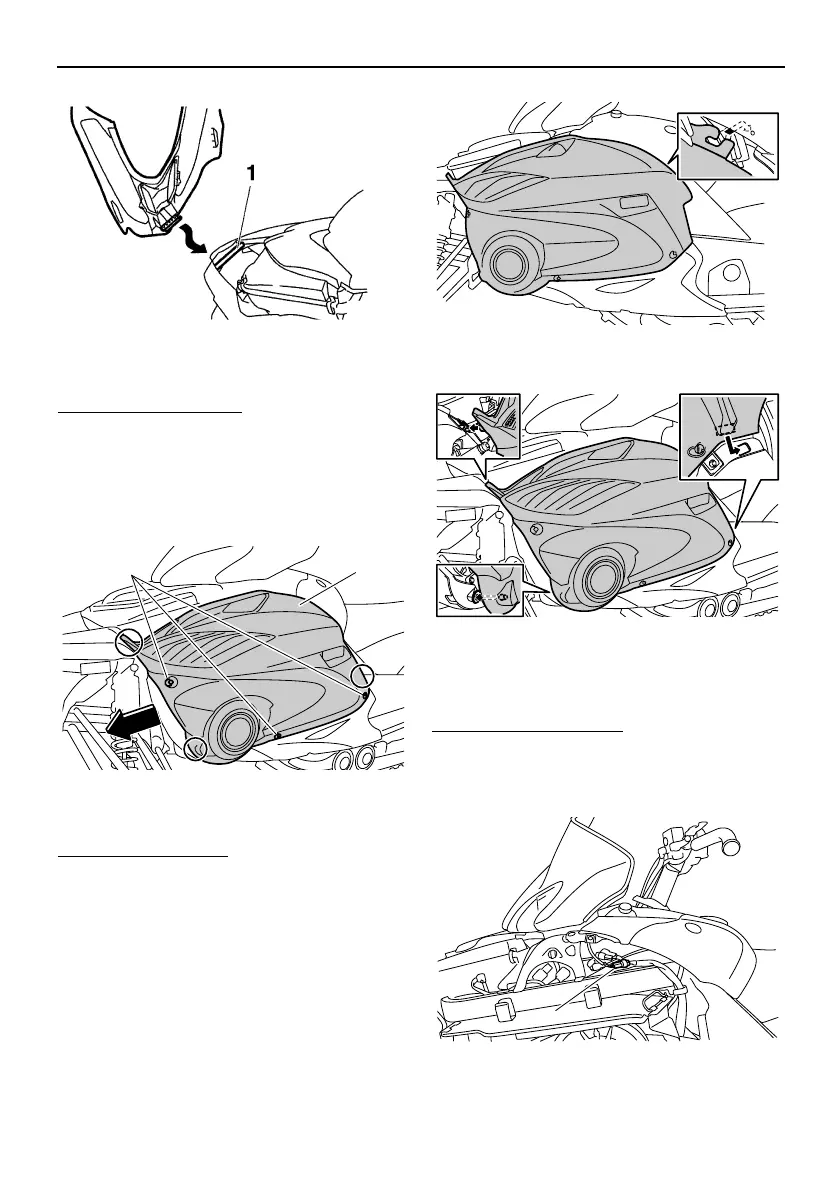

Left and right side covers
To remove a side cover
1. Remove the shroud. (See the above pro-
cedure.)
2. Loosen the fasteners, pull outward on the
areas shown, and then slide the side cov-
er forward to remove it.
To install a side cover
1. Fit the projection on the rear of the side
cover into the hole in the fuel tank cover.
2. Fit the projections on the side cover into
the slots as shown.
3. Tighten the fasteners.
4. Install the shroud.
Top cover (RS90P / RS90PLT)
To remove the top cover
1. Remove the shroud and the left side cov-
er. (See the above procedures.)
2. Disconnect the auxiliary DC jack coupler.
1. Shroud stay
1. Fastener
2. Left side cover
1. Auxiliary DC jack coupler
