Periodic maintenance and adjustment
64

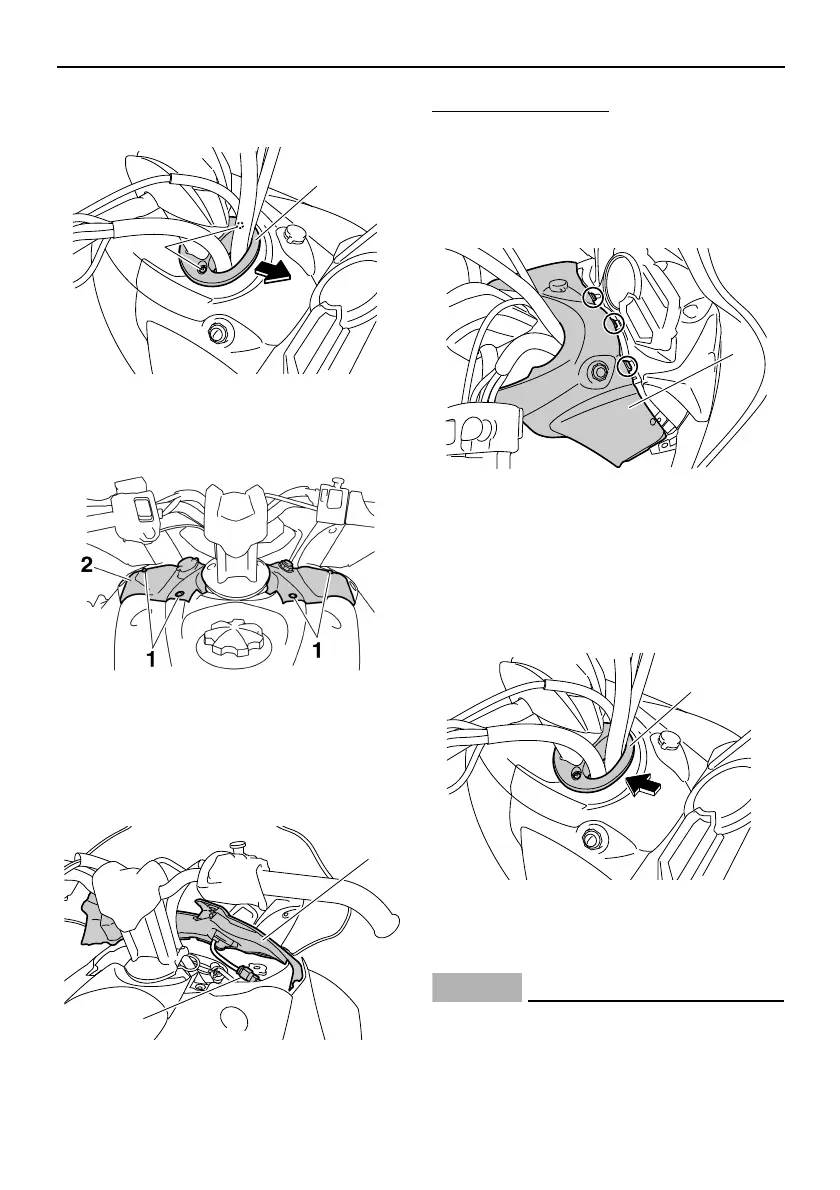

3. Remove the screws, and then remove
the cable guide.
4. Loosen the quick fastener screws.
5. Lift up the rear of the top cover, discon-
nect the main switch coupler, and then
remove the cover.
To install the top cover
1. Connect the main switch coupler.
2. Place the top cover in the original posi-
tion, making sure to fit the projections on
the cover into the slots in the headlight
unit.
3. Tighten the quick fastener screws.
4. Pass the brake hose, throttle cable, park-
ing brake cable and wire harness through
the cable guide, place the cable guide in
the original position, and then install the
screws.
5. Connect the auxiliary DC jack coupler.
6. Install the left side cover and the shroud.
ECS00372
● Make sure that all cables, hoses and
leads are routed properly before install-
ing the shroud and covers.
1. Screw
2. Cable guide
1. Quick fastener screw
2. Top cover
1. Top cover
2. Main switch coupler
1. Top cover
1. Cable guide
