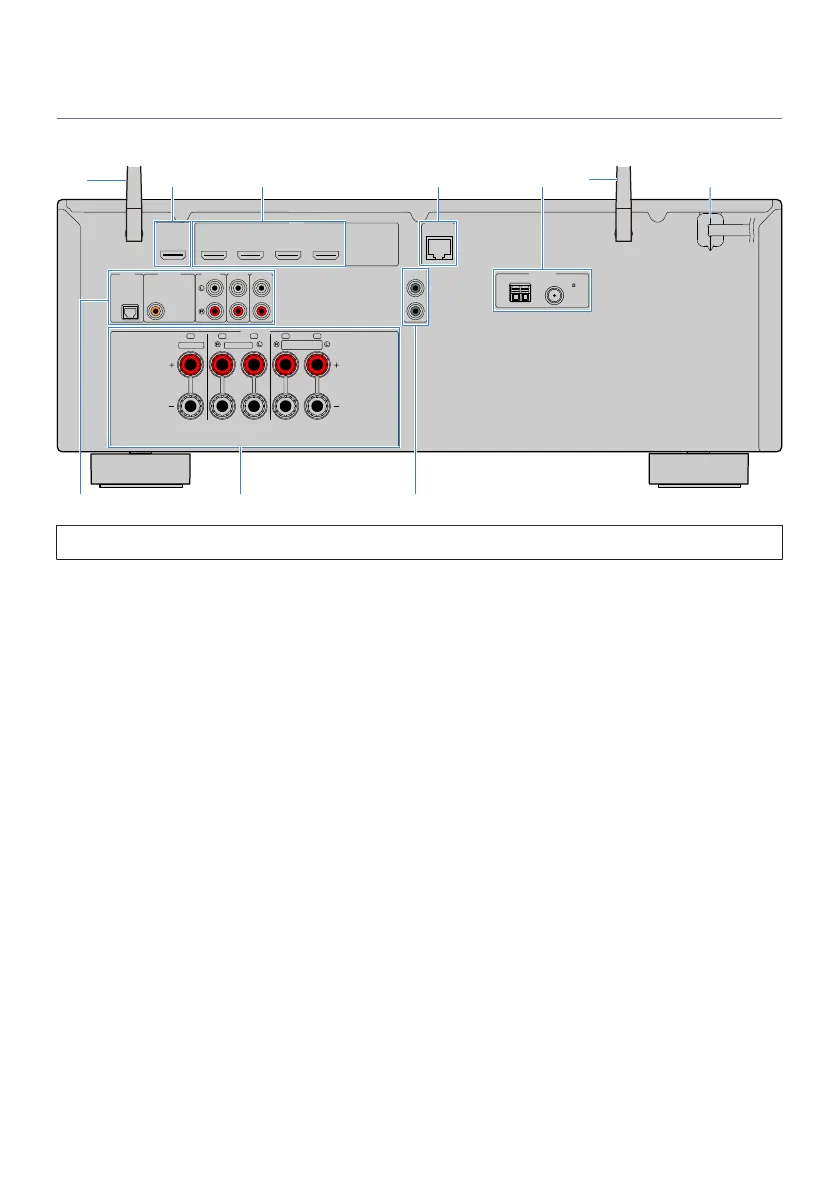

Part names and functions of the rear panel
The part names and functions of the rear panel are as follows.
ANTENNA
FMAM
AUDIO 5AUDIO 4
OPTICAL COAXIAL
HDMI
CENTER FRONT
SURROUND
/ZONE B/BI-AMP
SPEAKERS
PRE OUT
SUBWOOFER
AUDIO 2
(3 MUSIC)
AUDIO 1
AUDIO 3
NETWORK
HDMI OUT
eARC/ARC
( 2 RADIO )
(4 NET RADIO)
1 2 3 4
(1 MOVIE)
1
2
75
FRC FL SR SL
(
The area around the video/audio output jacks is marked in white on the actual product to prevent improper connections.
a
Wireless antennas
For a wireless (Wi-Fi) connection to a network (p.62) and a Bluetooth connection (p.109).
b
HDMI OUT jack
For connecting to HDMI-compatible TV and outputting video/audio signals (p.54). When using eARC/ARC, TV audio
signals are also input.
c
HDMI 1–4 jacks
For connecting to HDMI-compatible playback devices and inputting video/audio signals (p.56).
d
NETWORK jack
For a wired connection to a network (p.63).
e
ANTENNA jacks
For connecting to the radio antennas (p.58).
f
Power cable
For connecting to an AC wall outlet (p.65).
g
AUDIO 1-5 jacks
For connecting to audio playback devices and inputting audio signals (p.57).
h
SPEAKERS terminals
For connecting to speakers (p.35).
30
PART NAMES AND FUNCTIONS > Unit body
