PREPARATIONS
Before starting

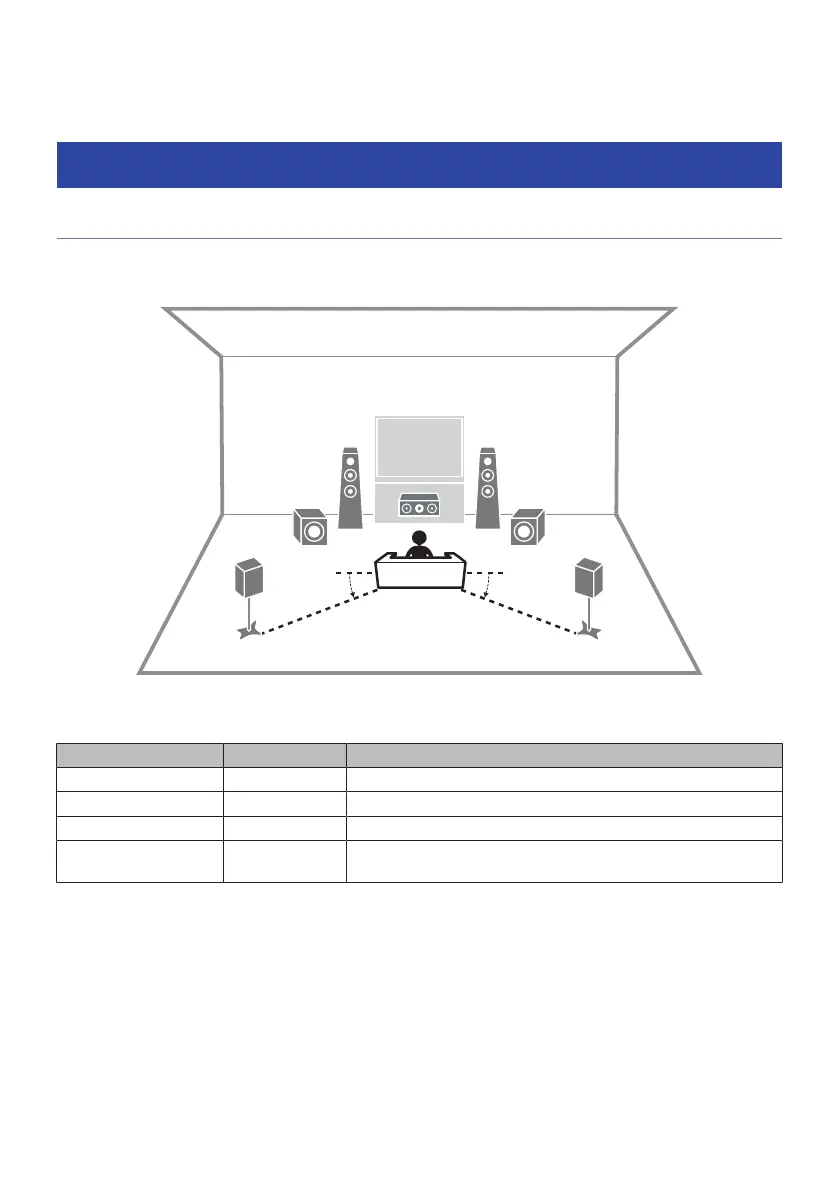

Names and functions of speakers
The names and functions of speakers connected to the unit are as follows.
4
1
2
9
5
3
9
10° to 30° 10° to 30°
Speaker type Abbr. Function
Front 1/2 Produces front channel sounds (stereo sounds).
Center 3 Produces center channel sounds (such as movie dialogue and vocals).
Surround 4/5 Produces surround channel sounds.
Subwoofer 9
Produces LFE (low-frequency effect) channel sounds and reinforces the
bass parts of other channels.
NOTE
Use this diagram as a reference for the ideal speaker layout for the unit. However, your speaker layout does not need to match the
diagram exactly. The automatic speaker setting (YPAO) can be used to automatically optimize the speaker settings (such as distances)
to suit the actual speaker layout.
Related links
(
“Flow of preparations (with surround speakers connected by speaker cables)”(p.36)
(
“Flow of preparations (with surround speakers wirelessly connected)”(p.37)
