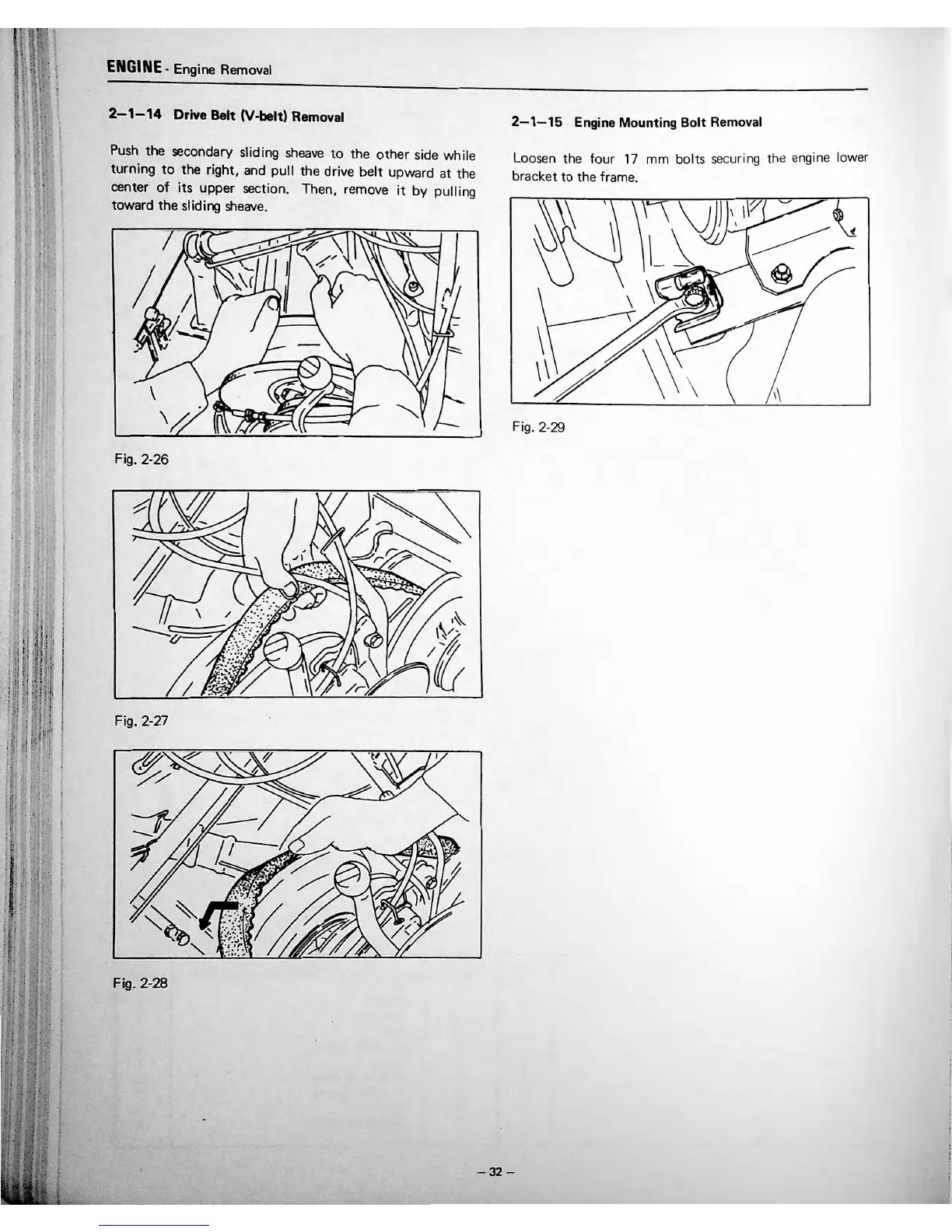

ENGINE- Engine Removal
2-1-14 Drive Belt {V-belt) Removal
Push the secondary sliding sheave to the other side while
turning
to the right, and pull the drive belt upward at the
center
of its upper section. Then, remove it by pulling
toward the sliding
sheave.
7 \
Fig. 2-26
~
,
J\
y
\ .~
\
/
\ "/ ..
...
~Q
/-0
I
Fig. 2-27
-
...
Fig. 2-28
•
•
•
2-1-15 Engine Mounting Bolt Removal
Loo se n the fo ur 17 mm bolts se curing the engine lower
bracket
to the frame.
\
Fig. 2-29
-32-
