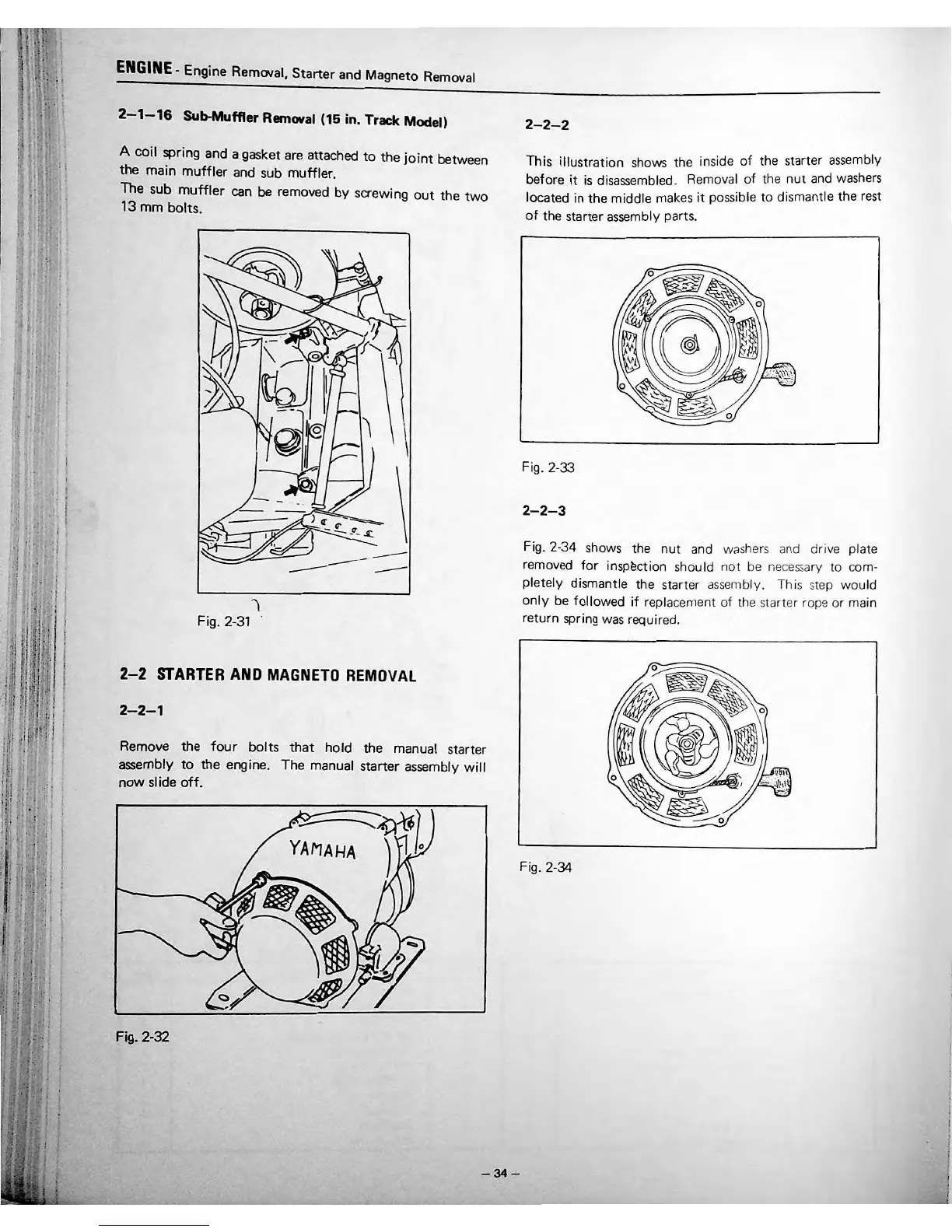

ENGINE· Engine Removal, Starter and Magneto Removal
2-1-16 Sub-Muffler Ren1oval (15 in. Track Model)
A coil spring and a gasket are attached to the joint between
the main muffler and sub mtJffler.
The sub muffler can be removed by screwing out the two
13 mm bolts.
\
Fig. 2-31 .
J er q--
- - -"- ..t:
2-2 STARTER AND MAGNETO REMOVAL
2-2-1
Remove the four bolts that hold the manual starter
assembly
to the engine. The manual starter assembly will
now slide off •
YAMAHA
Fig. 2-32
-34-
2-2-2
This illustr a tion sh o ws the inside of t he starter asse mbly
before
it is d is a sse mbled. Rem ov al of the nut and was hers
located in
th e middle ma kes it possible to dismantle th e r es t
o·f
th e s tar te r asse mbly parts .
F
ig . 2-33
2-2-3
Fi g. 2-34 shows the n ut and washers and drive plate
removed
fo r in sp~c t ion should n ot be ne c essary to com-
plete
ly di sma nt le the sta rt er a ssemb ly. Th is step wo uld
only be f ollowed
if r ep lacement of the starter rope or ma in
ret
urn spring was req uired.
Fig. 2-34
