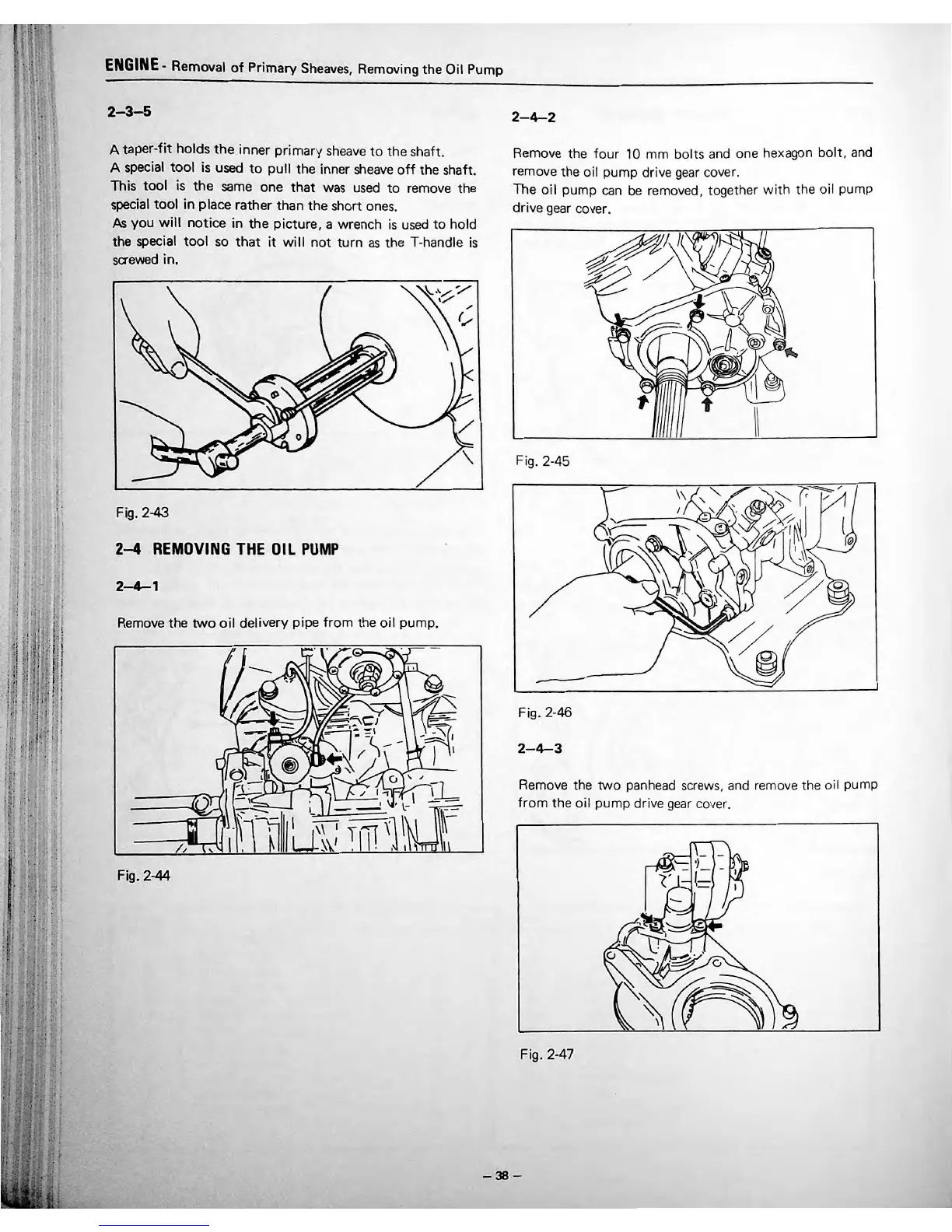

ENGINE· Removal of Primary Sheaves, Removing the Oil Pump
2-3-5
A taper-fit holds the inner primary sheave to the shaft.
A special tool is used to pull the inner sheave off the shaft.
This
tool is the same one that was used to remove the
special
tool in place rather than the short ones.
As you will notice in the picture, a wrench is used to hold
the special
tool so that it will not turn as the T-handle is
saewed in.
Fig. 2-43
2-4 REMOVING THE OIL PUMP
2 4 1
Remove the two oil delivery pipe from the oil pump.
--
a
)
\
Fig. 2-44
2-4-2
Remove the four 10 mm bolts and one hexagon bolt, and
remove the oil pump drive gear cover.
The oil
pump can be removed, together with the oil pump
drive gear cover.
Fig. 2-45
0
Fig. 2-46
2-4-3
Remove the two panhead screws, and rem ove the oil pump
from the oil pump drive gear cover .
Fig. 2-47
•
-38-
