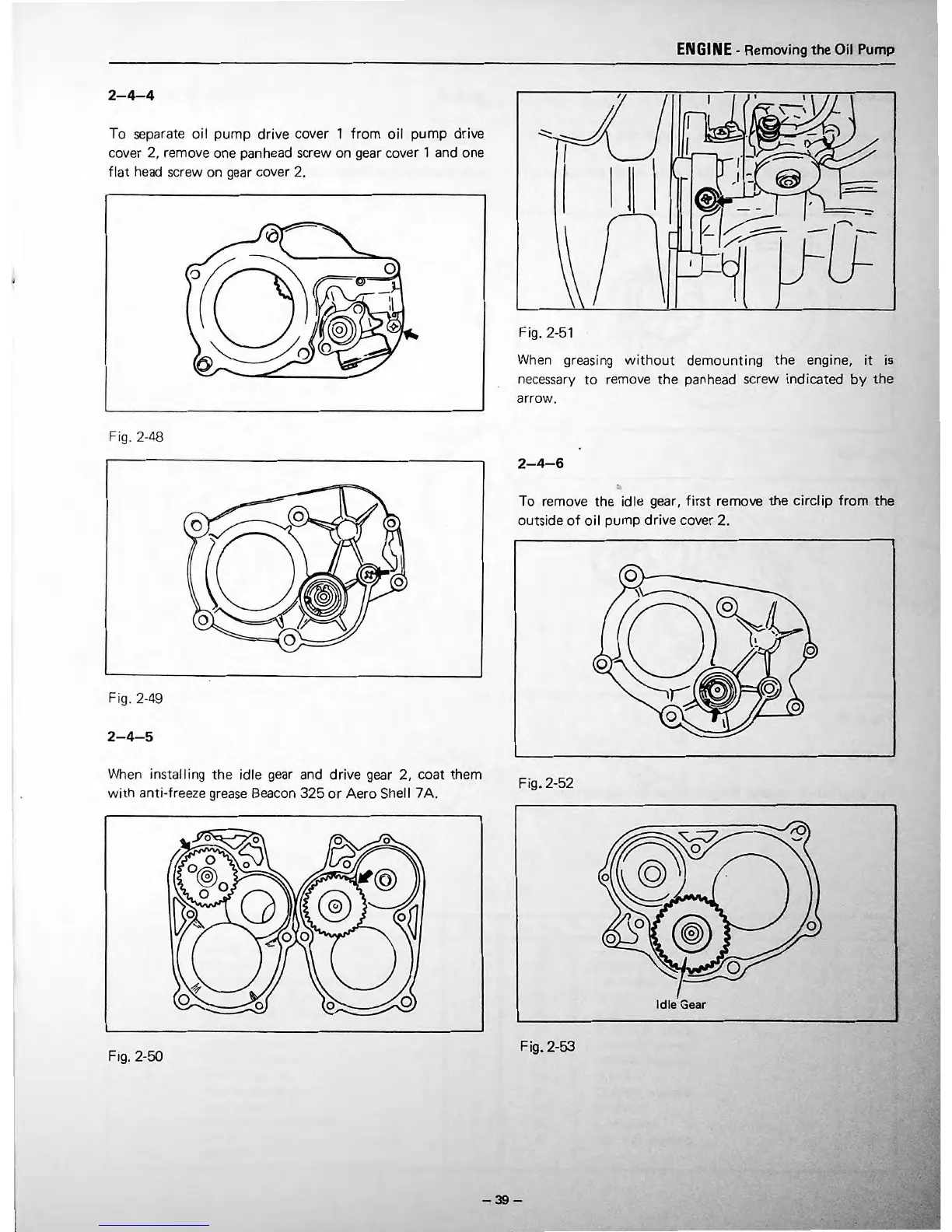

2-4-4
To separate oil pump drive cover 1 from oil pump drive
cover
2, remove one panhead screw on gear cover 1 and one
flat head screw on gear cover 2.
0
Fig. 2-48
0
Fig. 2-49
2-4-5
When installing the idle gear and drive gear 2, coat them
with an ti-fr eeze grease Beacon 325 or Aero Shel I 7 A.
©
Fig. 2-50
Fig.
2-51
ENGINE - Removing the Oil Pump
I
I
I
,
--
•
-
-
-
....
When greasing without demounting the engine, it is
necessary to remove the panhead sc rew indicated by the
a rrow.
2-4-6
To remove the id le gear, first remove the circl ip from the
outside of oil pump drive cover 2.
0
0
0
Fig. 2-52
Idle Gear
Fig. 2-53
-39-
