l
•
•
•
2-3

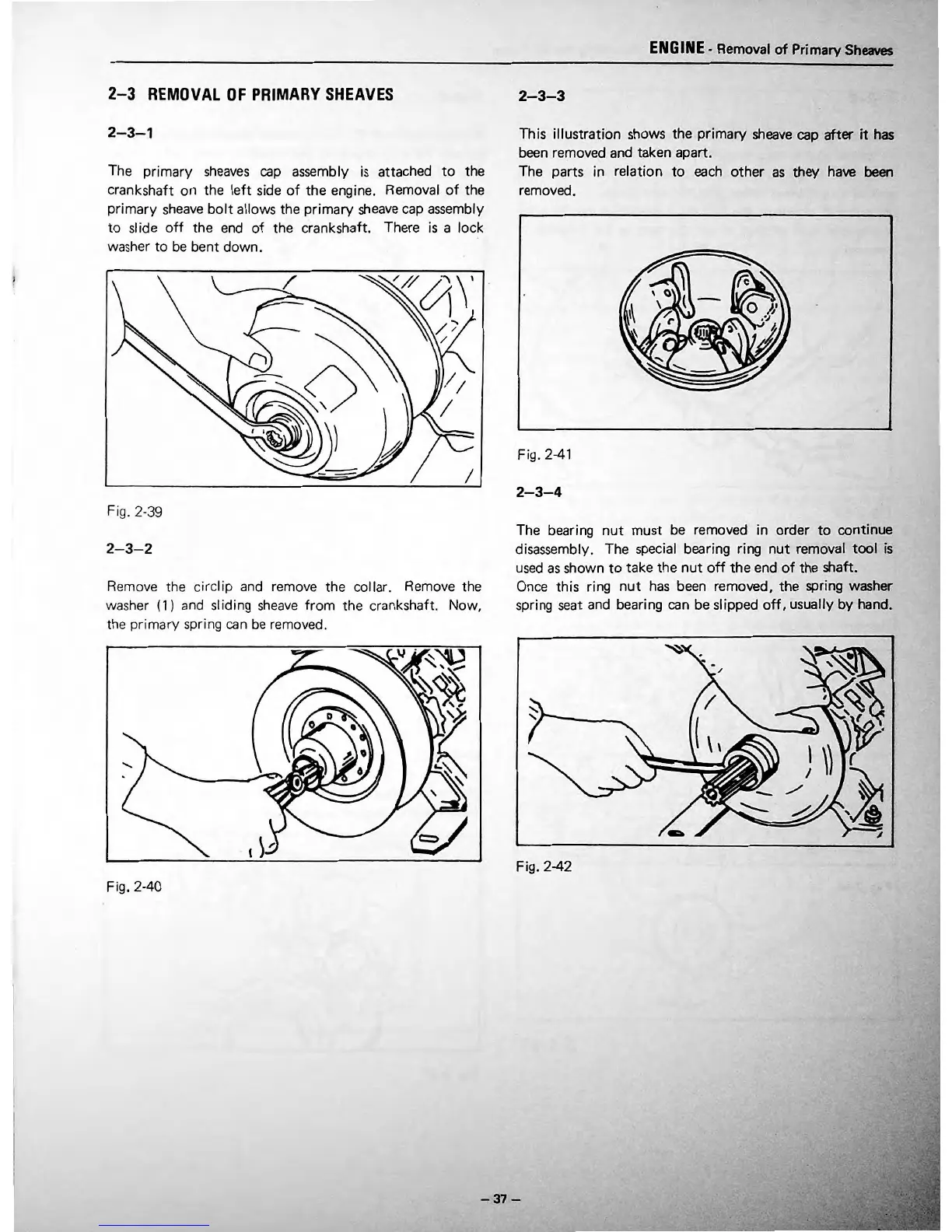

REMOVAL
OF
PRIMARY
SHEAVES
2-3-1
The
primary
sheaves
cap
assembly
is
attached
to
the
crankshaft
on
the
left
side
of
the
engine. Removal
of
the
primary
sheave
bolt
allows the
primary
sheave
cap assembly
•
to
slide
off
the
end
of
the
crankshaft. There
is
a lock
washer
to
be
bent
down.
•
\
I
F
ig
. 2-39
2-3-2
Remove the c
ir
cl ip and remove
the
collar. Remove the
washer (
1)
and sliding
sheave
from
the
crankshaft. Now,
the
pr
imary s
pr
i
ng
can be removed.
Fig. 2-40
ENGINE-
Removal
of
Primary
ShecMS
2-3-3
This
illustration
shows
the
primary
sheave cap after
it
has
been removed and taken apart.
The parts
in
relation
to
each
other
as
they have
been
removed.
Fig. 2-41
2-3-4
The bearing
nut
must be removed in
order
to
continue
disassembly. The special bearing ring
nut
removal
tool
is
used
as
shown
to
take
the
nut
off
the
end
of
the shaft.
Once this ring
nut
has
been removed,
the
spring washer
spring seat and bearing can
be
slipped
off,
usually
by
hand.
\ \
Fig. 2-42
-37-
