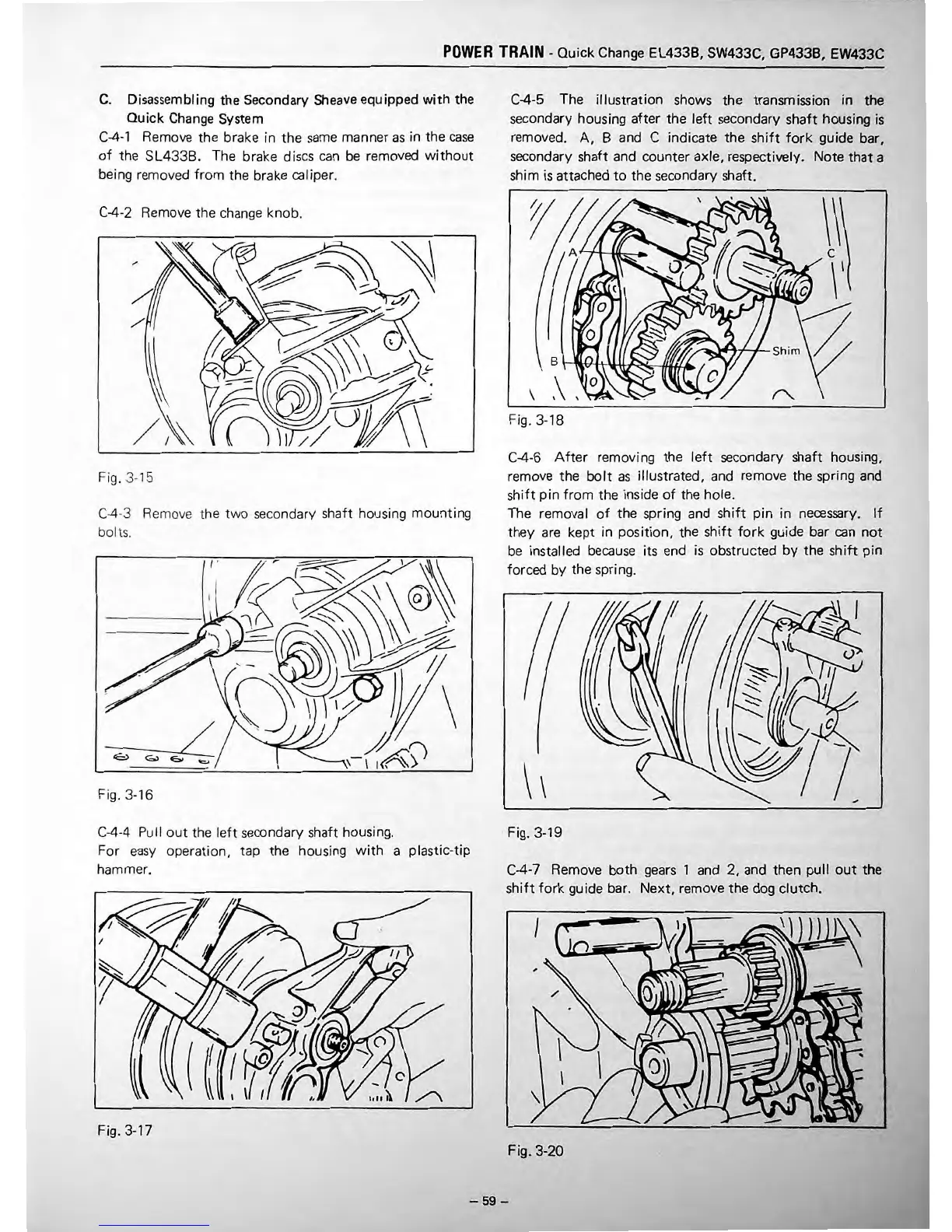

Disassembling the Secondary
Sheave
equipped
with
the
Quick
Change System
C-4-1
Remove the brake in
the
same
manner
as
in the
case
of
the SL433B. The brake discs can be removed
without
being removed
from
the brake caliper.
C-4
-2 Remove the cha
nge
knob.
/
Fig. 3-15
•
--
C-4
-3 Remove
th
e
two
secondary shaft housing mounting
b
ol
ts.
I .
' -
Fig.
3-
16
C-4-4 Pull
out
the
left
secondary shaft housing.
For
easy
operation, tap the housing
with
a plastic-tip
hammer.
1
I
"
(.'
~
-
' \
I
••••
I\
/"\
Fig.3-17
C-4-5 The illustration shows the transmission in the
secondary housing
after
the
left
secondary shaft housing
is
removed.
A,
B and C indicate the
shift
fork
guide bar,
secondary shaft and counter axle, respectively. Note
that
a
shim
is
attached
to
the secondary shaft.
\
c
\
8
\
Fig. 3-18
C-4-6
After
removing the
left
secondary shaft housing,
remove the
bolt
as
illustrated, and remove the spring and
shift
pin
from
the inside
of
the hole.
The removal
of
the
sp
ring and
shift
pin
in necessary.
If
they are kept in position, the
shift
fork
guide bar can
not
be
installed because its end
is
obstructed
by
the
shift
pin
forced
by
the spring.
\
Fig.3-19
C-4-7 Remove
both
gears
1 and 2, and then
pull
out
the
shift
fork
guide bar.
Next,
remove the dog clutch.
I
,
\
\
\
Fig. 3-20
