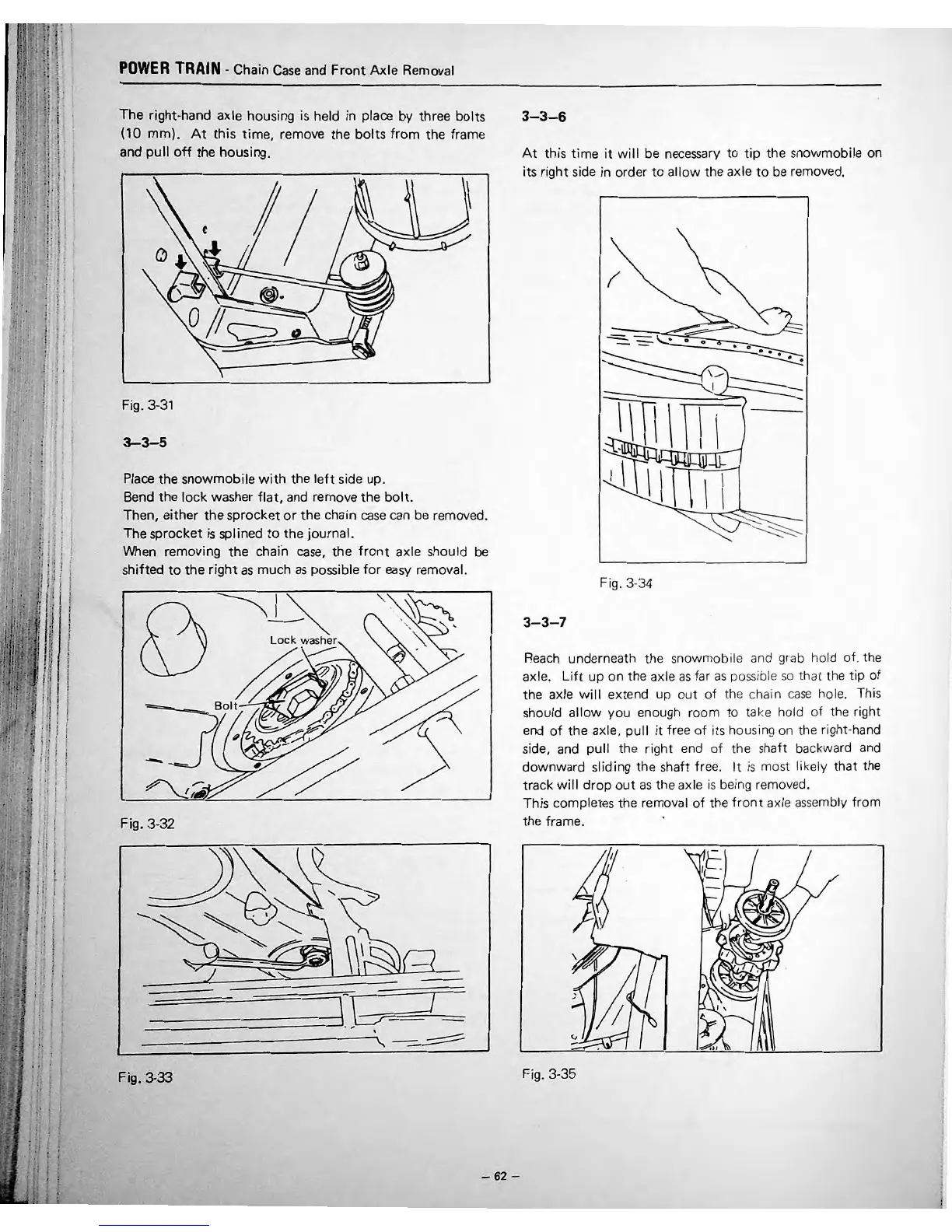

POWER TiRAIN -Chain Case and Front Axle Removal
The right-hand axle housing is held in place by three bolts
(10 mm). At this time, remove the bolts from the frame
and
pull off the housing.
)
Fig. 3-31
3-3-5
Place the snowmobile with the left side up.
Bend the
lock washer flat, and remove th e bo lt.
Then, either the sproc ket or the c ha in ca se ca n be removed.
The sprocket
is splined to th e journal .
When removing
the chain ca se, th e front axle sho uld be
shifted to the right as much as possible for ea sy removal.
...
L ock w as her
~
Fig. 3-32
-
-
.J
. ,,
'
-
-
-
Fig •
3-33
-62-
3-3-6
At th is time it w ill be n ec e ssa ry to tip the sn owmo bile on
it s right side in order to all ow the axle to be removed.
(
.. 0 0
•••
• •
- -
• •
Fig. 3-34
•
3-3-7
R eac h underneath the snow mobi le and grab hold of. th e
axle. L
if t up on the axle as far as po ss ible so th at th e tip of
th e axle w ill extend up out of the c ha in case ho l e. This
should a
llow yo u enough room to take hold of th e right
end of the axle, pull
it free of its housing on the right-hand
si d e, and pull the right end of the sh aft backward and
d
ow nward sliding the sh aft fr ee. It is most I ikely that the
tr ack wi ll dr op out as the axle is bei ng remo ve d.
This completes the remov
al of the fr o nt axle a ss embly from
th e fr ame.
•
)
'
Fig. 3- 35
,
•
'
