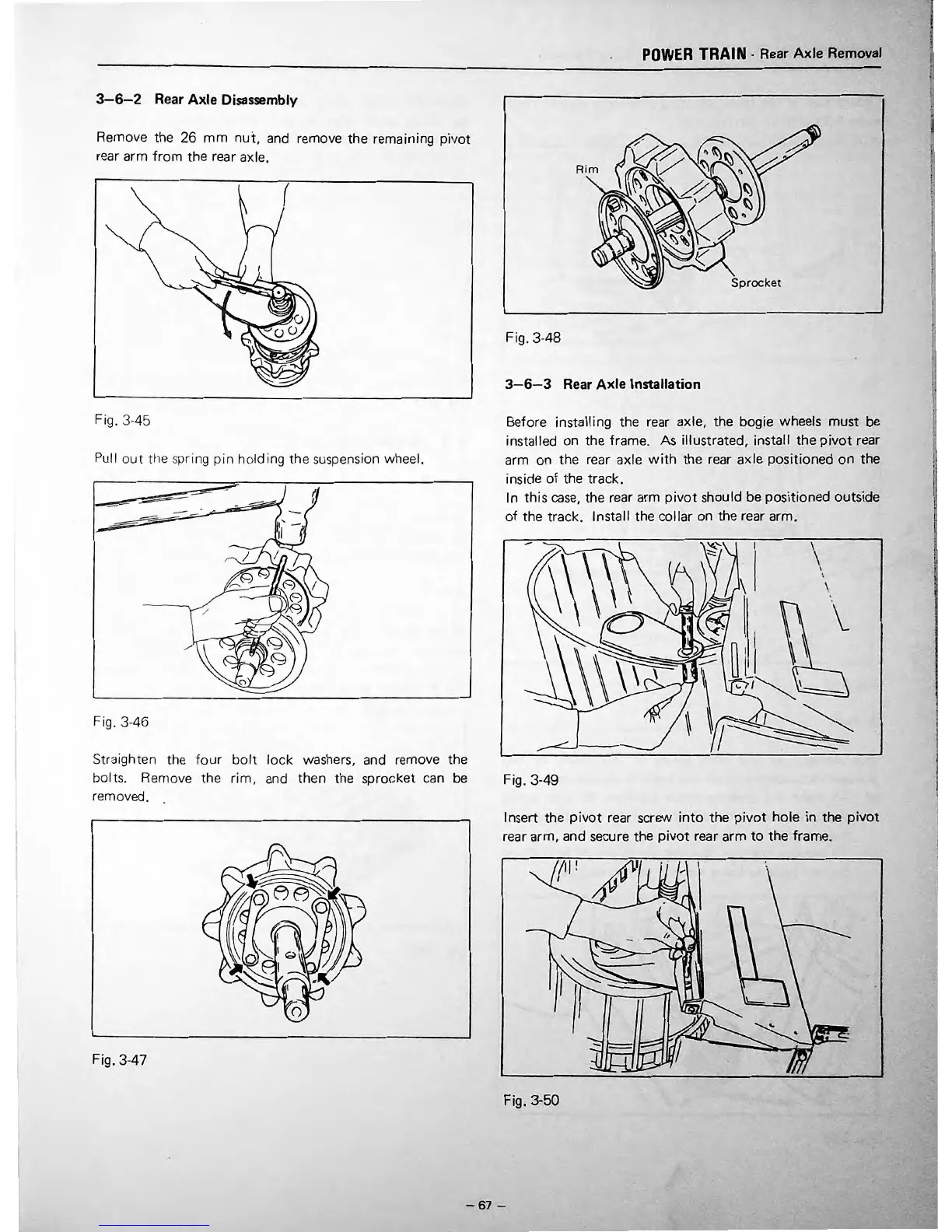

3-6-2 Rear Axle Disassembly
Remove the 26 mm nut, and remove the remaining pivot
rear arm from th e rear axle.
Fig. 3-45
Pull
out the sp ring pin hold i ng the suspension wheel.
-
-
-
-
--=
-
- -
- -
-
-
Fig. 3-46
Straighten
th e fou r bo lt lock washer s, and remove the
bo
lt s. R en1o ve the rim, and then the sprocket can be
removed.
•
Fig. 3-47
•
POWER TRAIN · Rear Axle Removal
Sprocket
Fig. 3-48
3-6-3 Rear Axle Installation
Before installing the rear axle, the bogie wheels must be
installed on the frame. As illustrated, install the pivot rear
arm
on the rear axle with the rear axle positioned on the
inside of the track.
In this
case, the rear arm pivot should be positioned outside
of the track. Install the collar on the rear arm.
\
\
\
\
•
\_
I
t_
"' I
\
\
-
Fig. 3-49
Insert the pivot rear screw into the pivot hole in the pivot
rear arm, and secure the pivot rear arm to the frame .
•
Fig. 3-50
•
•
•
•
•
