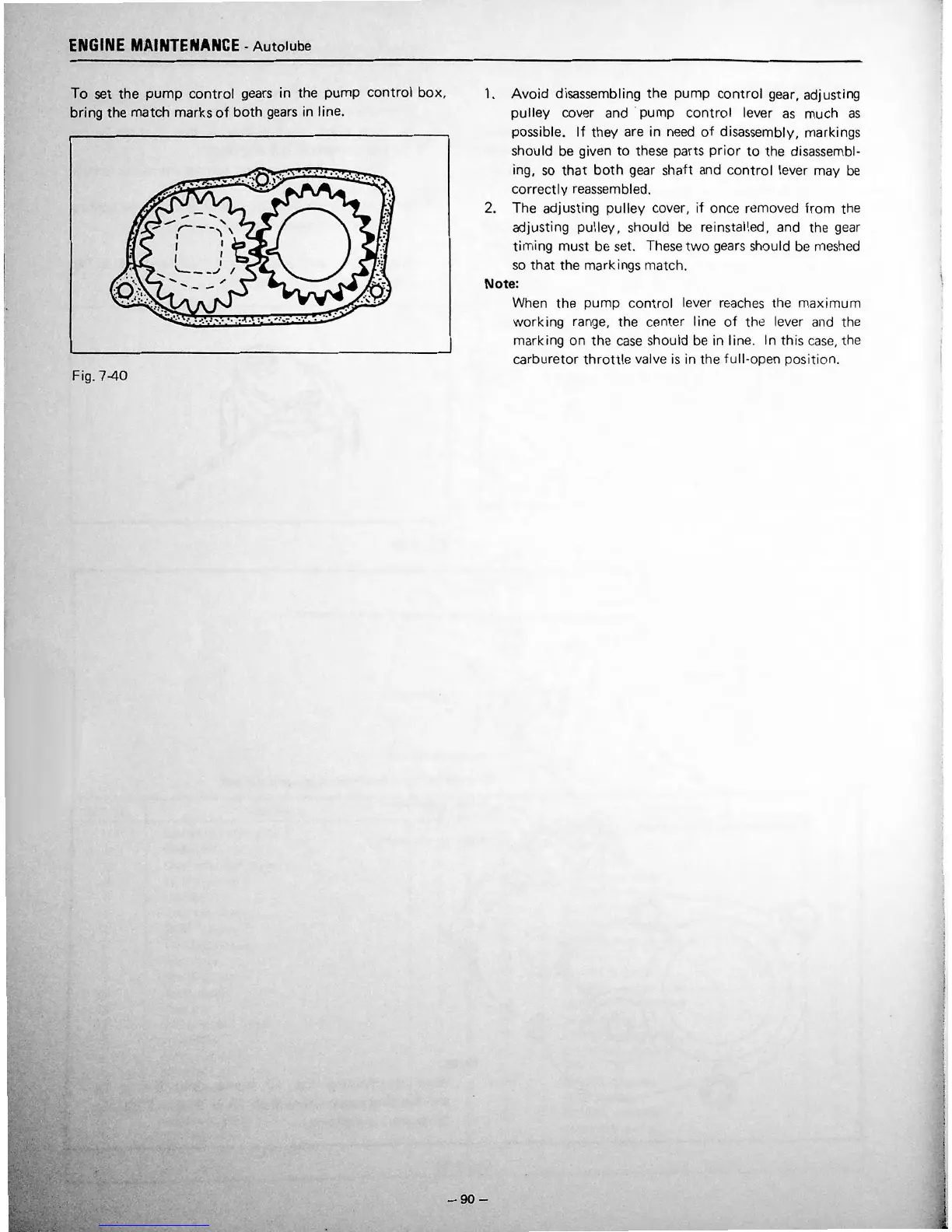

Yamaha SL338D - Page 96

•
•
. ENGINE MAINJENANCE - Autolube
To set the pump control gears in the pump control box,
bring the match marks of both gears in line.
..... "
--
Fig. 7-40
•
•
••
. , ... - ·.· .
•
•
1. Avoid disassembling the pump control gear, adjusting
pulley cover and ·pump
contro l lever as much as
possible. If they are in need of disassembly, markings
should be given
to these parts prior to the disassembl-
ing,
so that both gear st1aft and co ntrol lever may be
correctly reassembled.
2. The adjusting pulley cover, if once removed from the
adjusting
pulley, shou ld be reinstalled, and the gear
timing must be set. These two gears should be meshed
so that the markings match.
Note:
-90-
When the pump control lever reaches the maximum
working ra nge, the ce nt er I ine of the lever and the
marking
on th e case should be in line. In this case, the
carburetor
throttle valve is in the f u II -o pen position.
•
•
•
•
•
\
•
