Yamaha WR450F 2021 - Rear Wheel

REAR WHEEL
4-12
EAM20096
REAR WHEEL

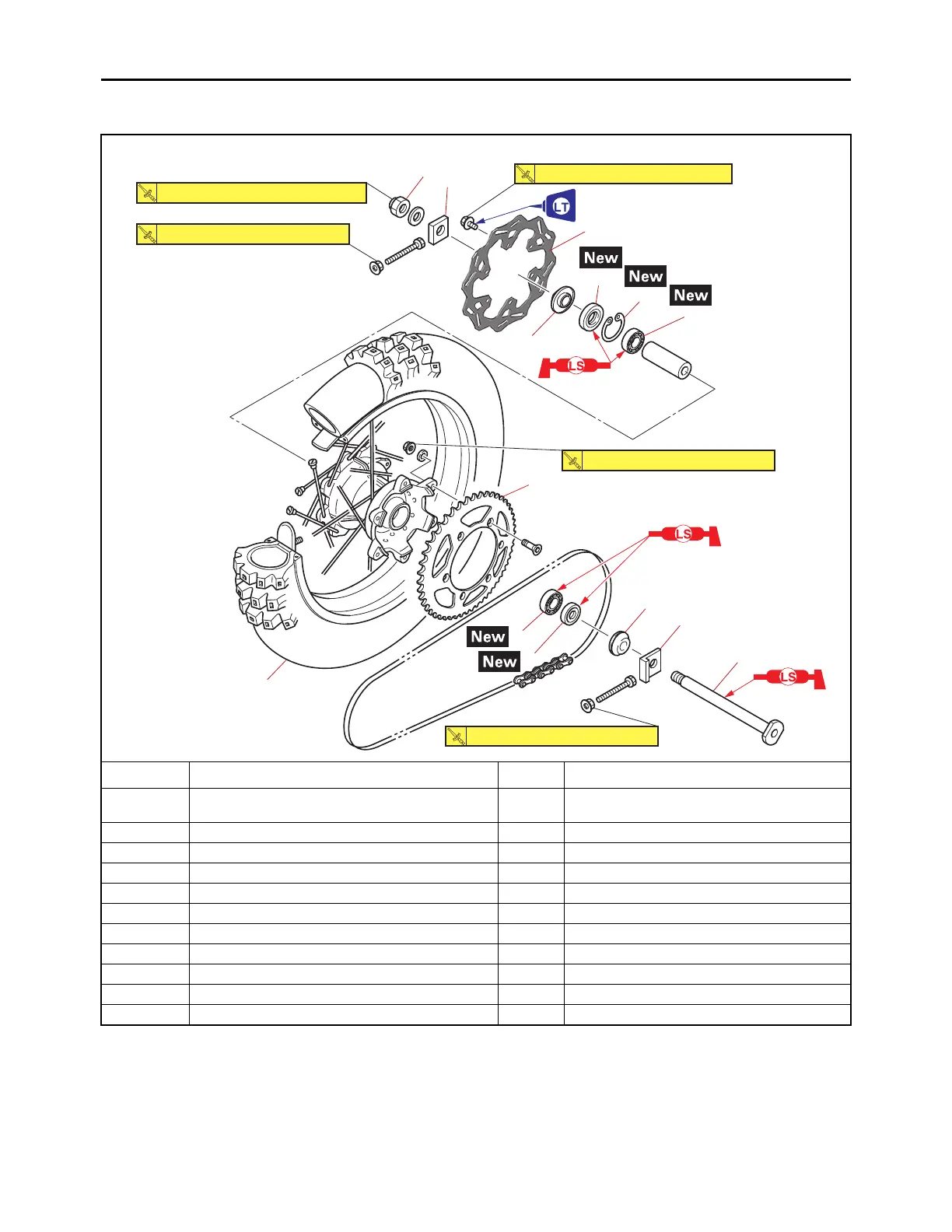

Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
Use a maintenance stand to raise the rear
wheel off the ground.
1 Nut (rear wheel axle) 1
2 Rear wheel axle 1
3 Drive chain puller 2
4 Rear wheel 1
5 Collar 2
6 Rear wheel sprocket 1
7 Oil seal 2
8 Circlip 1
9 Bearing 2
10 Brake disc 1
(6)
2
5
9
(6)
4
6
1
(6)
3
10
7
5
3
21 N・m (2.1 kgf・m, 15 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
125 N・m (12.5 kgf・m, 92 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
