GENERATOR
5-37
EAM20183
GENERATOR

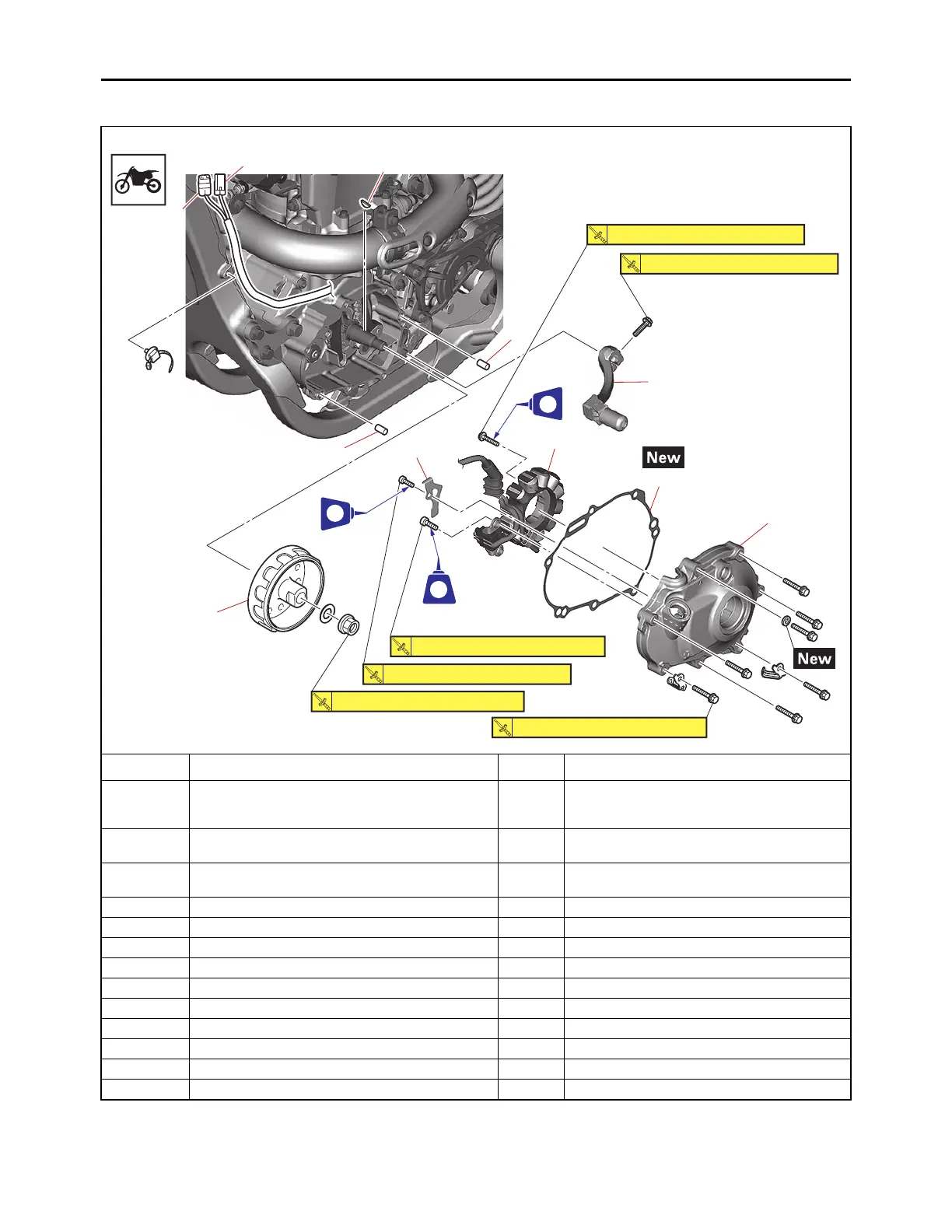

Removing the stator coil assembly
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-14.
Seat
Refer to “GENERAL CHASSIS” on page
4-1.
Air scoop (left)
Refer to “GENERAL CHASSIS” on page
4-1.
1 Stator coil assembly coupler 1 Disconnect.
2 Crankshaft position sensor coupler 1 Disconnect.
3 Shift pedal 1
4 Crankcase cover (left) 1
5Gasket 1
6 Dowel pin 2
7 Holder 1
8 Stator coil assembly 1
9 Generator rotor 1
10 Woodruff key 1
1
10
2
4
7
5
8
3
9
6
LT
6
10 N・m (1.0 kgf・m, 7.4 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
65 N・m (6.5 kgf・m, 48 lb・ft)
(3)
(2)
LT
LT
