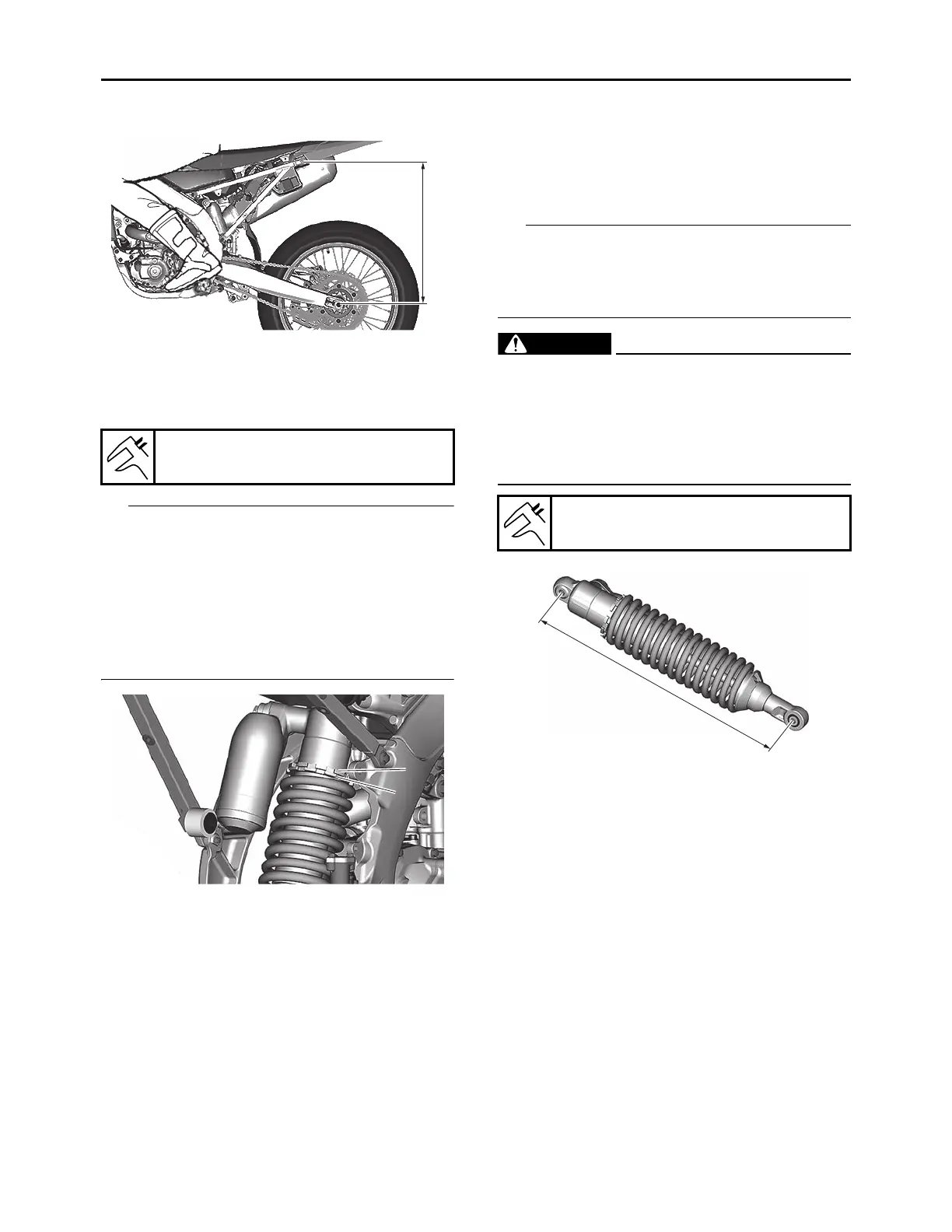

CHASSIS
10-4
sunken length “b” between the rear wheel
axle center and the rear fender holding bolt.
3. Loosen the locknut “1” and make adjustment
by turning the adjuster “2” to achieve the
standard figure from the subtraction of the
length “b” from the length “a”.
• If the machine is new and after it is broken in,
the same set length of the spring may change
because of the initial fatigue, etc. of the spring.
Therefore, be sure to make reevaluation.
• If the standard figure cannot be achieved by
adjusting the adjuster and changing the set
length, replace the spring with an optional one
and make readjustment.
EAM30177
SETTING OF SPRING AFTER
REPLACEMENT
After replacement, be sure to adjust the spring to
the set length [sunken length 90–100 mm (3.5–
3.9 in)] and set it.
1. Use of soft spring
• Adjust to decrease rebound damping force to
compensate for less spring load. Run with the
rebound damping force adjuster one or two
clicks turned out, and readjust it to suit your
preference.
2. Use of stiff spring
• Adjust to increase rebound damping force to
compensate for greater spring load. Run with
the rebound damping force adjuster one or
two clicks turned in, and readjust it to suit your
preference.
Adjusting the rebound damping force will be fol-
lowed more or less by a change in the compres-
sion damping force. For correction, adjust to
decrease compression damping force.
EWA19200
When using a rear shock absorber other
than currently installed, use the one whose
overall length “a” does not exceed the stan-
dard as it may result in faulty performance.
Never use one whose overall length is great-
er than standard.
Standard figure
90–100 mm (3.5–3.9 in)
b
1
2
Length “a” of standard shock
460.5 mm (18.1 in)
a
