WATER PUMP
6-6
EAM20139
WATER PUMP

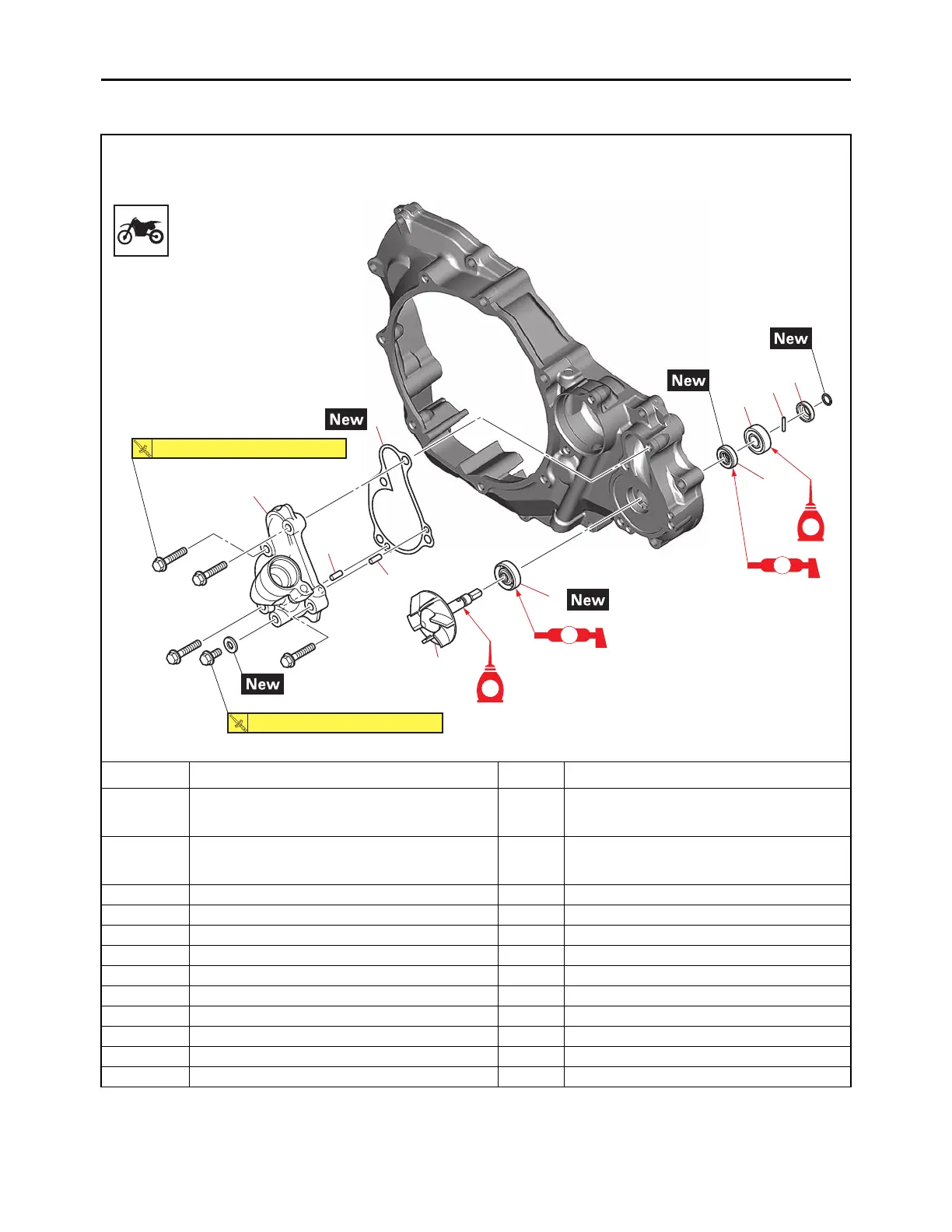

Removing the water pump
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-21.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-14.
Right crankcase cover Refer to “CLUTCH” on page 5-46.
1 Water pump housing 1
2 Dowel pin 2
3Gasket 1
4 Collar 1
5Pin 1
6 Impeller shaft assembly 1
7 Oil seal 1
8 Bearing 1
9 Oil seal 1
LS
LS
7
6
2
2
3
1
8
5
4
E
9
E
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
