CLUTCH
5-46
EAM20111
CLUTCH

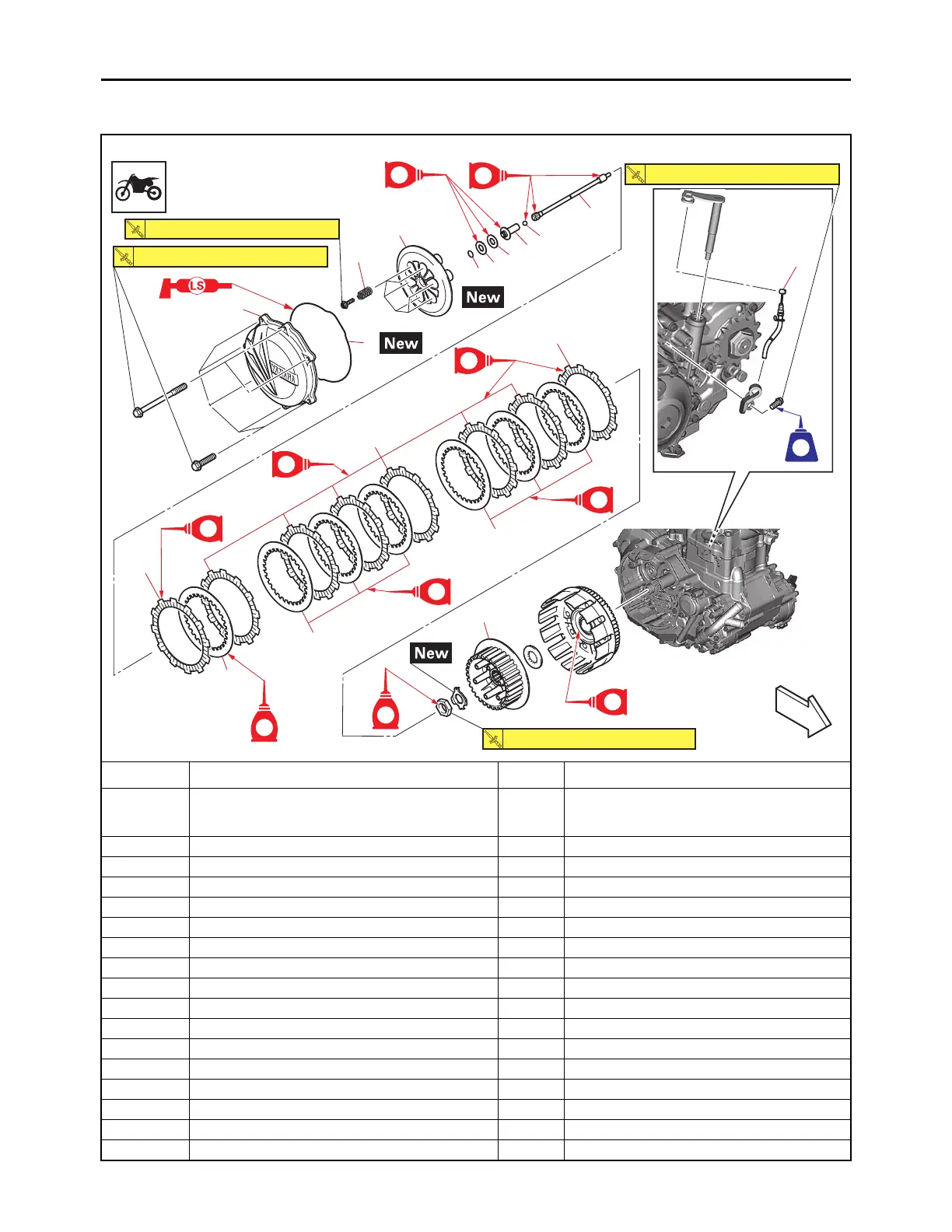

Removing the clutch
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-14.
Brake pedal Refer to “ENGINE REMOVAL” on page 5-6.
1 Clutch cable 1 Disconnect.
2Clutch cover 1
3O-ring 1
4 Clutch spring 6
5 Pressure plate 1
6 Push rod 1 1
7 Circlip 1
8 Washer 1
9 Bearing 1
10 Ball 1
11 Push rod 2 1
12 Friction plate 1 2 Identification color (black)
13 Clutch plate 7
14 Friction plate 2 6 Identification color (purple)
15 Clutch boss 1
E
E
2
3
4
5
7
8
9
6
10
11
13
12
12
14
13
13
15
T
.R.
LT
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
75 N・m (7.5 kgf・m, 55 lb・ft)
1
E
E
E
E
E
E
E
E
FWD
FWD
