Yamaha WR450F 2021 - Shift Shaft

SHIFT SHAFT
5-54
EAM20113
SHIFT SHAFT

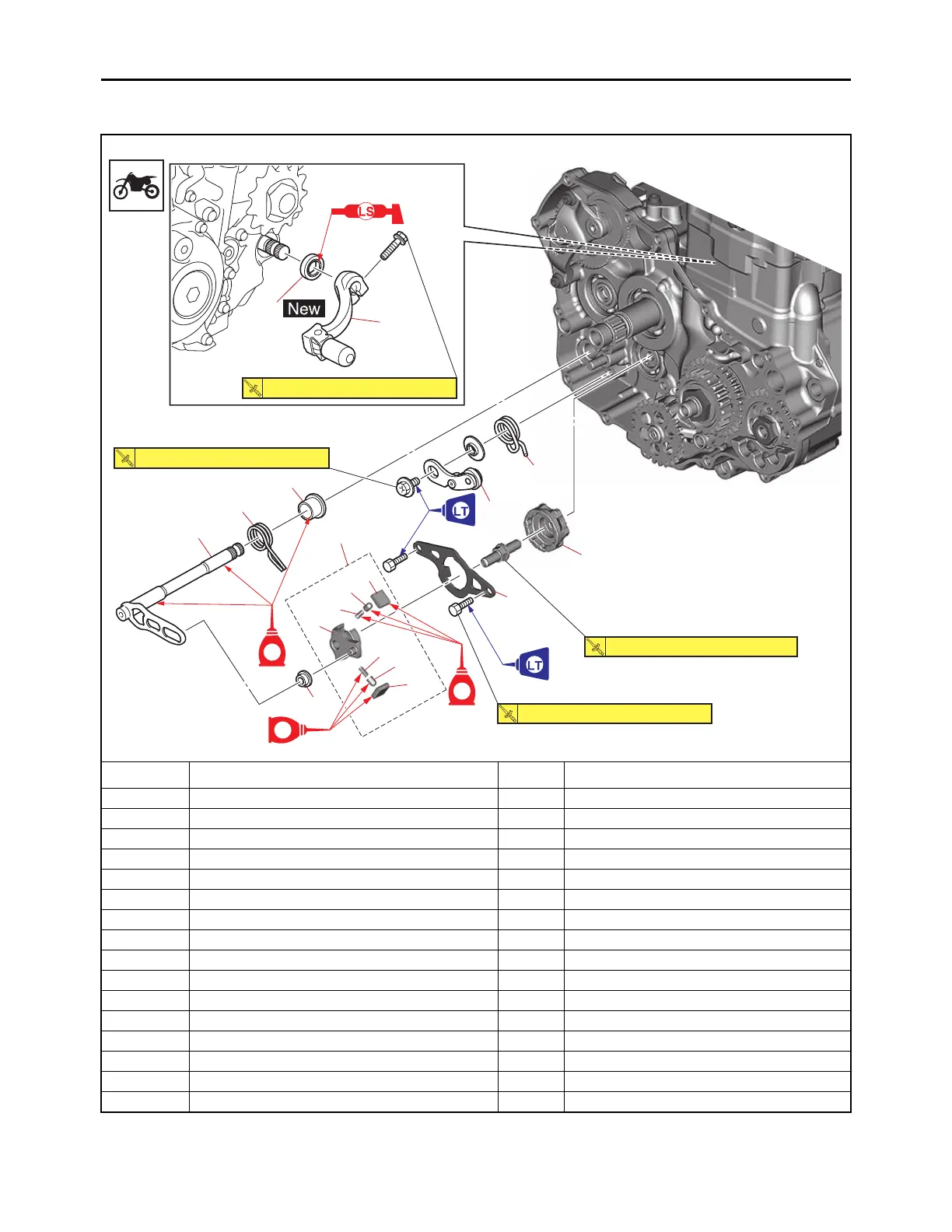

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-46.
1 Shift pedal 1
2 Shift shaft 1
3 Oil seal 1
4 Collar 1
5 Shift shaft spring 1
6 Roller 1
7 Shift guide 1
8 Shift lever assembly 1
9Shift lever 1
10 Pawl 2
11 Pawl pin 2
12 Spring 2
13 Stopper lever 1
14 Stopper lever spring 1
15 Segment 1
1
3
13
15
14
6
10
11
12
11
8
9
12
10
4
2
5
7
E
30 N・m (3.0 kgf・m, 22 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
E
E
