CLUTCH
5-53

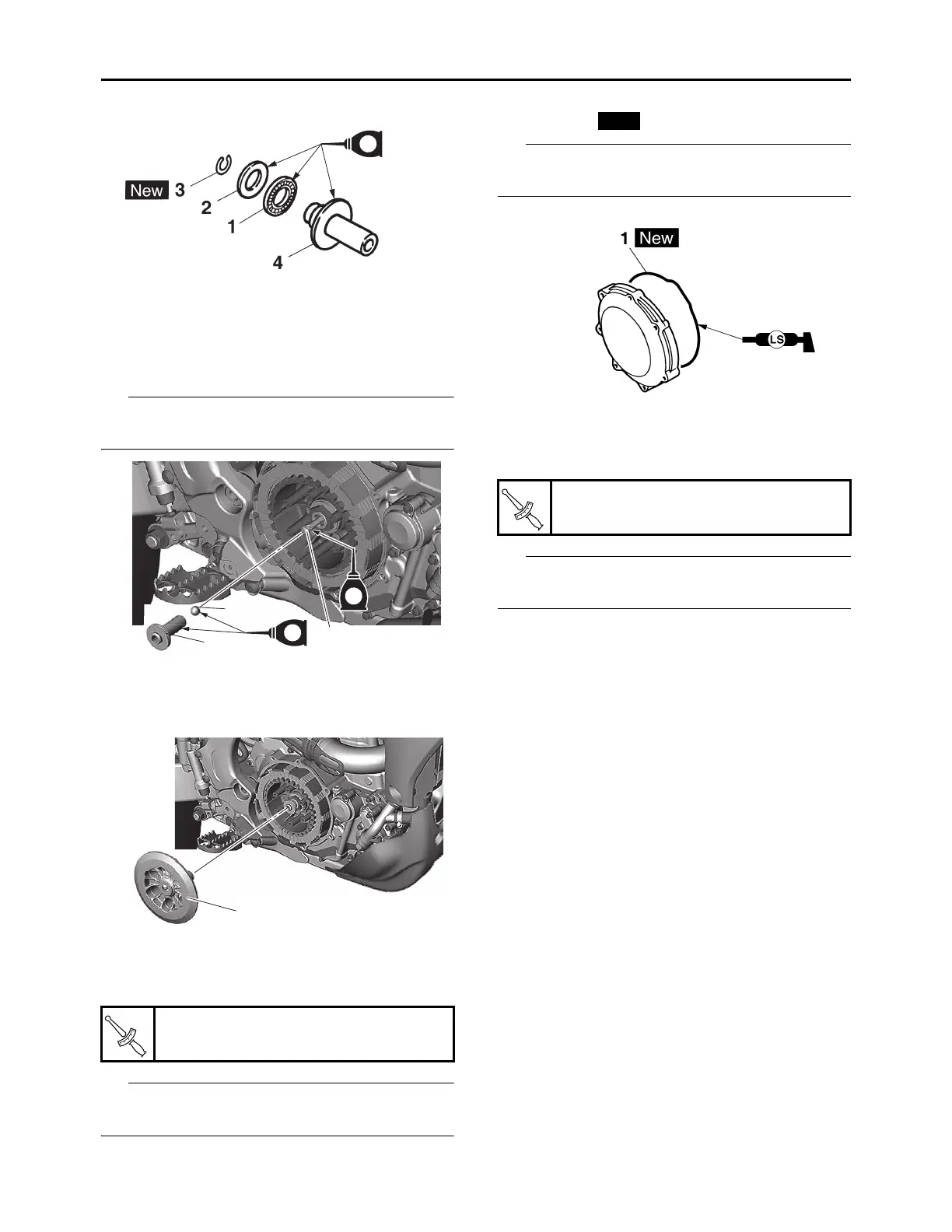

10.Install:
• Push rod 2 “1”
• Ball “2”
• Push rod 1 “3”
TIP
Apply the engine oil on the push rod 1, 2 and
ball.
11.Install:
• Pressure plate “1”
12.Install:
• Clutch spring
• Clutch spring bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
13.Install:
• O-ring “1”
TIP
Apply the lithium-soap-based grease to the O-
ring.
14.Install:
• Clutch cover
• Clutch cover bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
Clutch spring bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
E
E
E
1
2
3
1
1
1
T
R
.
.
Clutch cover bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
