Yamaha WR450F 2021 - Installing the Oil Pump

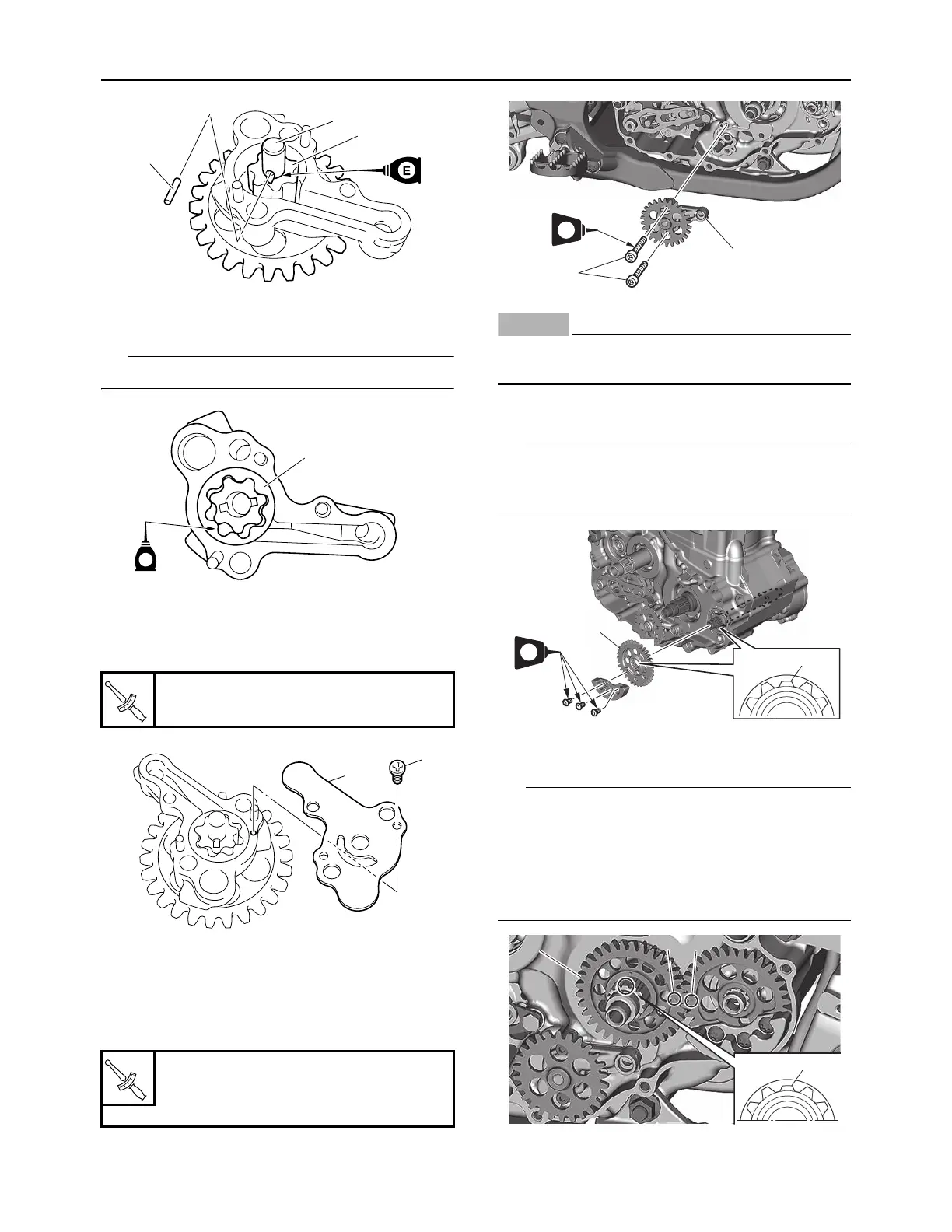

OIL PUMP
5-61
2. Install:
• Outer rotor “1”
TIP
Apply the engine oil on the outer rotor.
3. Install:
• Oil pump cover “1”
• Oil pump cover screw “2”
EAM30486
INSTALLING THE OIL PUMP
1. Install:
• Oil pump assembly “1”
• Oil pump assembly bolt “2”
NOTICE
ECA13890
After tightening the bolts, make sure the oil
pump turns smoothly.
2. Install:
• Balancer weight gear “1”
TIP
Install the balancer weight gear and balancer
shaft with their lower splines “a” aligning with
each other.
3. Install:
• Balancer drive gear “1”
TIP
• Align the punched mark “a” on the balancer
drive gear with the punched mark “b” on the
balancer weight gear.
• Install the balancer drive gear and crankshaft
with the lower splines “c” aligning with each
other.
Oil pump cover screw
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
Oil pump assembly bolt
5 N·m (0.5 kgf·m, 3.7 lb·ft)
LOCTITE®
2
1
3
1
E
T
R
.
.
2
1
T
R
.
.
1
1
1
2
2
LT
1
c
a
LT
1
1
c
b
a
c
b
a
