REAR WHEEL
4-14
TIP
Tighten the self-locking nuts in stages and in a
crisscross pattern.
EAM30026

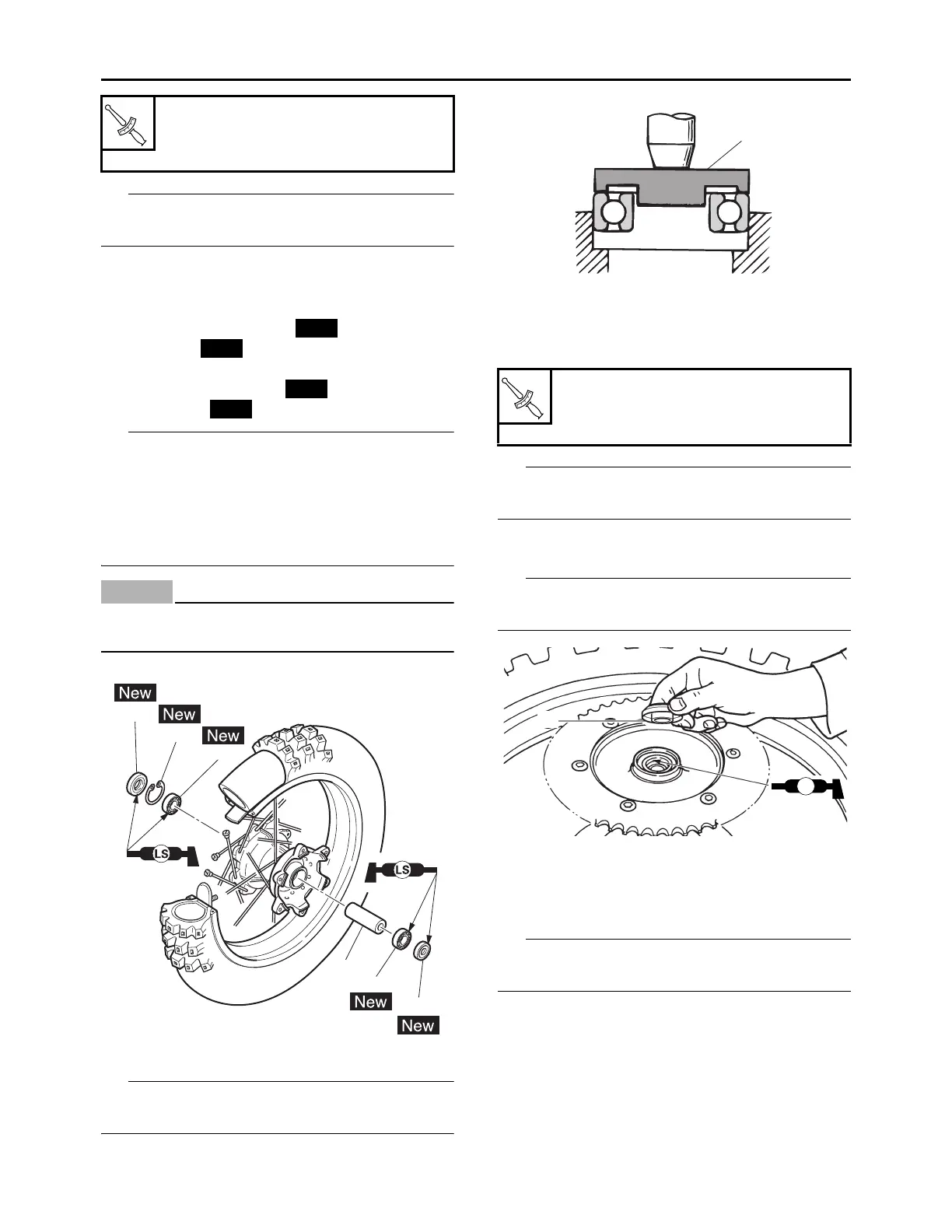

ASSEMBLING THE REAR WHEEL
1. Install:
• Bearing (right side) “1”
• Circlip “2”
• Spacer “3”
• Bearing (left side) “4”
• Oil seal “5”
TIP
• Apply the lithium-soap-based grease to the
bearing and the oil seal lip when installing.
• Install the bearing with seal facing outward.
• Right side of bearing shall be installed first.
• Install the oil seal with its manufacture’s marks
or numbers facing outward.
NOTICE
ECA24440
Install the bearing by pressing its outer race
parallel.
TIP
Use a socket “6” that matches the diameter of
the bearing outer race and that of the oil seal.
2. Install:
• Brake disc
• Brake disc bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
3. Install:
• Collar “1”
TIP
Apply the lithium-soap-based grease on the oil
seal lip.
EAM30027
INSTALLING THE REAR WHEEL
1. Install:
• Rear wheel
TIP
Install the brake disc “1” between the brake pads
“2” correctly.
Rear wheel sprocket self-locking
nut
50 N·m (5.0 kgf·m, 37 lb·ft)
T
R
.
.
New
New
New
New
3
5
2
1
5
4
Brake disc bolt
12 N·m (1.2 kgf·m, 8.9 lb·ft)
LOCTITE®
6
T
R
.
.
1
LS
