HANDLEBAR
4-37
EAM20099
HANDLEBAR

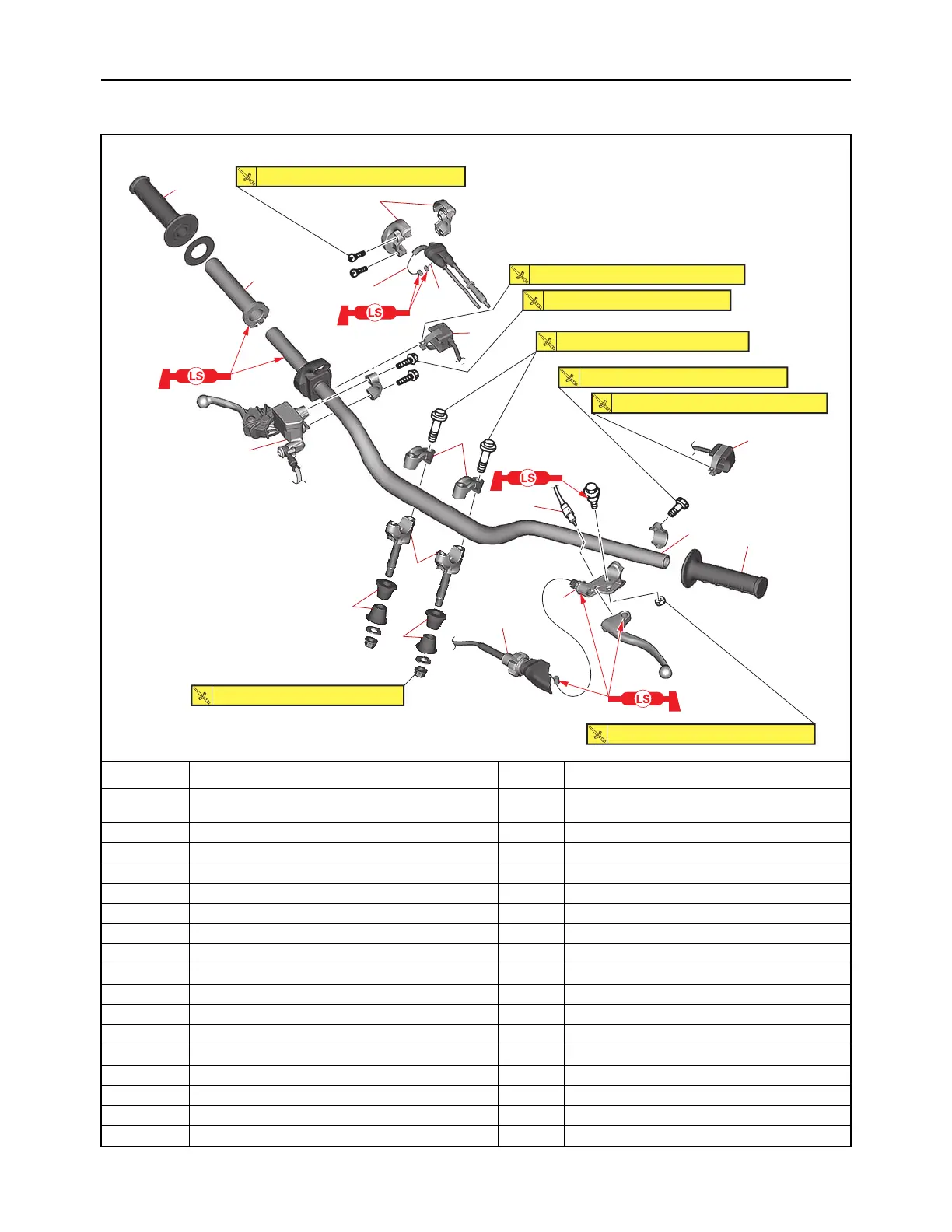

Removing the handlebar
Order Job/Parts to remove Q’ty Remarks
Headlight
Refer to “GENERAL CHASSIS” on page
4-1.
1 Clutch cable 1 Disconnect.
2 Clutch switch 1
3 Clutch lever holder 1
4 Engine stop switch 1
5 Brake master cylinder 1
6 Throttle cable cap 1
7 Throttle cable (pull) 1 Disconnect.
8 Throttle cable (return) 1 Disconnect.
9 Right grip 1
10 Tube guide 1
11 Start switch 1
12 Left grip 1
13 Upper handlebar holder 2
14 Handlebar 1
15 Lower handlebar holder 2
16 Damper 4
12
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
0.5 N・m (0.05 kgf・m, 0.37 lb・ft)
0.5 N・m (0.05 kgf・m, 0.37 lb・ft)
28 N・m (2.8 kgf・m, 21 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
40 N・m (4.0 kgf・m, 30 lb・ft)
8
7
5
1
3
4
10
9
11
13
14
15
16
16
6
9 N・m (0.9 kgf・m, 6.6 lb・ft)
2
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
