4
2. Installation
VE2700-8
17

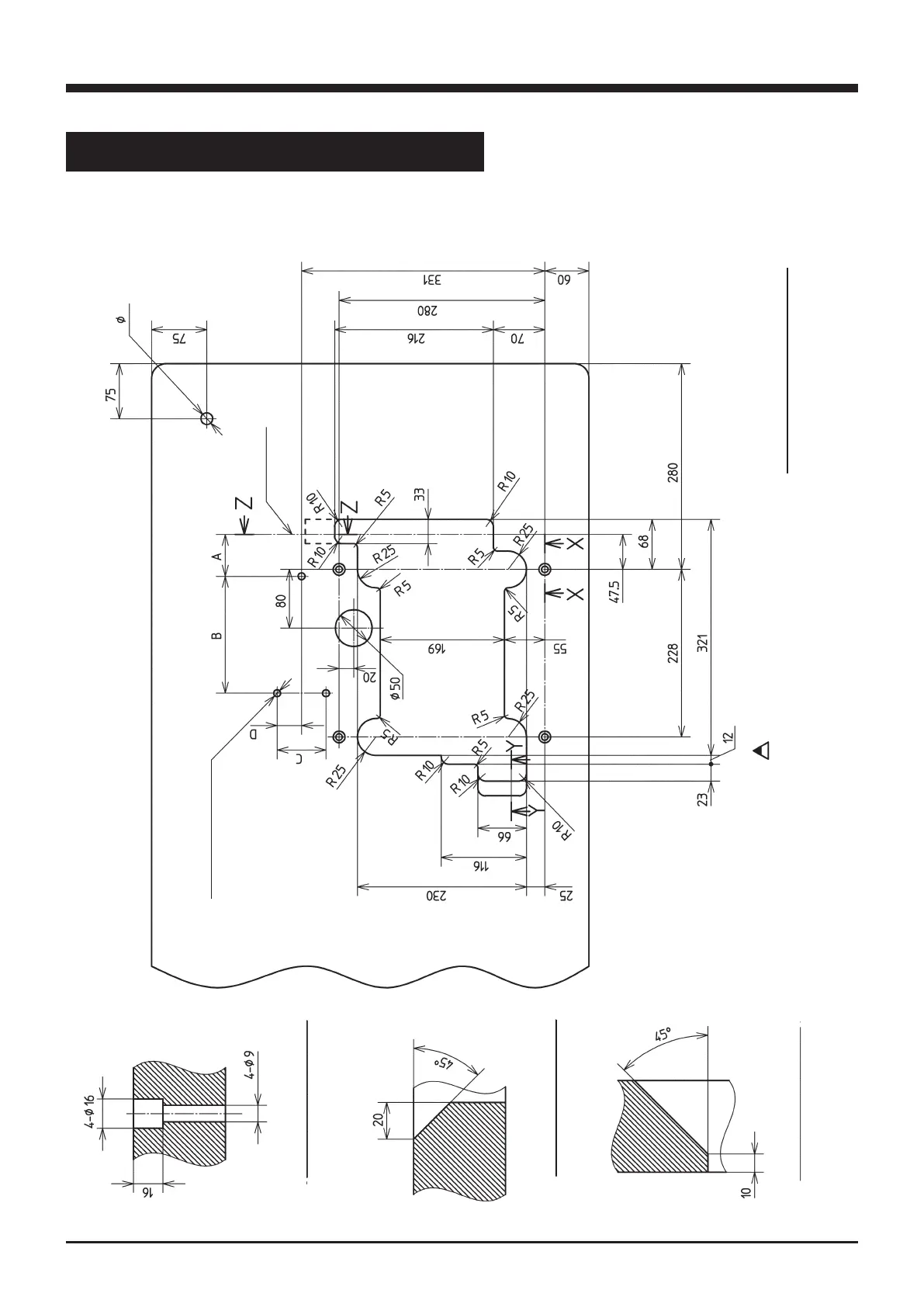

2.1.3 Semi-submerged type
Section X-X (1/2)
Section Z-Z (1/2)
Center
of pulley
3-Φ9.5
(Installing hole for motor)
Operator
Table dimensions: 1200×595×50
Fig. 2-3
Refer to the instruction manual of the motor
for dimensions A, B, C, and D.
Section Y-Y (1/2)
