11
VE2700-8

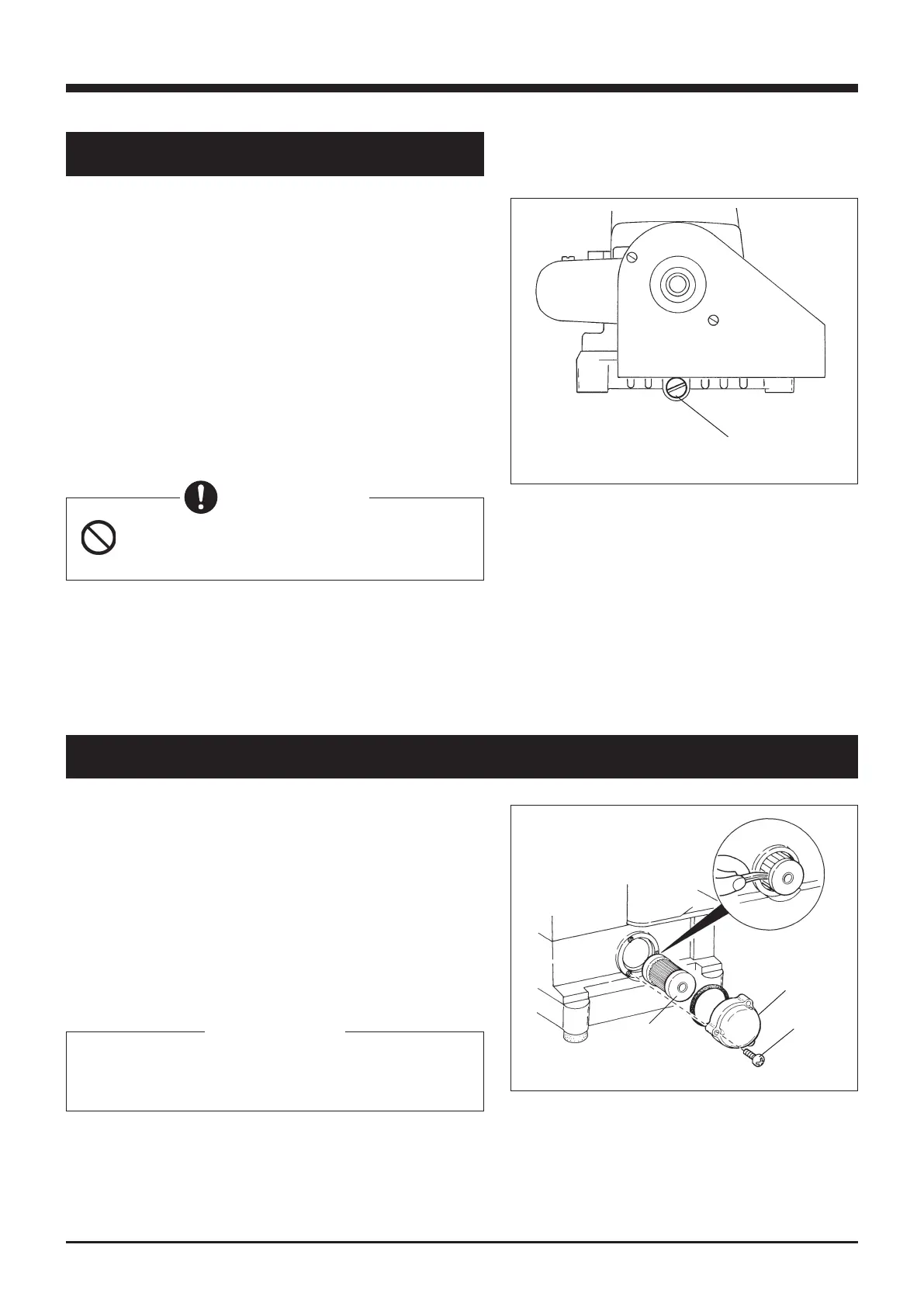

4. Lubrication
4.3 Changing oil
4.4 Checking and replacing the oil filter
Period of changing oil
When using a new machine, change lubricating oil after
running a machine for 200 hours (for about one month).
After that, change oil once or twice a year.
Procedure for changing oil
(1) Remove the belt cover. (Refer to P.7.)
(2) Remove the V-belt from the motor pulley. (Refer to
P.7.)
(3) Remove the machine from the machine table.
(4) Set a container for receiving oil under the screw ①.
(5) After removing the screw ①, oil is drained.
◆ If the oil 󳞛lter ② is clogged with dust, lubrication can-
not be done properly.
◆ Remove the oil 󳞛lter cap ③ and the oil 󳞛lter ② to
check them every six months. If clogged or cracked,
clean or replace the oil 󳞛lter.
◆ If oil splashes from the nozzle insuf󳞛ciently or includes
many bubbles though oil is suf󳞛ciently kept, check or
replace the oil 󳞛lter.
Fig. 4-5
(6) Reinstall the screw ①.
(7) Change oil. (Refer to “4.2 Lubricating” on P.10.)
(8) Reinstall the machine on the machine table.
(9) Hang the V-belt on the motor pulley and reinstall the
belt cover. (Refer to P.7.)
Fig. 4-6
Be careful not to stain the V-belt and the machine
pulley with oil.
When loosening the screw ④, oil in the oil filter ② leaks
out.
ÎÏÔÉÃÅ
ÁÔÔÅÎÔÉÏÎ
