2. Installation
VE2700-8
2.6 Belt cover
(1) Install the belt cover ⑤. (Fig. 2-10)
(2) For the table top type, 󳞛x the belt cover (lower) ⑥ on
the machine table. (Fig. 2-12)
Fig. 2-10
Fig. 2-11
Be sure to install the belt cover to prevent the operator
from injury and a material from being caught by the belt.
Table top type

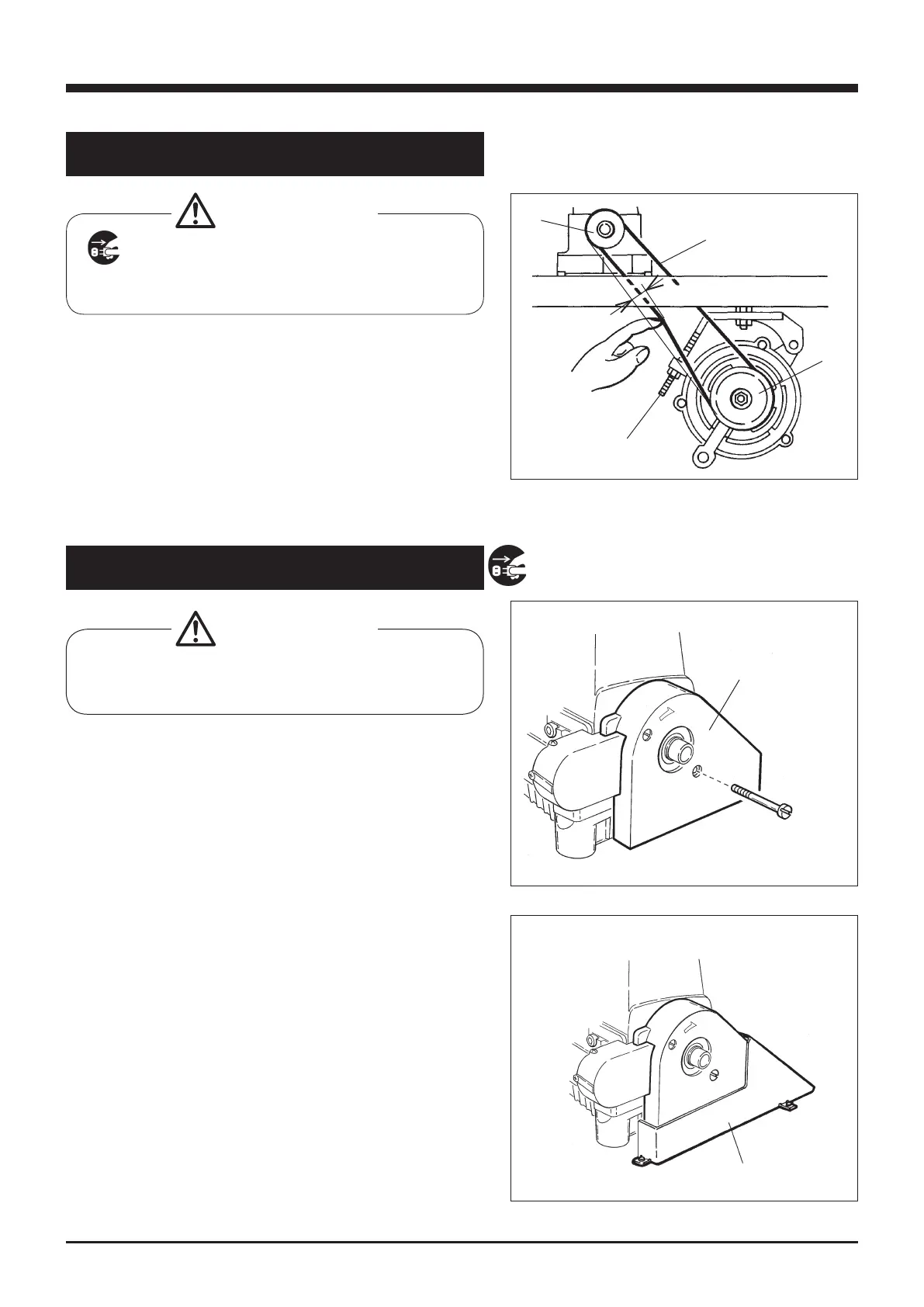

2.5 Hanging the belt
Use a V-belt of M-type.
(1) Hang the belt ① on the machine pulley ②, and then
on the motor pulley ③ while turning the machine pul-
ley.
(2) Adjust the belt tension so that the belt has a slack of
10 to 20 mm when its center is pushed with 10N.
(3) Lock the motor with the adjusting bar ④.
Fig. 2-9
Before performing this work, ALWAYS turn the
power switch OFF and check that the motor has
already stopped.
ÃÁÕÔÉÏÎ
⑤
⑥
①
②
③
④
Push 10N
10-20 ㎜
ÃÁÕÔÉÏÎ
