12
VE2700-8

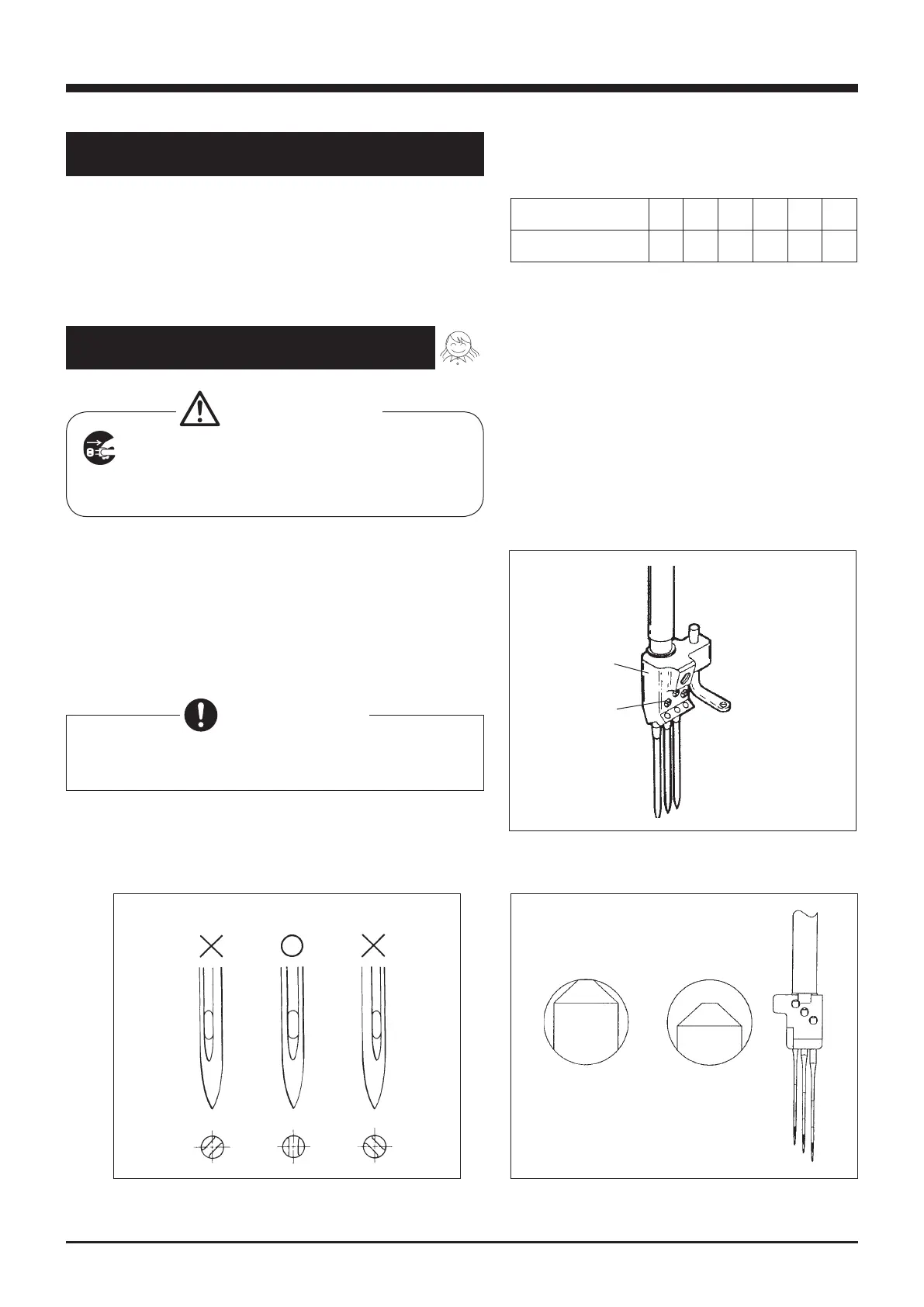

5.1 Needle system
5.2 Installing the needles
Use UY×128GAS (UY128GAS).
Select a proper needle in size depending on the thickness
and type of material.
(1) Loosen the screws ① with a screwdriver. (Fig. 5-1)
(2) Remove an old needle with a pair of tweezers.
(3) Insert a new needle into the needle clamp ② as deep
as possible with its scarf facing the right back.
(Figs. 5-2, 5-3)
(4) Tighten the screws ① with a screwdriver.
Table 3
Fig. 5-1
Fig. 5-3Fig. 5-2
Tighten the screws ① with a tightening torque of 0.6
N･m.
Japanese standard 9 10 11 12 13 14
Metric standard 65 70 75 80 85 90
5. Proper operation
ÁÔÔÅÎÔÉÏÎ
②
①
OK! NO
NO OK! NO
Before performing this work, ALWAYS turn the
power switch OFF and check that the motor has
already stopped.
ÃÁÕÔÉÏÎ
To Next Page
