PRODUCT OVERVIEW
14 YM Series Operation Manual
Right Side (Viewed from
Flywheel) - 3YM20

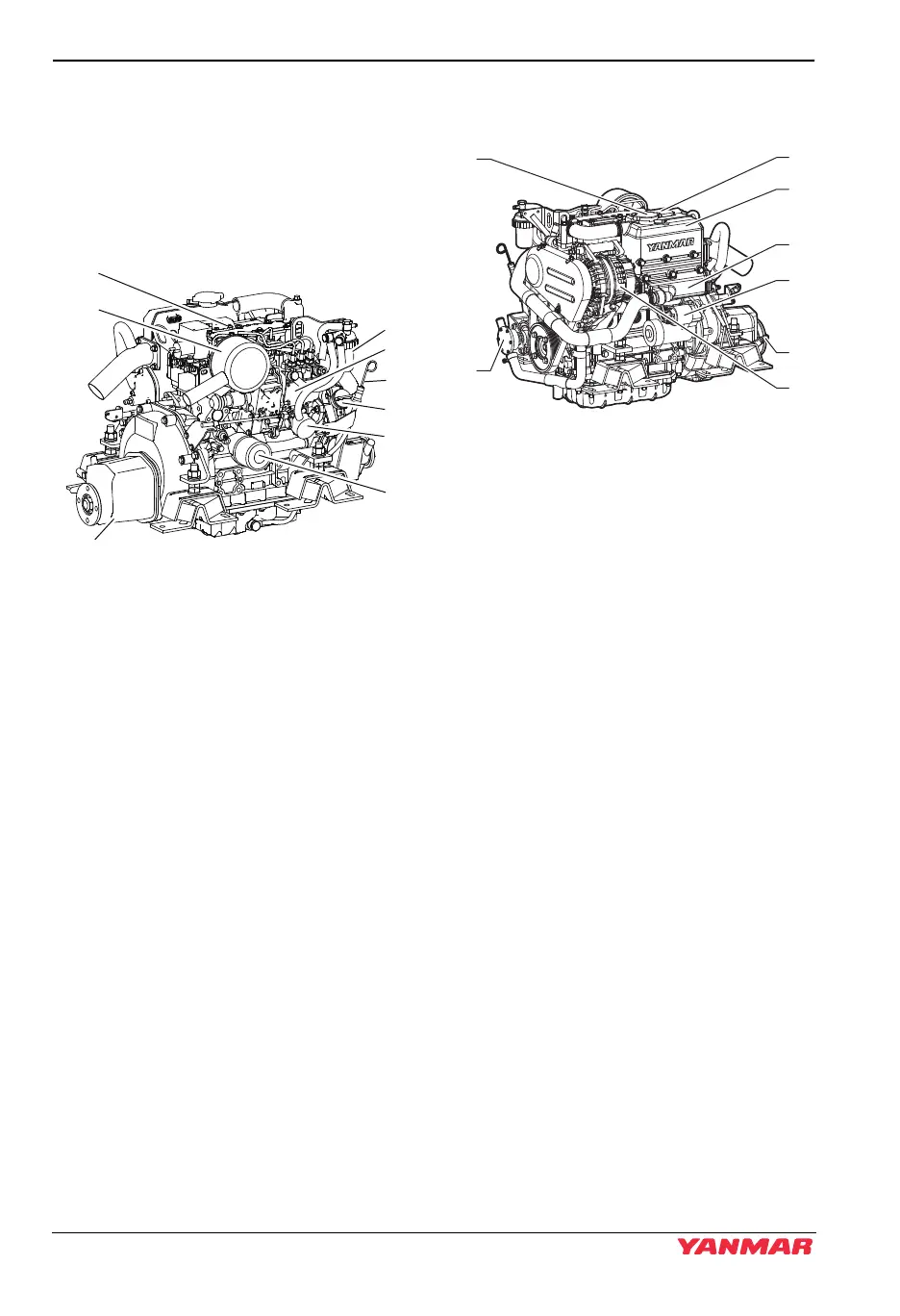

Figure 3 and Figure 4 illustrate a typical
version of a 3YM20 engine. Your engine
may have different equipment from that
illustrated.
Figure 3
1 – Intake Silencer (air cleaner)
2 – Intake Manifold
3 – Fuel Filter
4 – Fuel Injection Pump
5 – Engine Oil Dipstick
6 – Engine Oil Filler Cap
7 – Fuel Feed Pump
8 – Engine Oil Filter
9–Marine Gear
Left Side (Viewed from Flywheel)
-3YM20
Figure 4
1 – Seawater Pump
2 – Coolant Filler Cap
3 – Engine Nameplate (on rocker
arm cover)
4 – Coolant Tank / Heat Exchanger
5 – Exhaust Manifold
6 – Starter Motor
7 – Shift Lever
8–Alternator
1
2
3
4
5
6
7
8
9
0004783
051099-00X00
1
23
4
5
6
7
8
