PRODUCT OVERVIEW
18 YM Series Operation Manual
CONTROL EQUIPMENT
The equipment in the control room makes remote control operation possible. It consists of
the instrument panel, which is connected to the engine by a wire harness, and the remote
control handle, which is connected by control cables to the engine control lever and
marine gear.
Instrument Panel
Equipment and Functions
The instrument panel is located at the helm. The following instruments enable you to start
or stop the engine and to monitor its condition during operation.

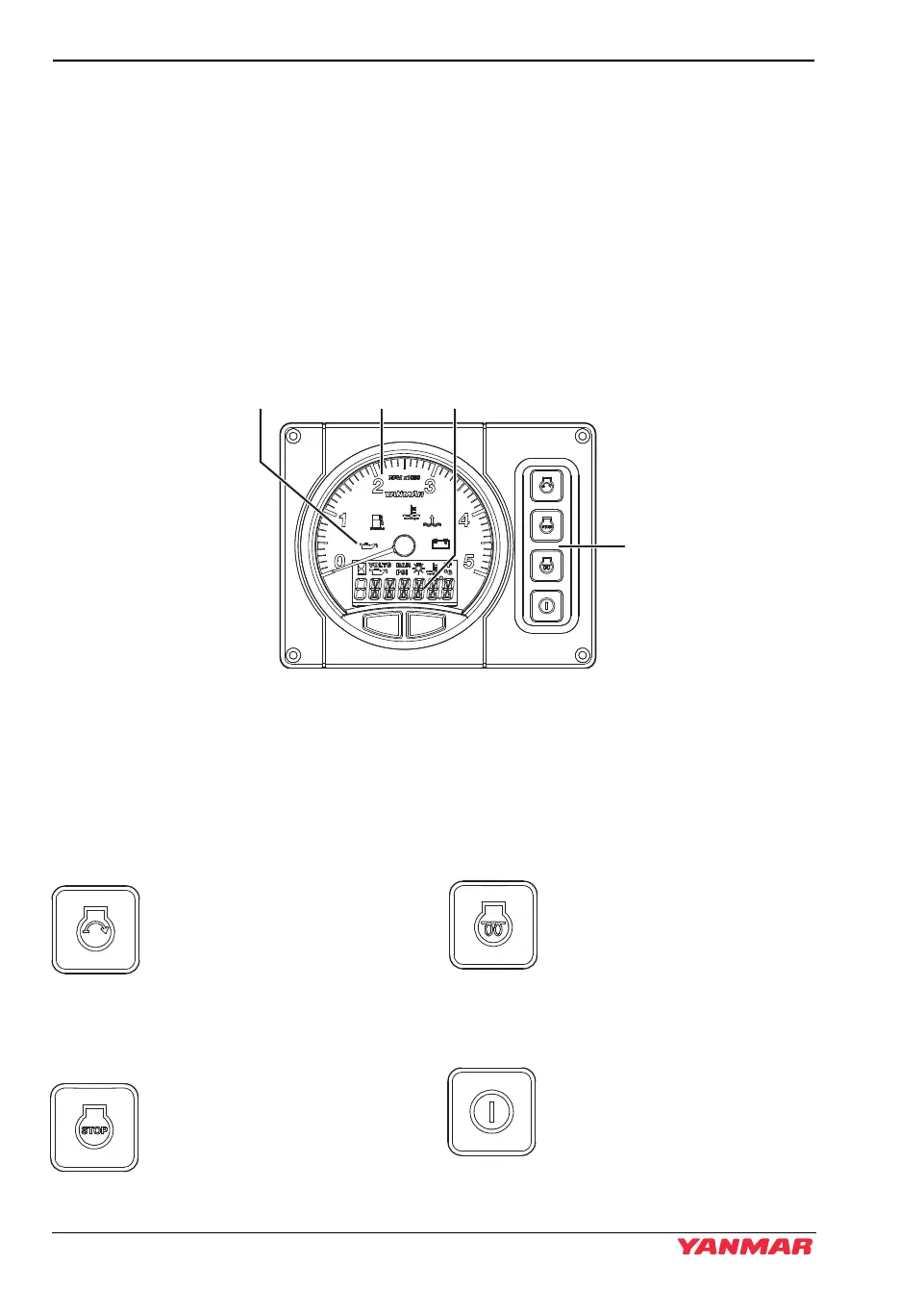

B20-Type
Figure 10
1 – Alarm lamps
2–Tachometer
3–LCD
4 – Switches (push-buttons)
Control panel switches
All switches are push-buttons.
Start switch
Pushing this switch operates
the starter and starts the
engine.
Stop switch
Pushing this switch stops the
engine.
Glow switch
Pushing this switch for the
specified time heats the glow
plug in the combustion
chamber. It becomes red-hot,
facilitating fuel ignition. This
assists starting in cold weather.
Power switch
Pushing this switch turns on or
off the power.
