PRODUCT OVERVIEW
YM Series Operation Manual 15
12/05
Right Side (Viewed from
Flywheel) - 3YM30(E)

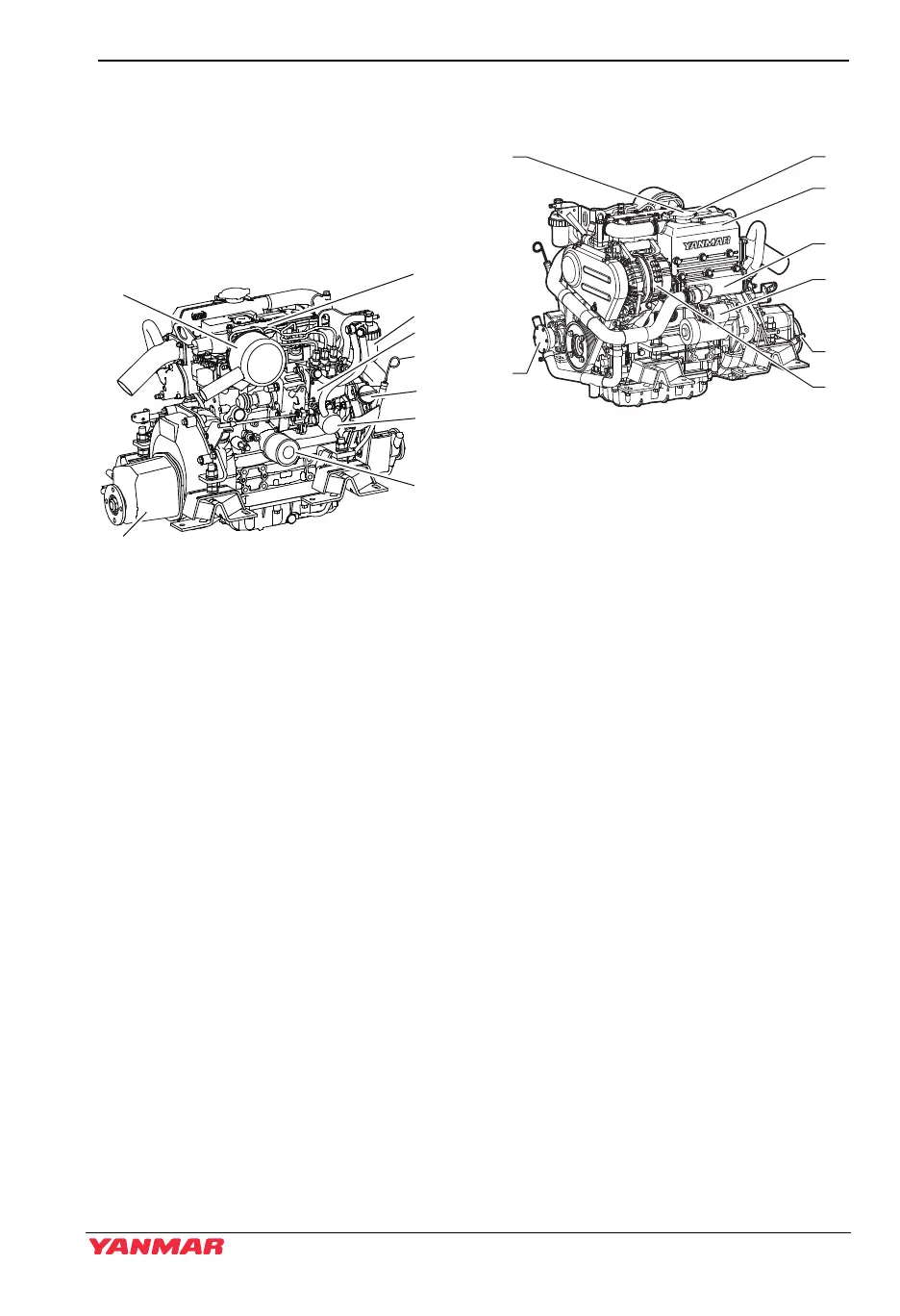

Figure 5 and Figure 6 illustrate a typical
version of a 3YM30(E) engine. Your
engine may have different equipment from
that illustrated.
Figure 5
1 – Intake Silencer (air cleaner)
2 – Intake Manifold
3 – Fuel Filter
4 – Fuel Injection Pump
5 – Engine Oil Dipstick
6 – Engine Oil Filler Cap
7 – Fuel Feed Pump
8 – Engine Oil Filter
9–Marine Gear
Left Side (Viewed from Flywheel)
- 3YM30(E)
Figure 6
1 – Seawater Pump
2 – Coolant Filler Cap
3 – Engine Nameplate (on rocker
arm cover)
4 – Coolant Tank / Heat Exchanger
5 – Exhaust Manifold
6 – Starter Motor
7 – Shift Lever
8–Alternator
