Step 2: Front Wall Assembly
Part 6
Remove lm from both sides of Left FB Side Panel and Right FB Side Panel.
H: Refer to pages 16 and 17 and apply top and bottom tape to Left FB Side Panel and Right FB Side Panel.
I: In the grooves of Posts and Door Posts slide Left FB Side Panel and Right FB Side Panel down so they rest in
the grooves of (1105) Front Wall Sill. Make sure the notch at the bottom is always on the right side of the panel.

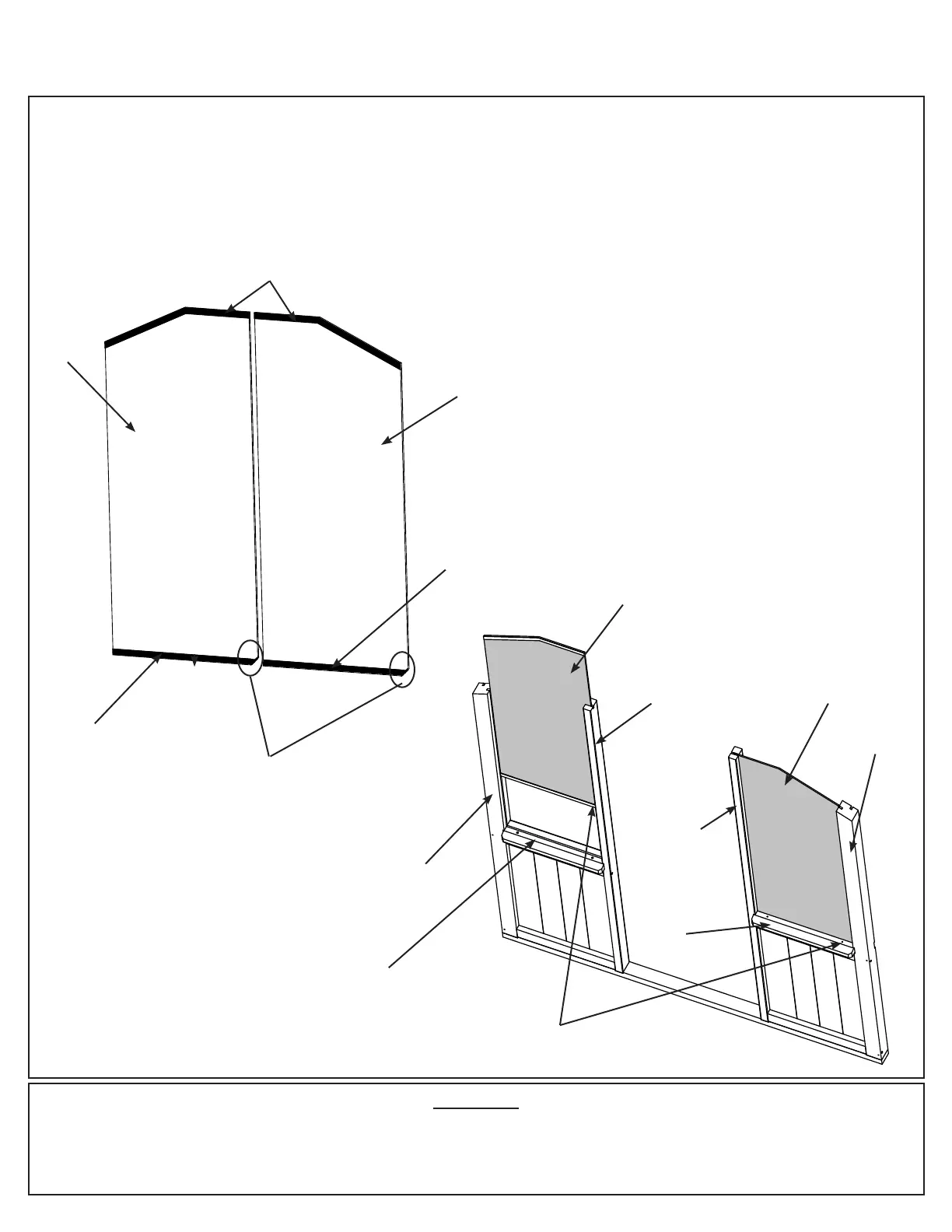

The UV coated side must be to the outside of the frame. (F2.13 and F2.14)
Components
1 x Left FB Side Panel
1 x Right FB Side Panel
Top Tape
Bottom Tape
Slide Polycarbonate Panel down and
along the grooves in th Left
Right Posts
Not e: NOTCH IS ALWAYS ON THE
RIGHT SIDE OF POLYCARB PANEL
Slide Polycarbonate Panel down and
along the grooves in th Left
Right Posts
Not e: NOTCH IS ALWAYS ON THE
RIGHT SIDE OF POLYCARB PANEL
(1108) Left
Post
(1109) Right
Post
Left FB
Side
Panel
(1111) Left
Door Post
(1112) Right
Door Post
F2.14
F2.13
Left FB Side
Panel
Right FB
Side Panel
Top Tape
Right FB
Side Panel
Bottom Tape
Bottom
Tape
Note: Notches
always at the
bottom right of
each panel
Notches on
this side
Note: UV
Coating to the
outside of the
frame
(1105) Front
Wall Sill
(1105) Front
Wall Sill
Outside View
