Place VENT ROOF PEAK ASSEMBLY
tight to PEAK SPACER and
LEFT/RIGHT POSTS
Place VENT ROOF PEAK ASSEMBLY
tight to PEAK SPACER and
LEFT/RIGHT POSTS

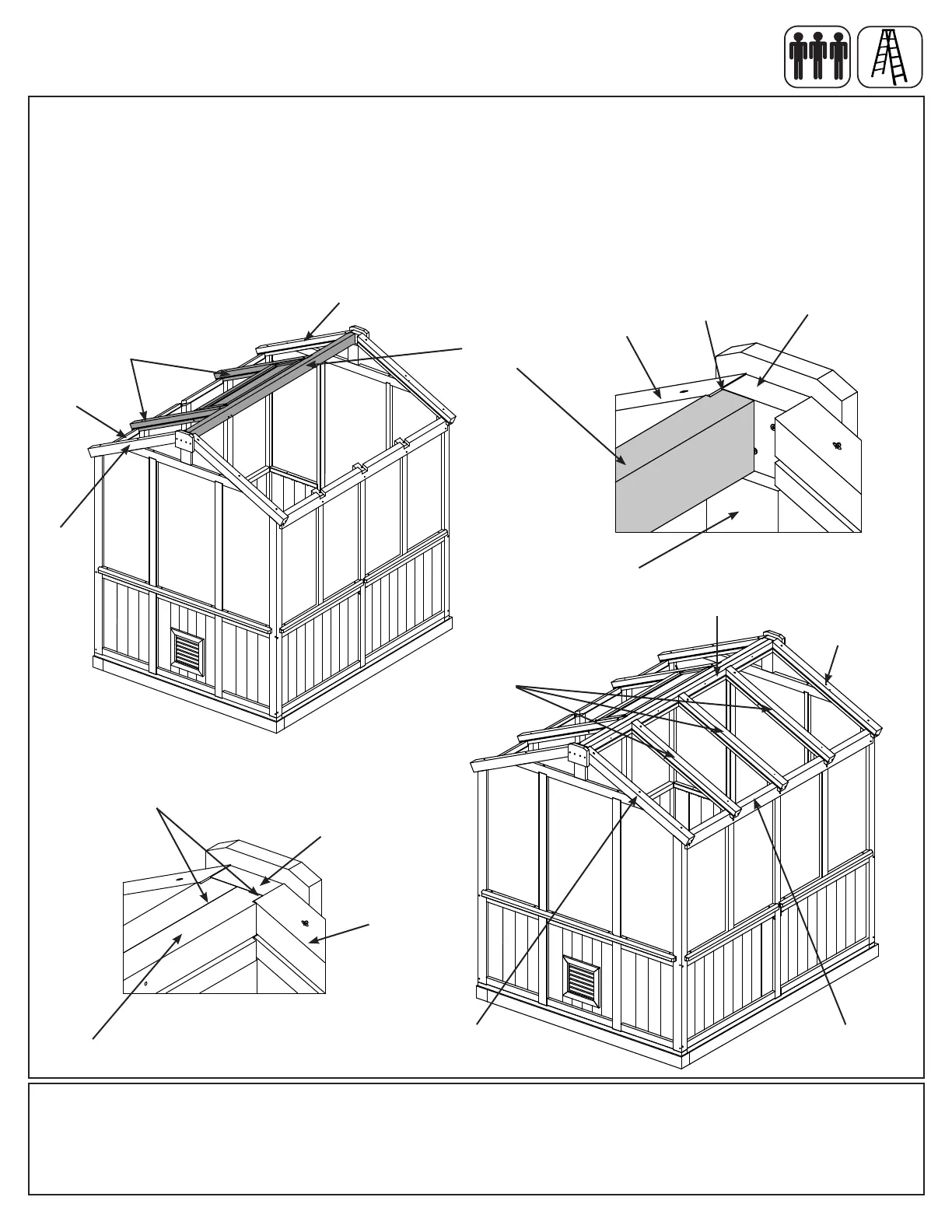

Step 14: Attach Roof Assemblies to Frame
Part 1
A: With adult helpers lift Vent Roof Peak Assembly over frame and place (1124) Vent Roof Peak on (1121)
Upright Insides, tight to (1184) Peak Spacer, (1115) Right Roof Rafter and (1116) Left Roof Rafter. (1114)
Middle Roof Rafters sit in notches of (1125) Side Wall Top. Have one person hold assembly in place until
secure. (F14.1 and F14.2)
B: Repeat Step A for Roof Peak Assembly. (1123) Roof Peak placed on (1121) Upright Insides, tight to (1184)
Peak Spacer, (1115) Right Roof Rafter and (1116) Left Roof Rafter. (F14.3 and F14.4)
Place ROOF PEAK ASSEMBLY
tight to PEAK SPACER and
LEFT/RIGHT ROOF RAFTERS
Place ROOF PEAK ASSEMBLY
tight to PEAK SPACER and
LEFT/RIGHT ROOF RAFTERS
(1121)
Upright
Inside
(1115) Right
Roof Rafter
(1116)
Left Roof
Rafter
(1184) Peak
Spacer
(1114) Middle
Roof Rafter
(1124) Vent
Roof Peak
(1125) Side
Wall Top
(1123) Roof Peak
Tight
F14.1
F14.2
F14.3
F14.4
(1115) Right
Roof Rafter
(1116)
Left Roof
Rafter
(1115) Right
Roof Rafter
(1116) Left
Roof Rafter
(1125) Side
Wall Top
(1114) Middle
Roof Rafter
(1184) Peak
Spacer
Tight
To Next Page
