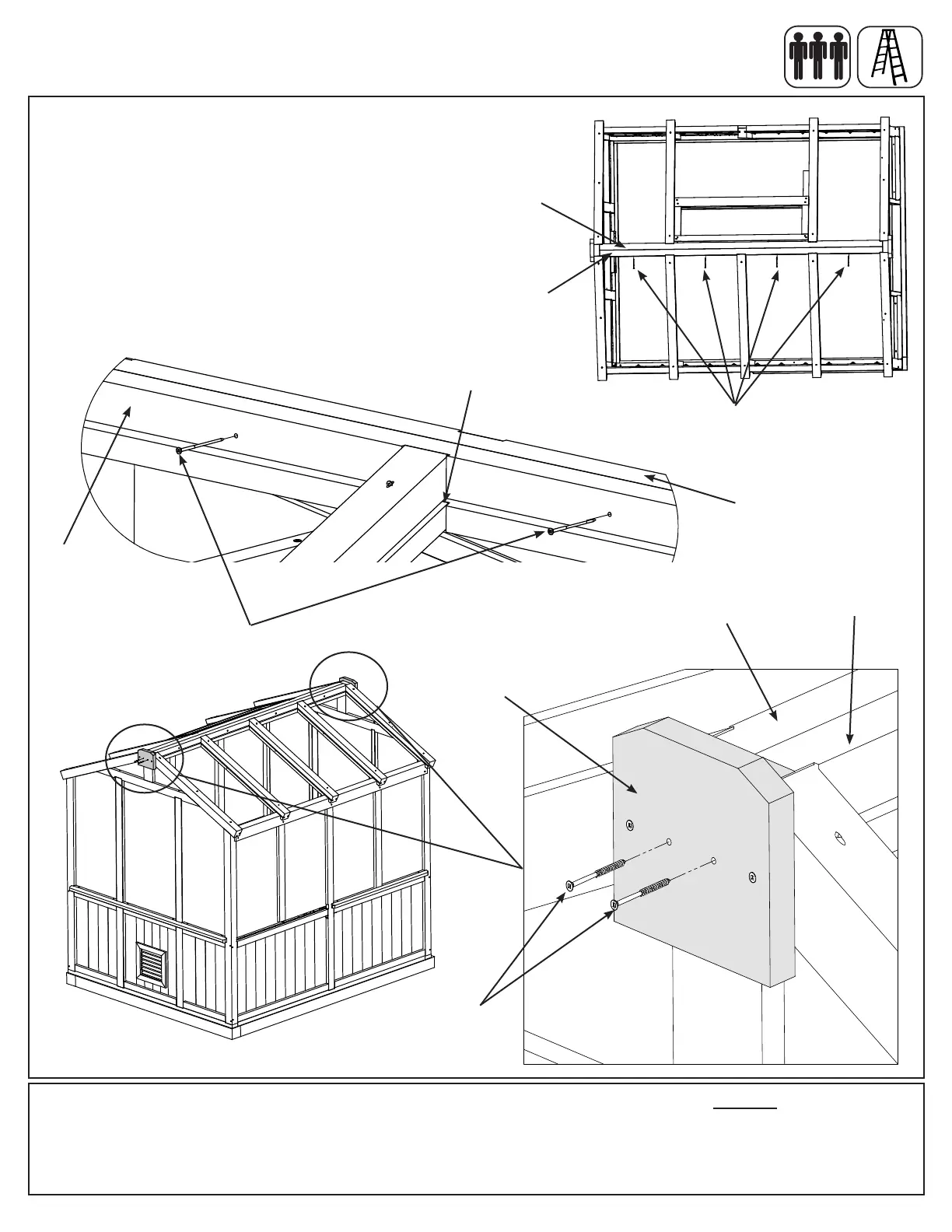

Step 14: Attach Roof Assemblies to Frame
Part 2
Use (1188) Guide Spacer to make sure grooves
in Peak Assemblies are lined up with grooves in
Rafters.
C: Secure Roof Peak Assembly to Vent Roof Peak
Assembly with four #8 x 3” Wood Screws. (F14.5 and
F14.6)
D: Connect each (1184) Peak Spacer to (1123) Roof
Peak and (1124) Vent Roof Peak with two #10 x 4”
Wood Screws per end. (F14.7 and F14.8)
#8 X 3” Wood Screws
Connects ROOF PEAK ASSEMBLY to
VENT ROOF PEAK ASSEMBLY
#8 X 3” Wood Screws
Connects ROOF PEAK ASSEMBLY to
VENT ROOF PEAK ASSEMBLY
#10 X 4” Wood Screws
Connects MID ROOF RAFTERS to
VENT ROOF PEAK
#10 X 4” Wood Screws
Connects MID ROOF RAFTERS to
VENT ROOF PEAK
(1124) Vent
Roof Peak
(1123)
Roof
(1184) Peak
Spacer
Hardware
4 x #8 x 3” Wood Screw
4 x #10 x 4” Wood Screw
#8 x 3” Wood Screw
#10 x 4”
Wood Screw
#8 x 3” Wood Screw
(1124) Vent
Roof Peak
(1124) Vent
Roof Peak
(1123)
Roof
F14.5
F14.6
F14.7
F14.8
Grooves to line
up with use of
Guide Spacer
To Next Page
