Yardistry YM12842 - Step 3: Back Wall Assembly

28 support@yardistrystructures.com
#10 X 4” Wood Screws
Connects BACK BASE to RIGHT AND
LEFT POSTS
#10 X 4” Wood Screws
Connects BACK BASE to RIGHT AND
LEFT POSTS
#10 X 4” Wood Screws
Connects BACK BASE to RIGHT AND
LEFT POSTS
Hardware
Step 3: Back Wall Assembly
Part 1

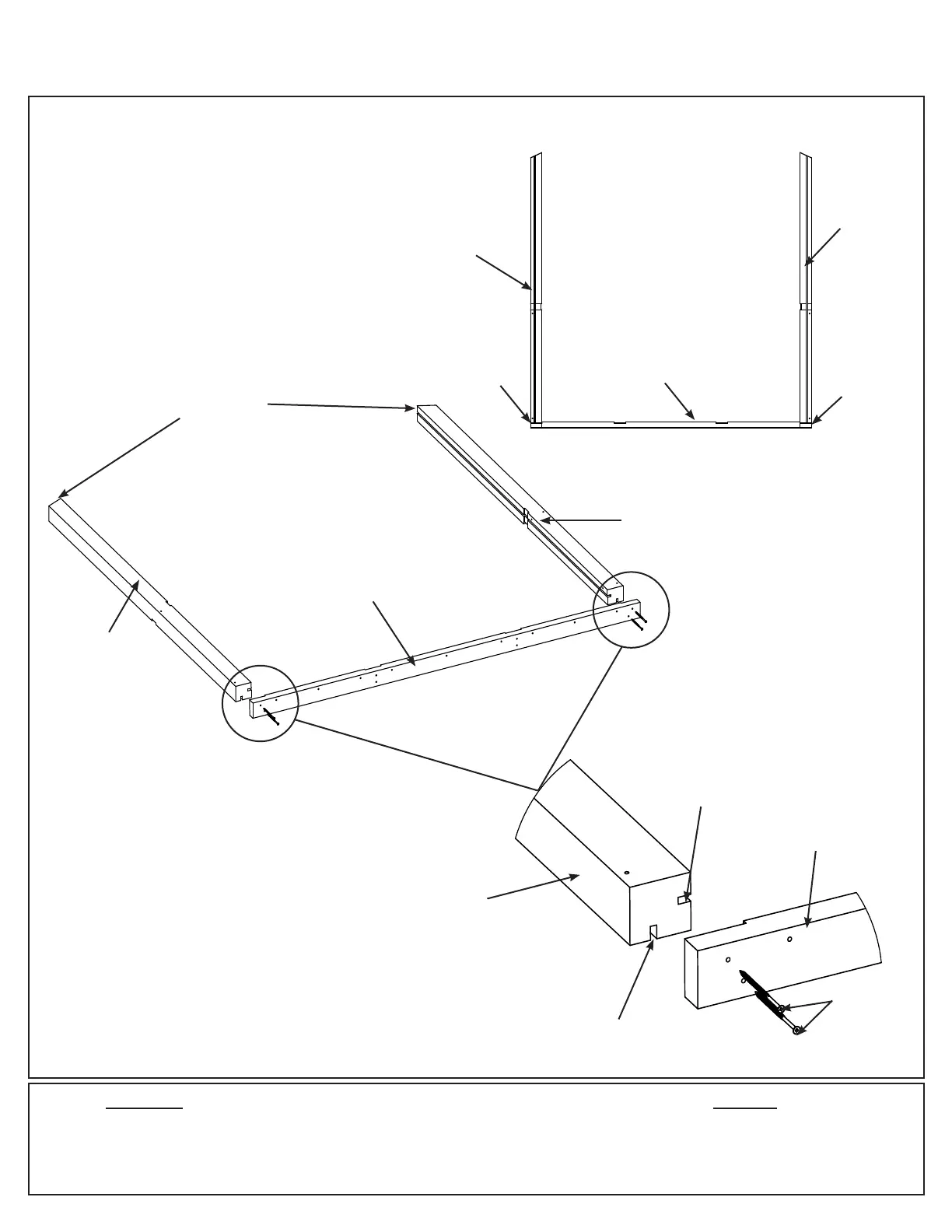

A: At the bottom of one (1108) Left
Post and one (1109) Right Post attach
one (1120) Back Base with two #10 x
4” Wood Screws per post. Make sure
grooves in posts are facing inwards

ends of (1120) Back Base. (F3.1, F3.2
and F3.3)
F3.1
F3.2
(1109)
Right
Post
(1108) Left
Post
Top
Bottom
(1120) Back Base
Wood Parts
1 x (1108) Left Post
1 x (1109) Right Post
1 x (1120) Back Base
4 x #10 x 4” Wood Screw
(1109)
Right
Post
(1108) Left
Post
F3.3
#10 x 4”
Wood Screw
Flush
Flush
Post
Grooves face
inwards
Grooves face
to the back
(1120) Back Base
(1120) Back Base
Notice
orientation
of angles
