Step 16: Attach Single Spring Window Opener
A: Follow the manufacturer’s supplied
instruction for assembling the Single Spring
Window Opener. Note the opener is in the
closed position prior to attaching to the unit.
(F16.1)
B: Insert pin in B hole of the push rod.
(F16.5)
C: From inside the assembly, centre Single
Spring Window Opener on (1170) Vent Roof
Panel so it is aligned with (1127) Vent Roof
Rafter. Attach Window Brace A & B to (1187)
Vent Roof Panel Block and Frame Bracket
to (1128) Bottom Vent Block with two #10 x
1-1/4” Pan Screws per brace. Braces should
be in alignment. (F16.2, F16.3 and F16.4)

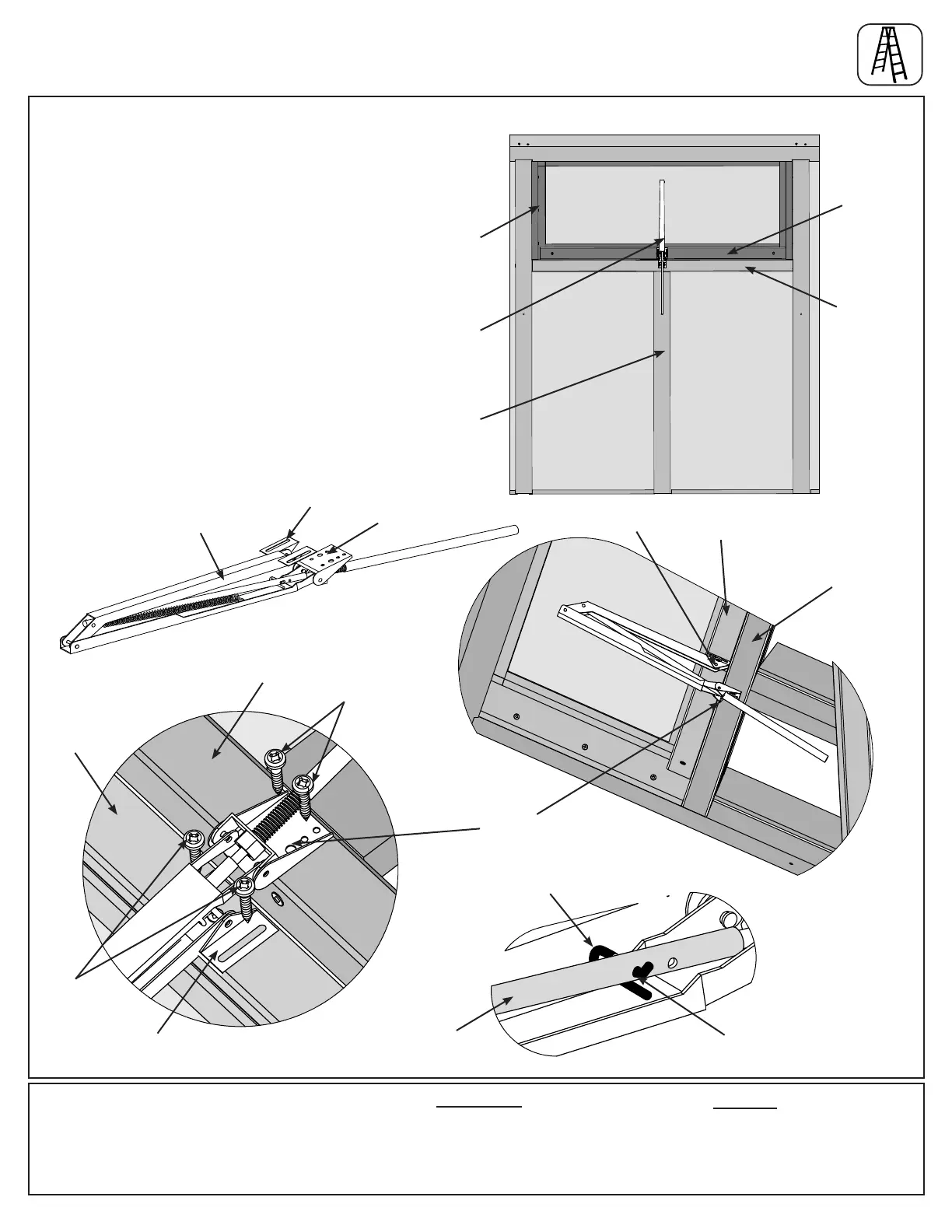

STEP A
Follow the manufacturer’s supplied instruction for assembling the Single Spring Window Opener.
(NOTE: Window Opener is in the closed postion prior to attaching to unit)
(1170) Vent
Roof Panel
(1127) Vent
Roof Rafter
(1187) Vent
Roof Panel
Block
Hardware
4 x #10 x 1-1/4” Pan Screw
Components
1 x Single Spring Window Opener
(1128) Bottom
Vent Block
F16.2
Single Spring
Window Opener
Single Spring
Window Opener
Inside View
Frame
Bracket
Window
Brace A &B
(1128) Bottom
Vent Block
(1128) Bottom
Vent Block
(1187) Vent Roof
Panel Block
(1187) Vent Roof
Panel Block
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
F16.3
F16.4
F16.5
Pin
Push Rod
Recommended to
use B hole
Frame
Bracket
Window
Brace A &B
Window
